Flex Plate

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

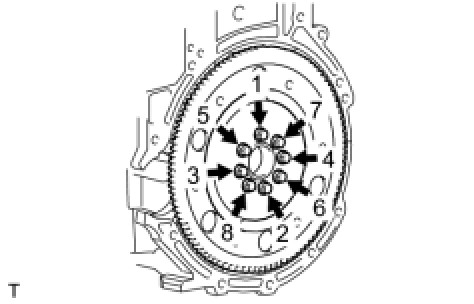

Install the front spacer, drive plate and rear spacer with the 8 bolts. uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
