Power Source (Except TMC Made)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Source (Except TMC Made): Notes

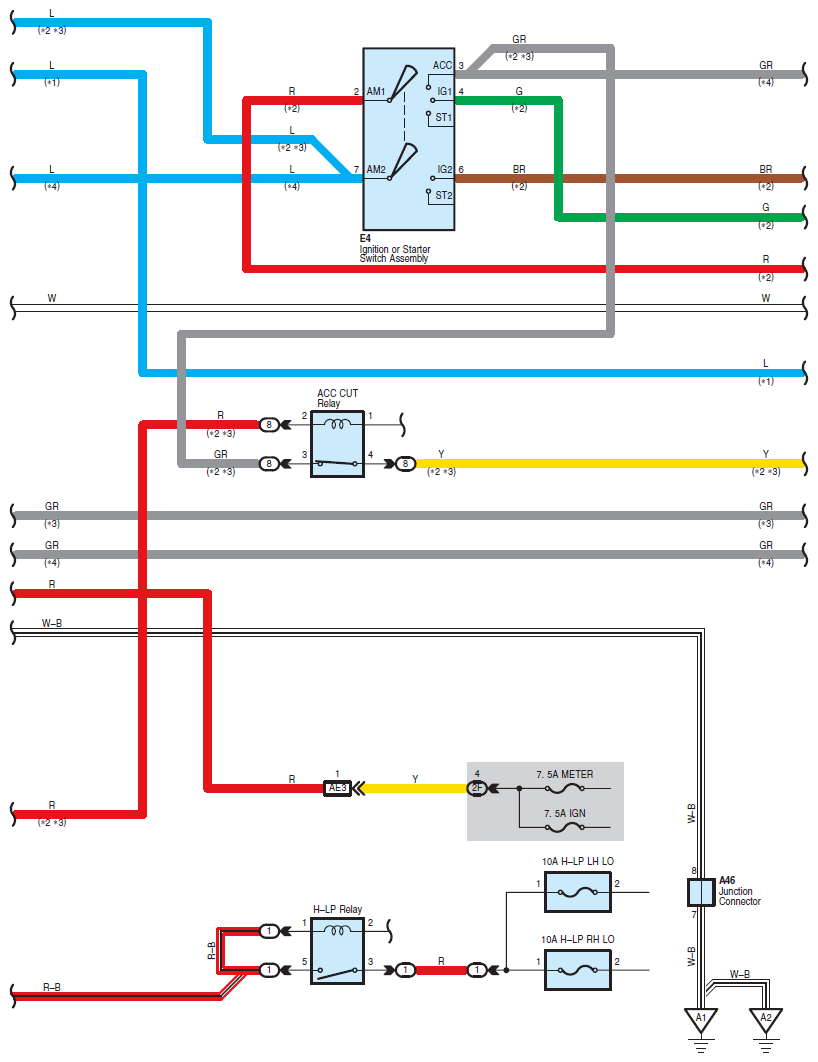

Fig 1: Power Source (Except TMC Made) - Circuit Diagram (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

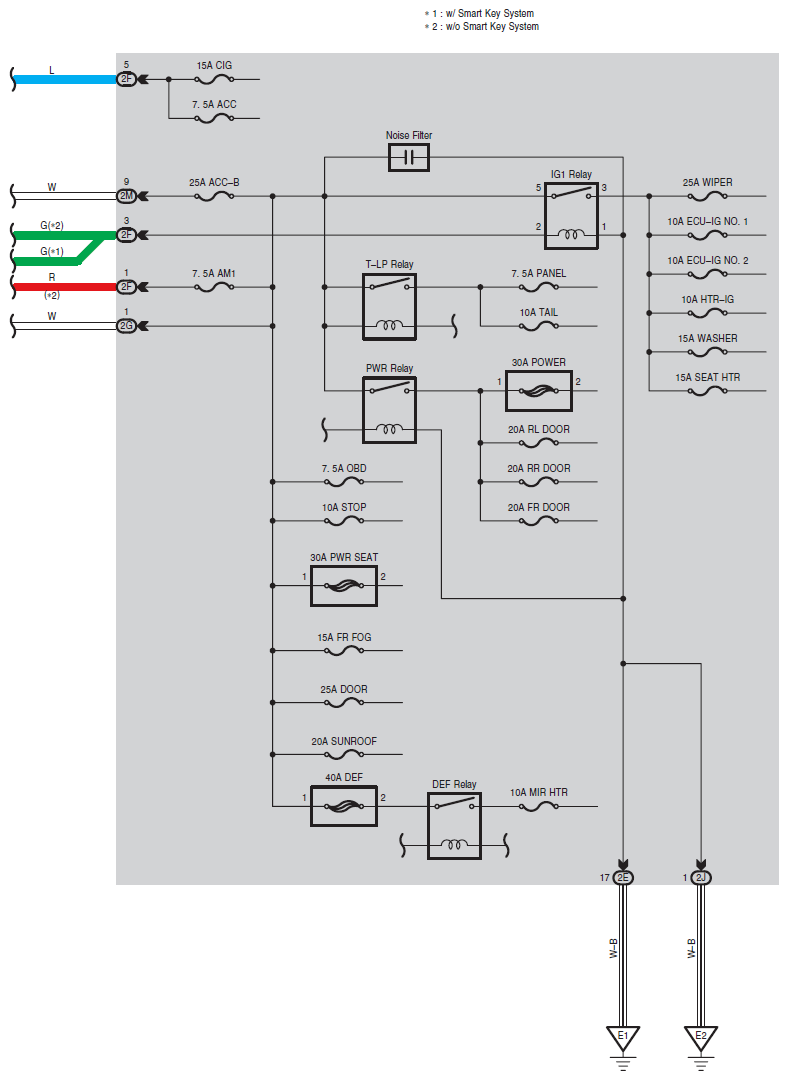

Fig 2: Power Source (Except TMC Made) - Circuit Diagram (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

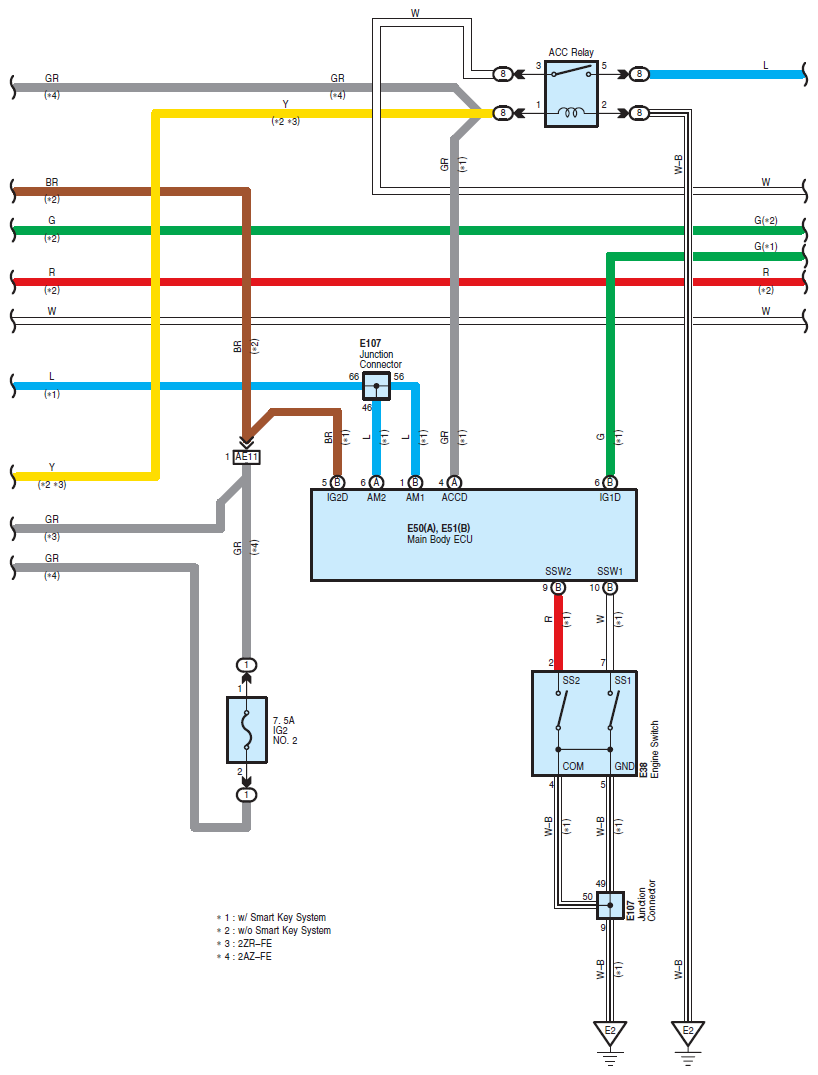

Fig 3: Power Source (Except TMC Made) - Circuit Diagram (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

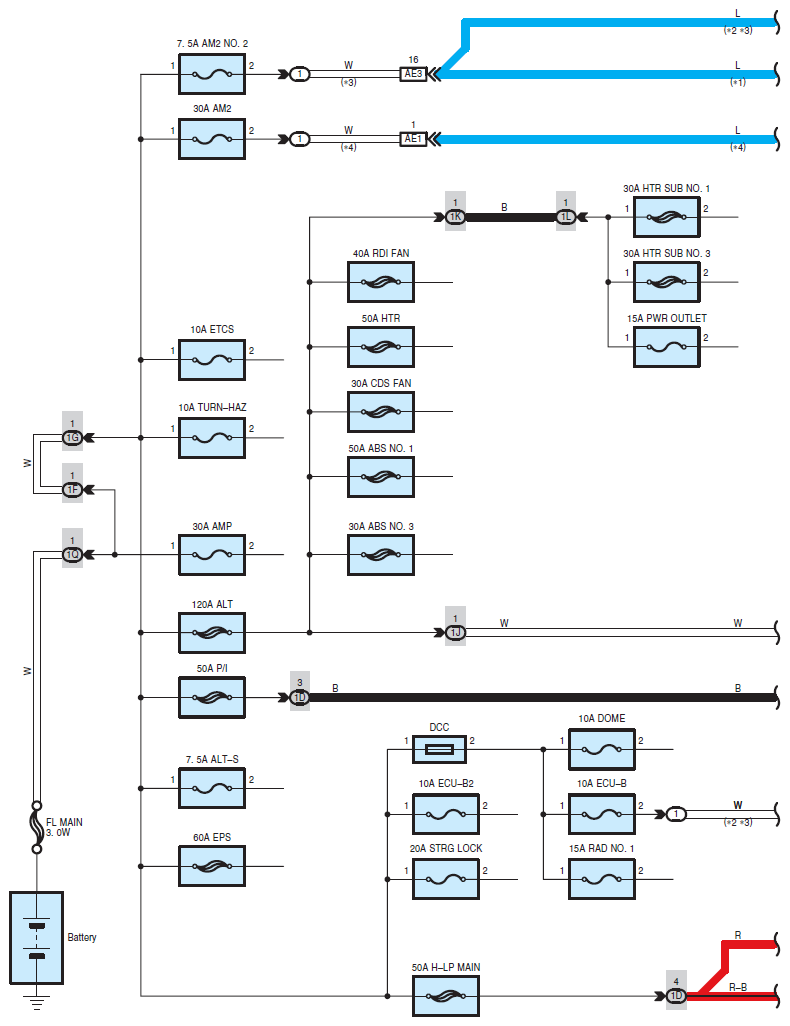

Fig 4: Power Source (Except TMC Made) - Circuit Diagram (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

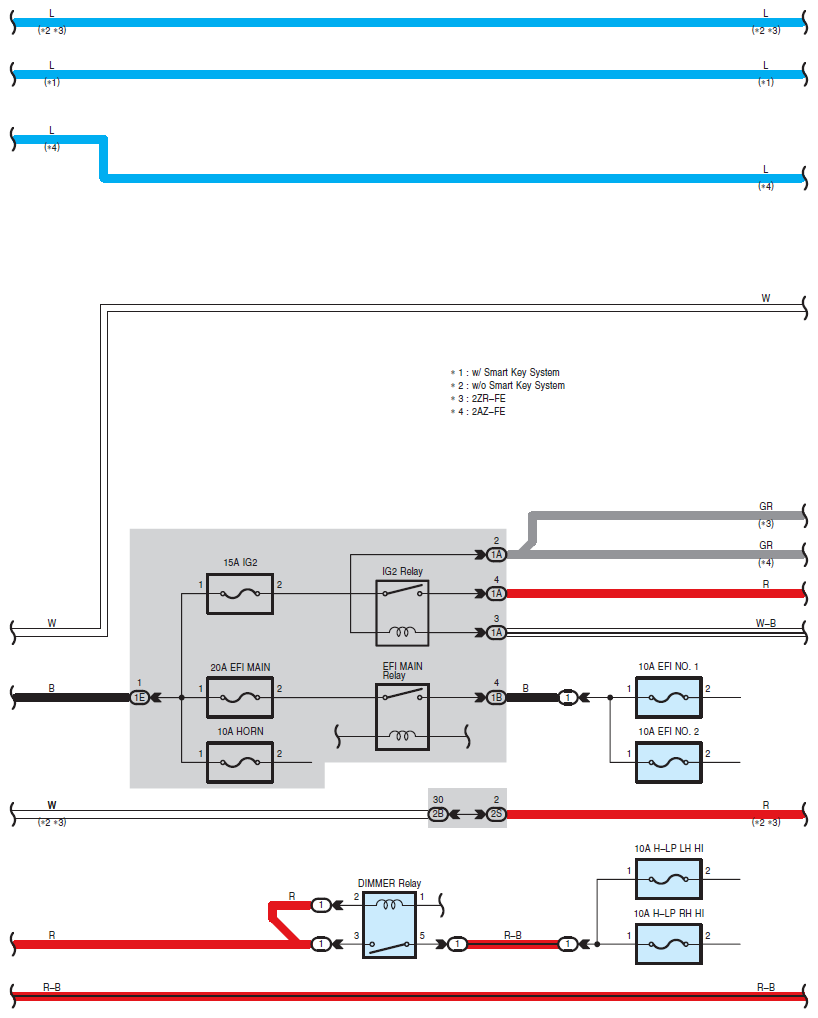

Fig 5: Power Source (Except TMC Made) - Circuit Diagram (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
