Brake Warning Light Remains ON: Wiring Diagram

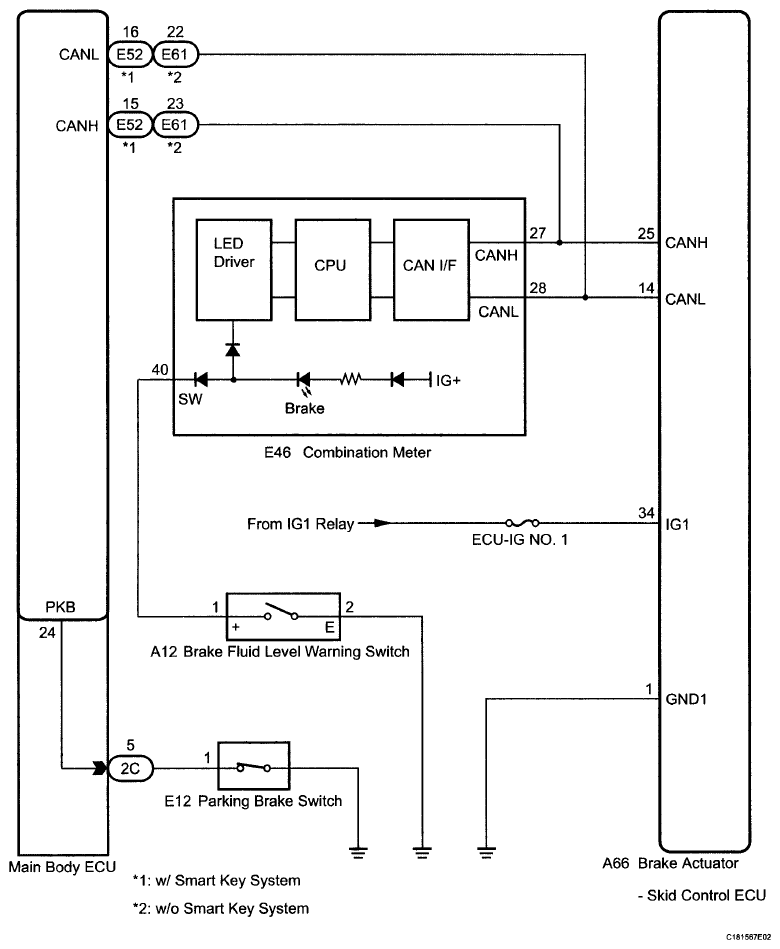

Fig 1: Brake Warning Light Remains On - Wiring Diagram
G06013978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
