System Diagram

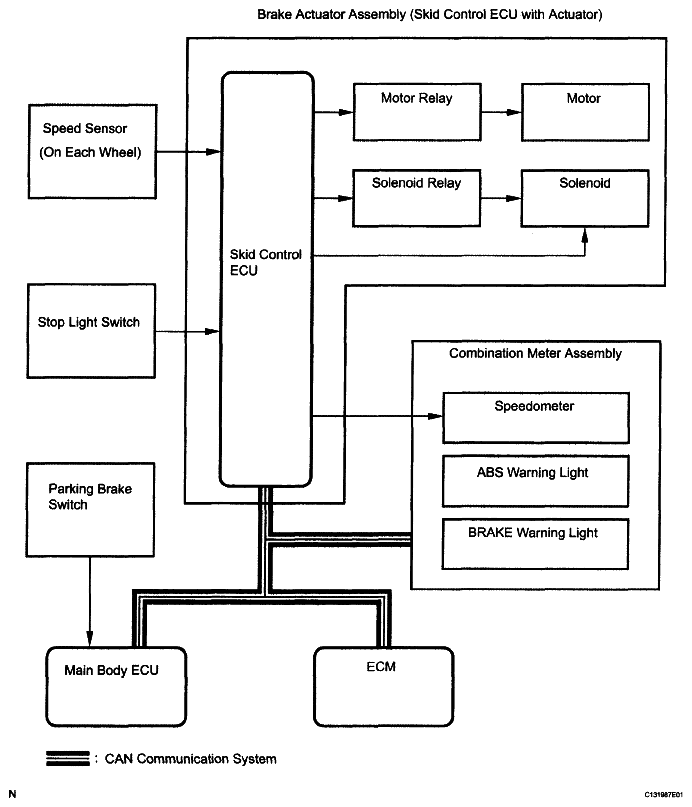

Fig 1: Anti-Lock Brake System Diagram
G04977888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION METHOD CHART

Transmitting ECU Receiving ECU Signals Communication method
Skid control ECU Combination meter
  • ABS warning light signal
  • BRAKE warning light signal
 CAN communication system
ECM Skid control ECU Shift position signal CAN communication system
