Engine Immobiliser System without Smart Key System: Notes

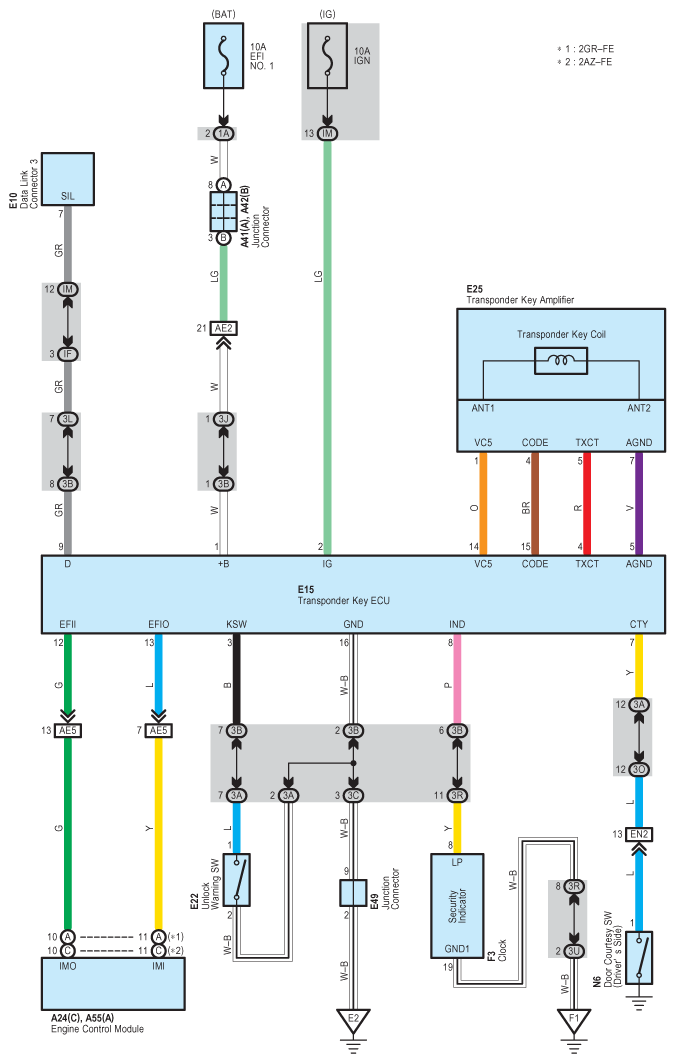

Fig 1: Engine Immobiliser System Without Smart Key System - Circuit Diagram
G07608044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
