Parts Location

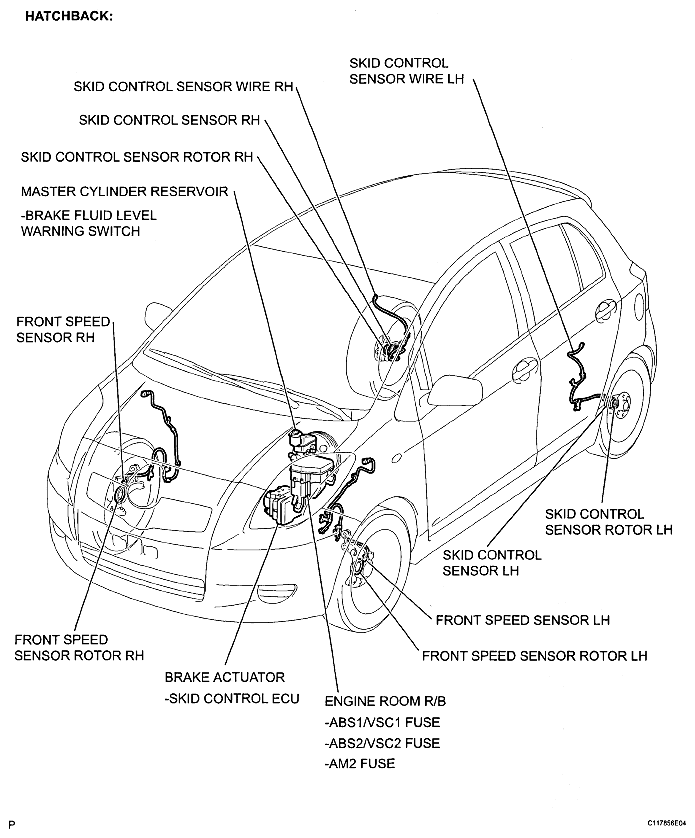

Fig 1: Identifying Anti-Lock Brake System Parts Location (1 Of 4)
G04832141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

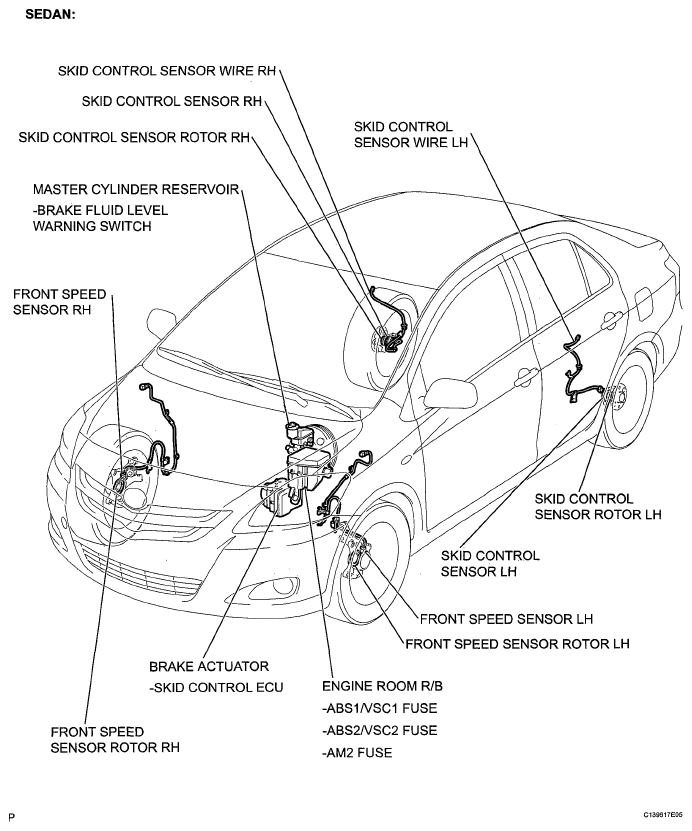

Fig 2: Identifying Anti-Lock Brake System Parts Location (2 Of 4)
G05591523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

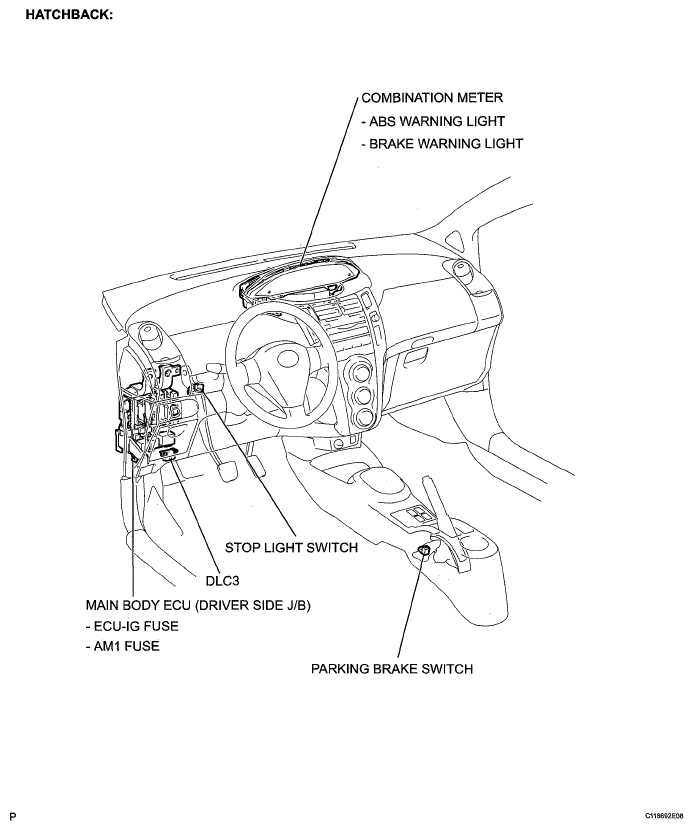

Fig 3: Identifying Anti-Lock Brake System Parts Location (3 Of 4)
G05591524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

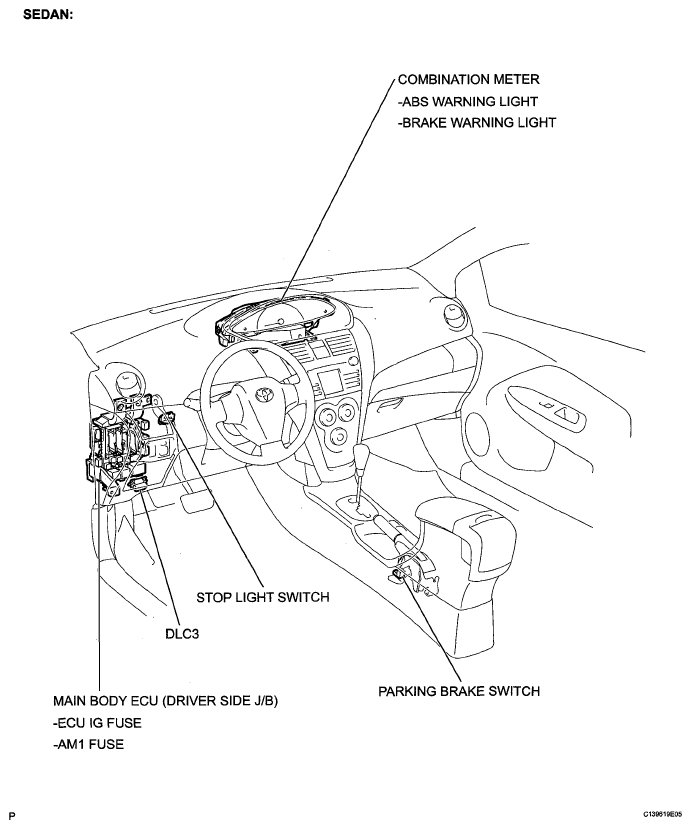

Fig 4: Identifying Anti-Lock Brake System Parts Location (4 Of 4)
G05591525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
