Knock Sensor: Components

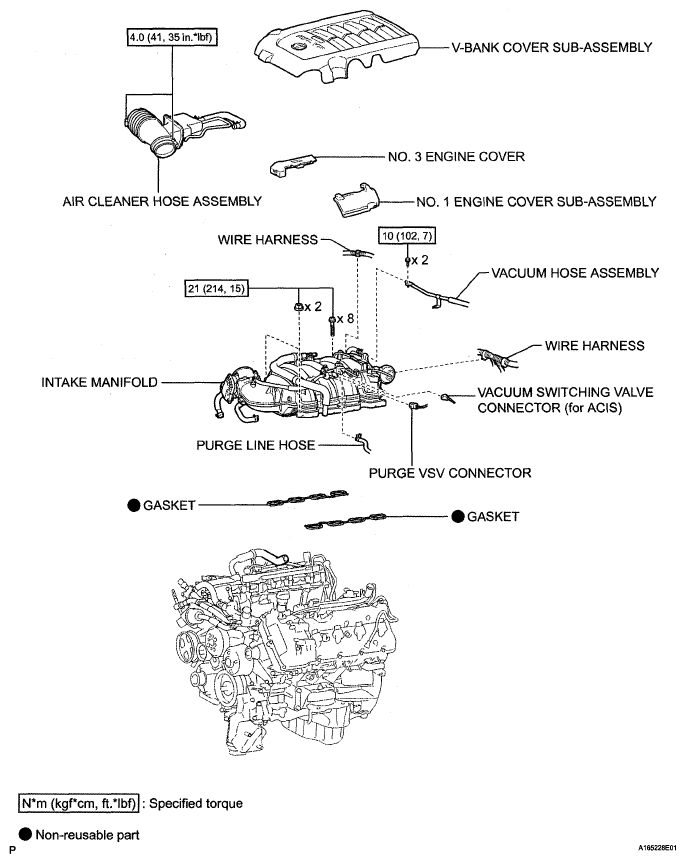

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Knock Sensor Replacement Components With Torque Specification (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

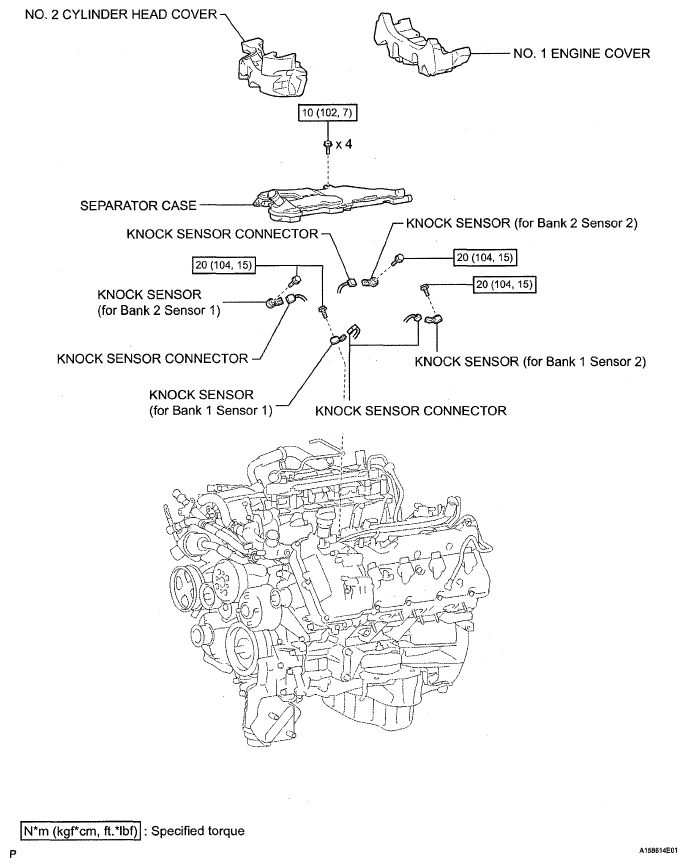

Fig 3: Identifying Knock Sensor Replacement Components With Torque Specification (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
