Crankshaft Position Sensor: Components

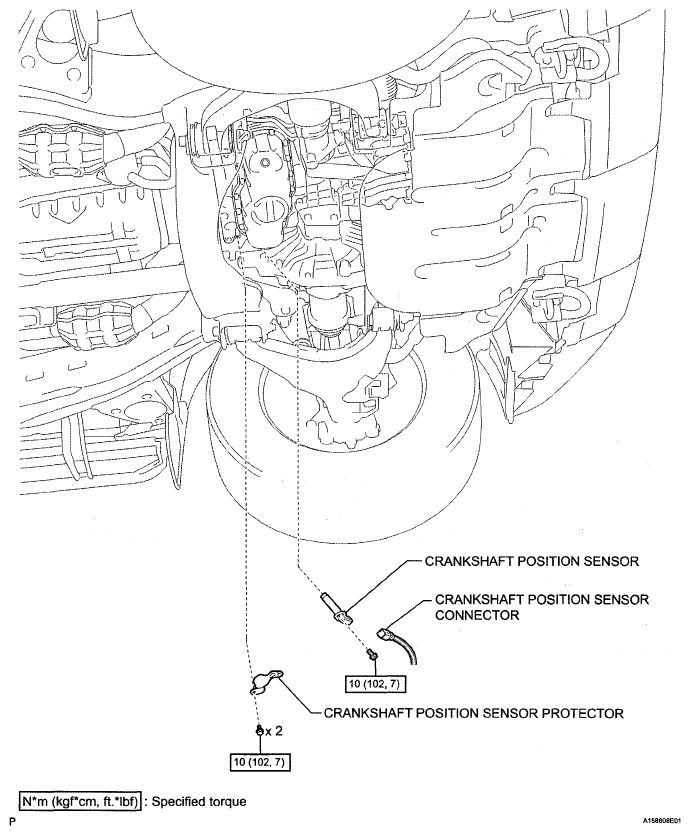

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specification
G05681727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
