Front Lower Suspension Arm: Components

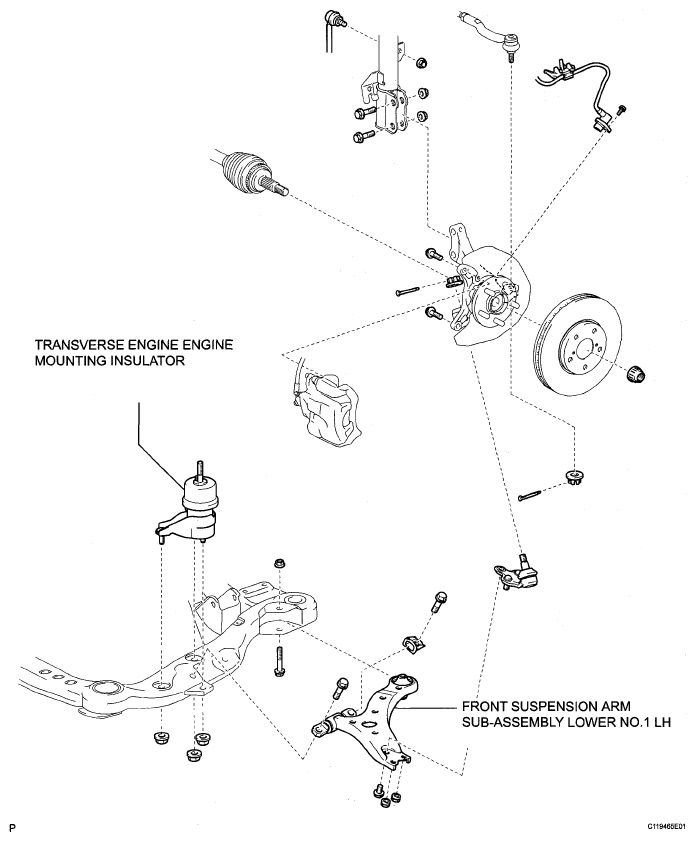

Fig 1: Identifying Front Lower Suspension Arm Components
G05139419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
