Mirror Heater: Notes

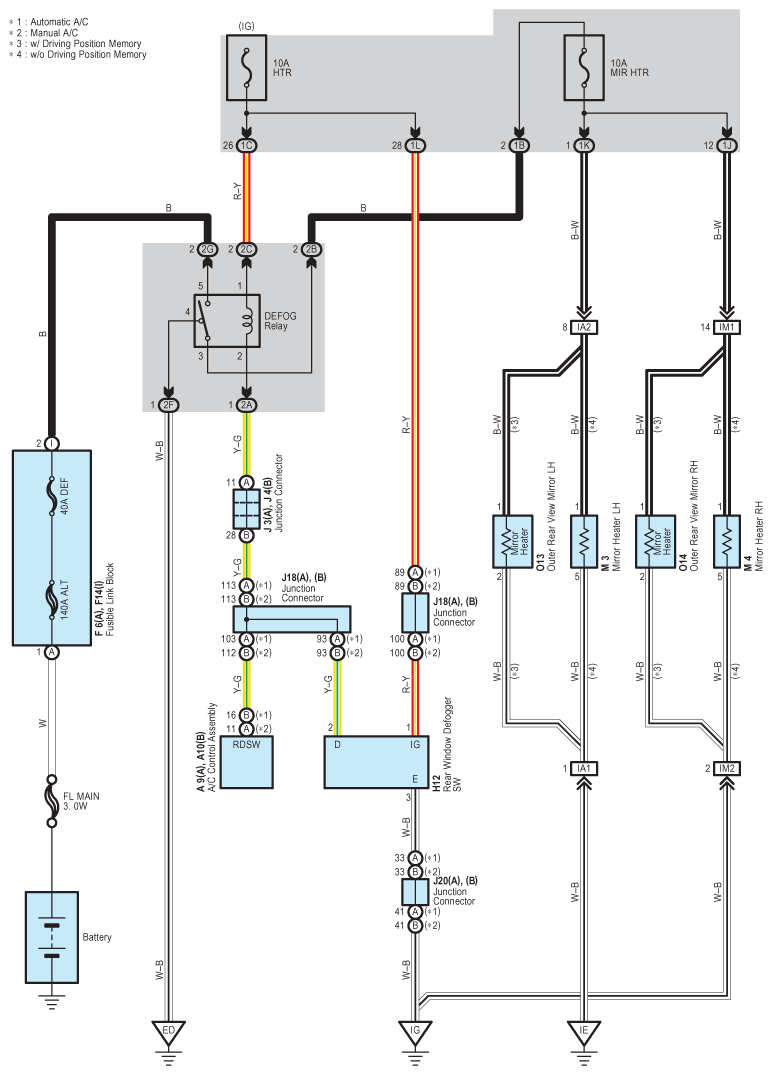

Fig 1: Mirror Heater - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
