System Diagram

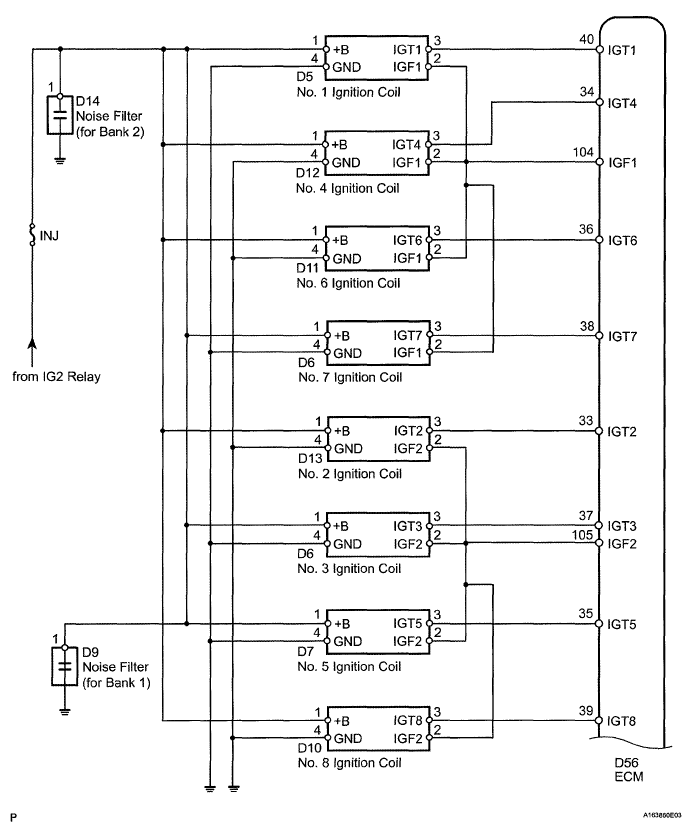

Fig 1: Ignition System Diagram (1 Of 2)
G05644721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

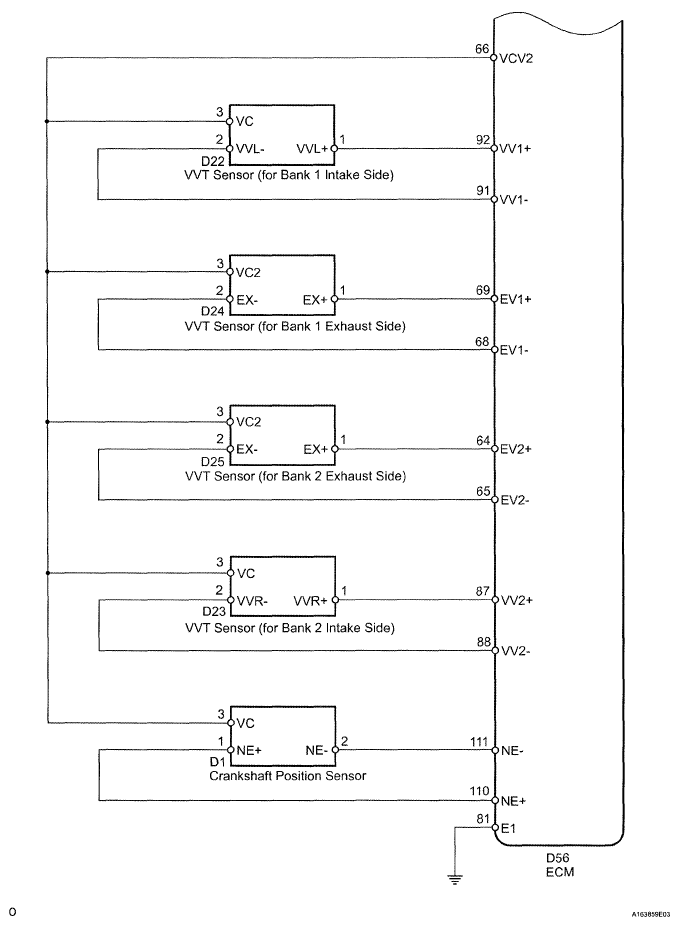

Fig 2: Ignition System Diagram (2 Of 2)
G05644722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
