Engine Coolant Temperature Sensor: Components

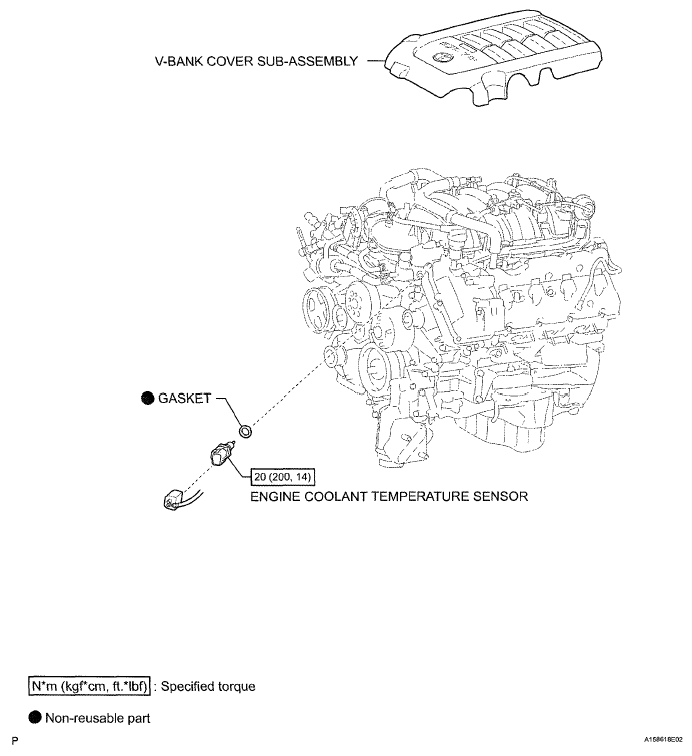

Fig 1: Identifying Engine Coolant Temperature Sensor Components
G05644781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
