Turn Signal and Hazard Warning Light System: Notes

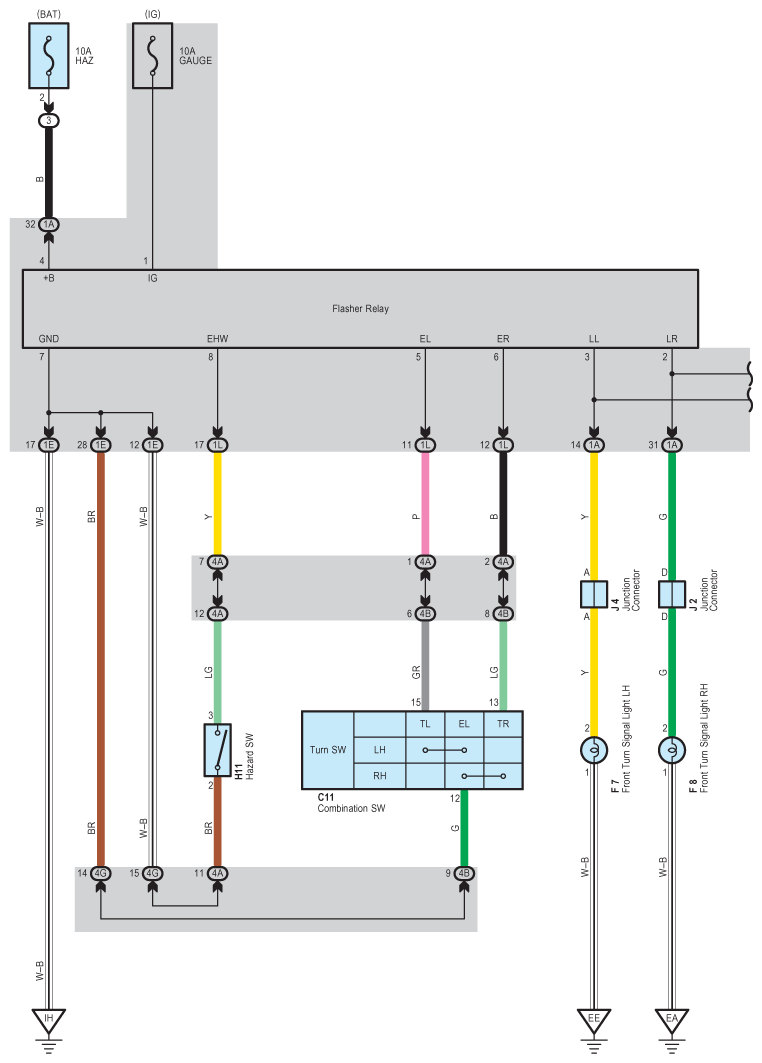

Fig 1: Turn Signal And Hazard Warning Light - Circuit Diagram (1 Of 2)

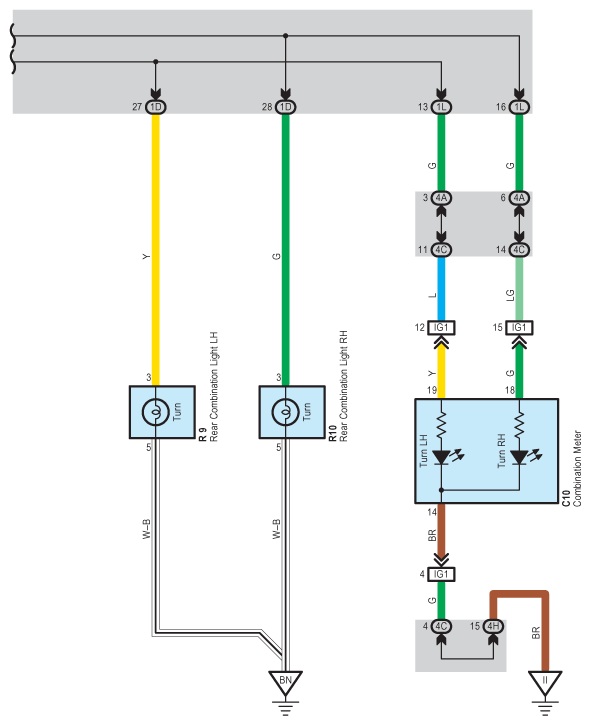

Fig 2: Turn Signal And Hazard Warning Light - Circuit Diagram (2 Of 2)
