Rear Window Defogger and Mirror Heater System: Notes

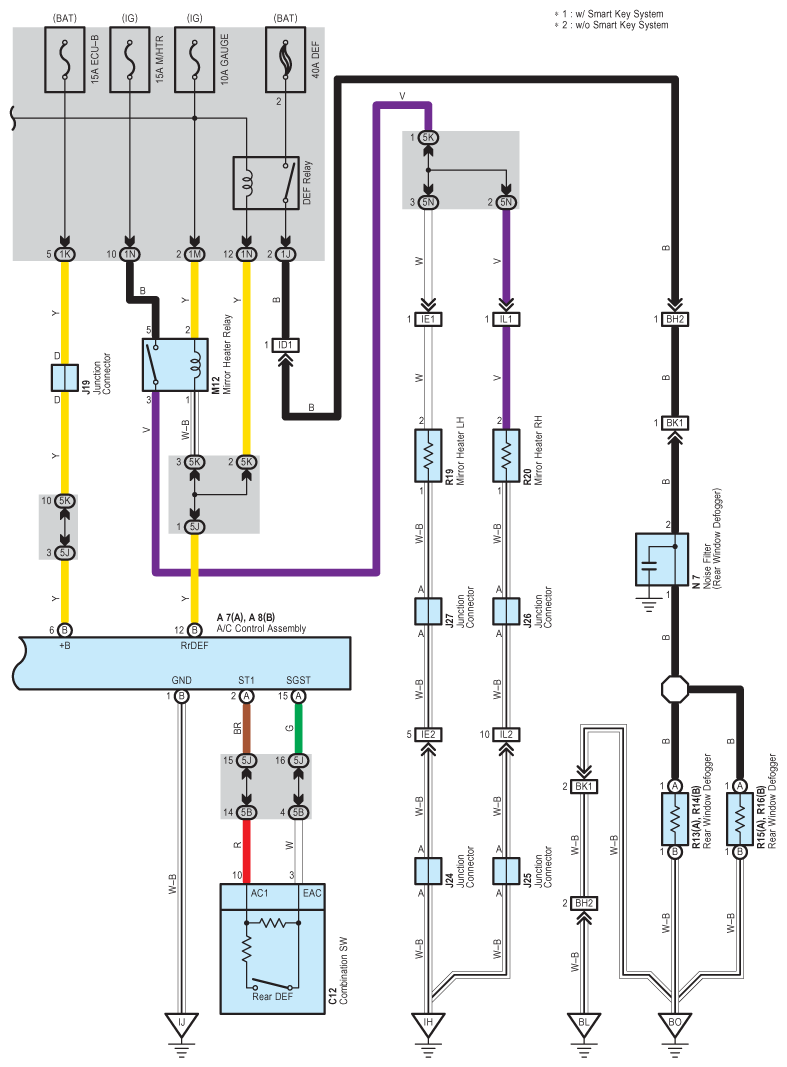

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram (1 Of 2)

Fig 2: Rear Window Defogger And Mirror Heater - Circuit Diagram (2 Of 2)
