Push Button Start System and Hybrid Vehicle Immobiliser System: Notes

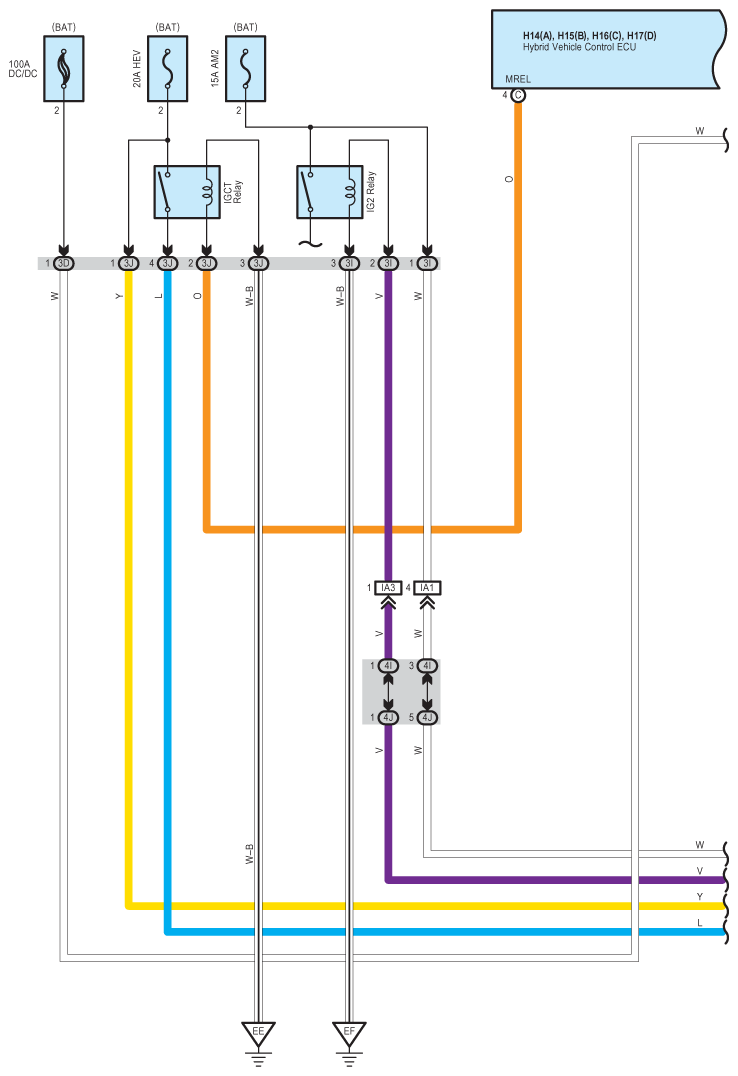

Fig 1: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (1 Of 9)
G07576954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

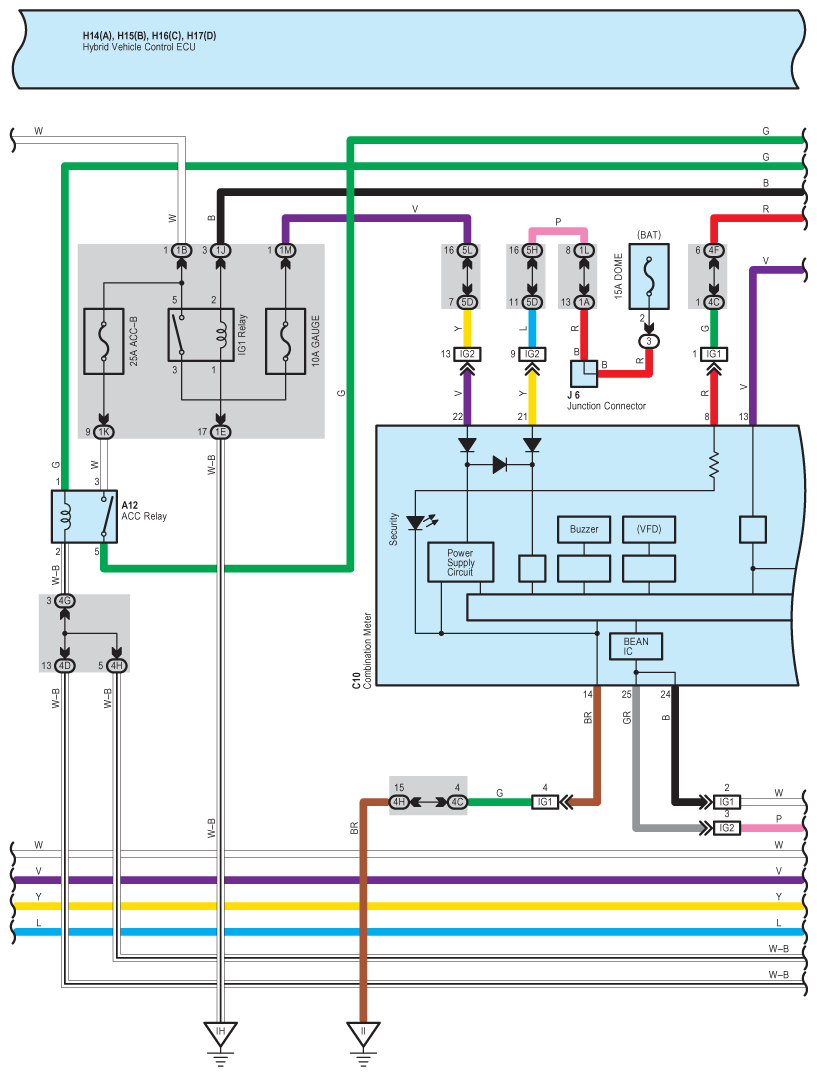

Fig 2: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (2 Of 9)
G07576955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

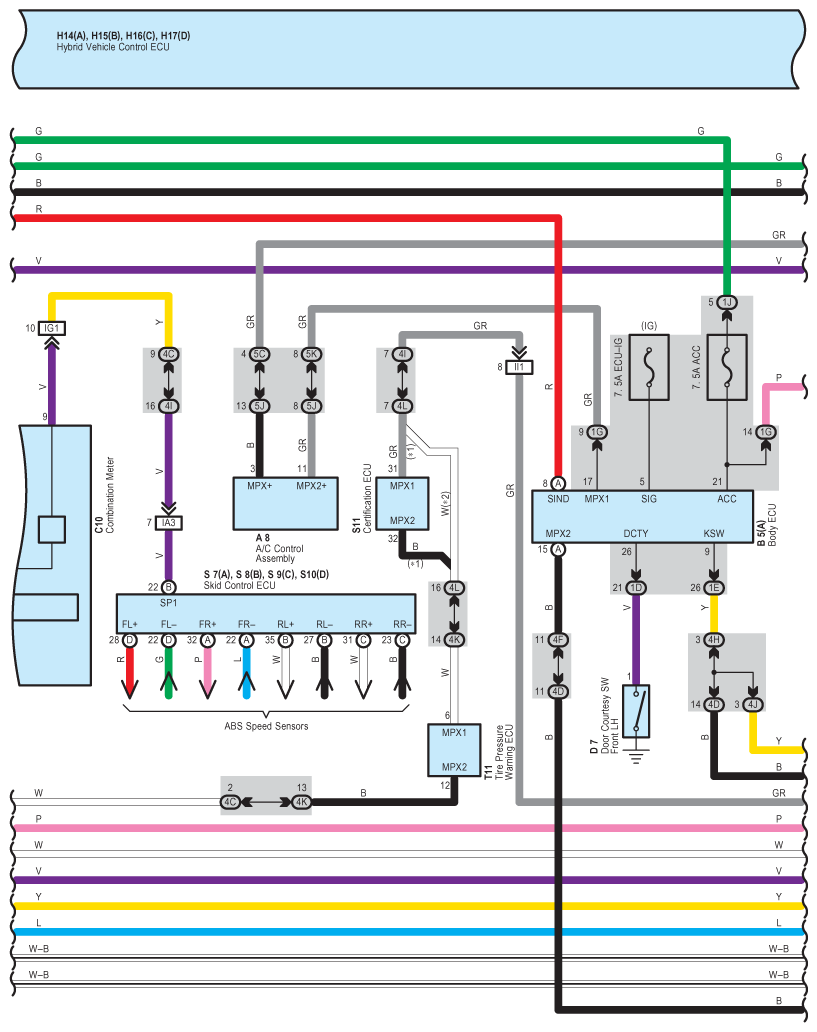

Fig 3: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (3 Of 9)
G07576956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

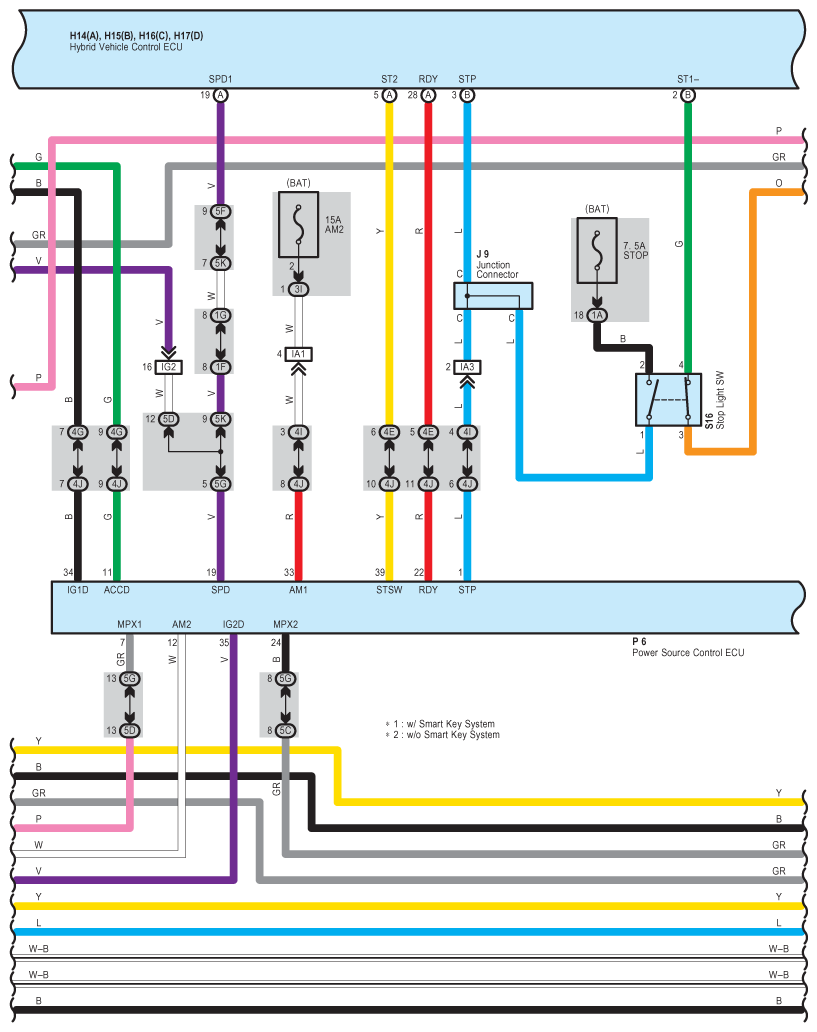

Fig 4: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (4 Of 9)
G07576957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

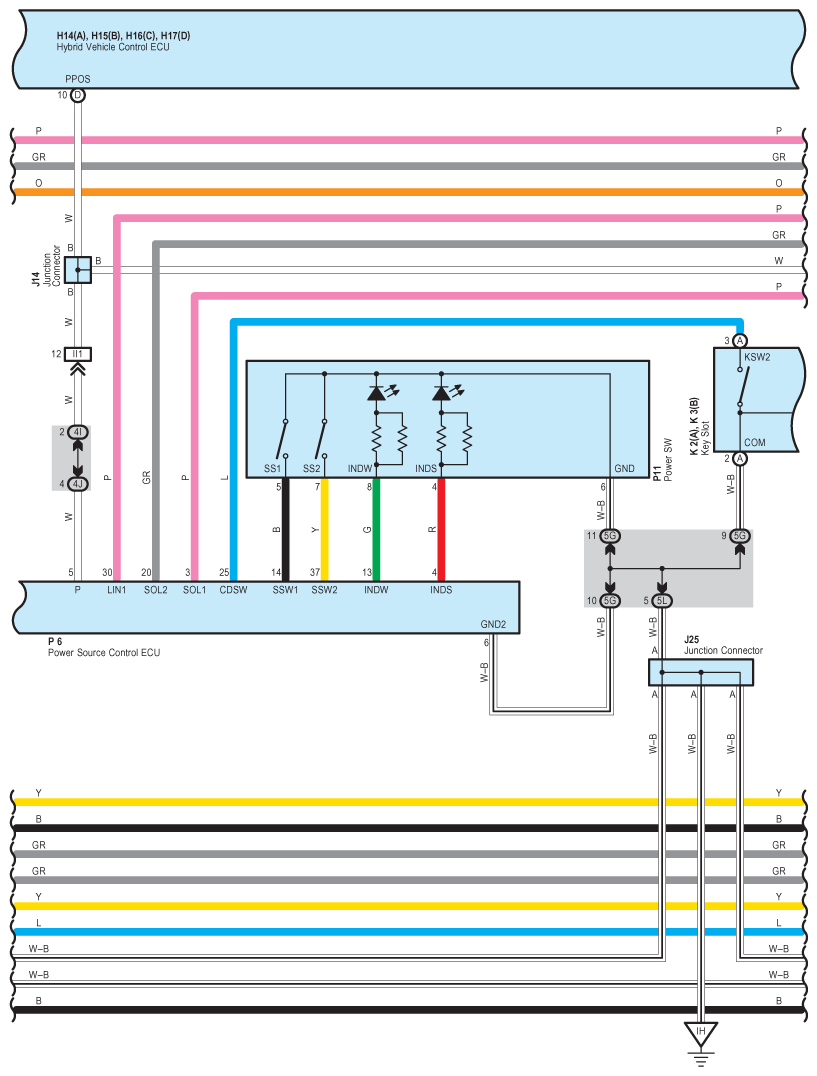

Fig 5: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (5 Of 9)
G07576958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

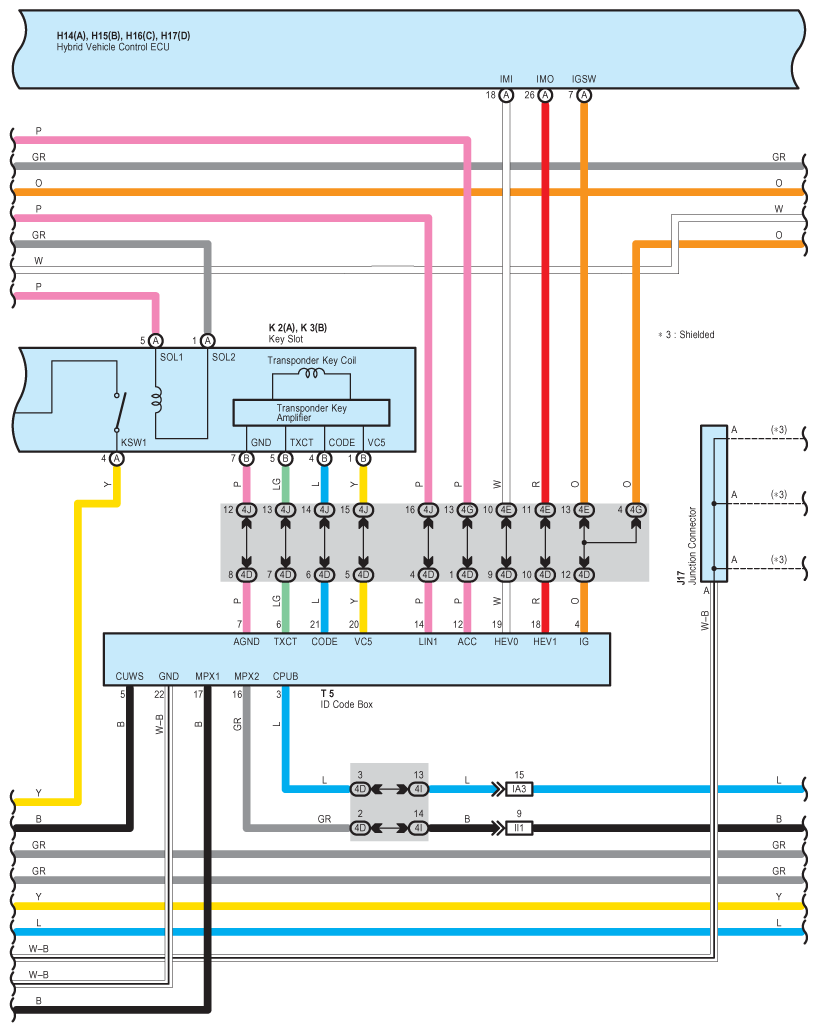

Fig 6: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (6 Of 9)
G07576959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

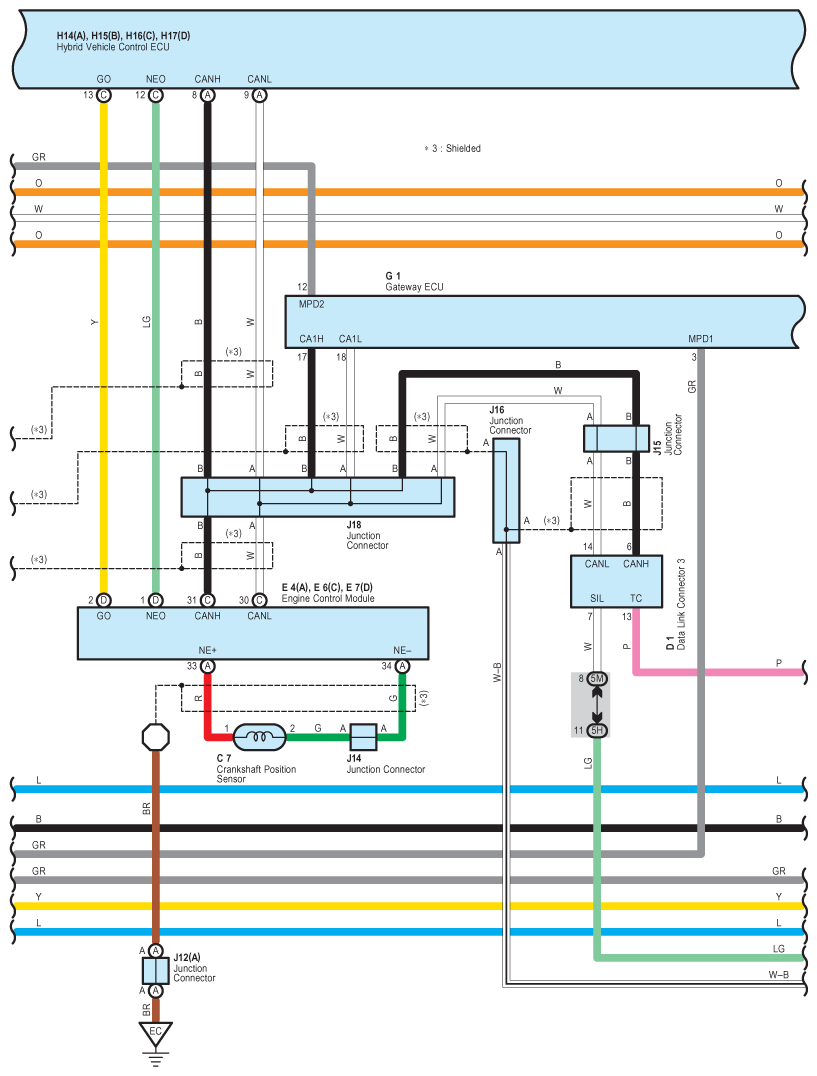

Fig 7: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (7 Of 9)
G07576960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

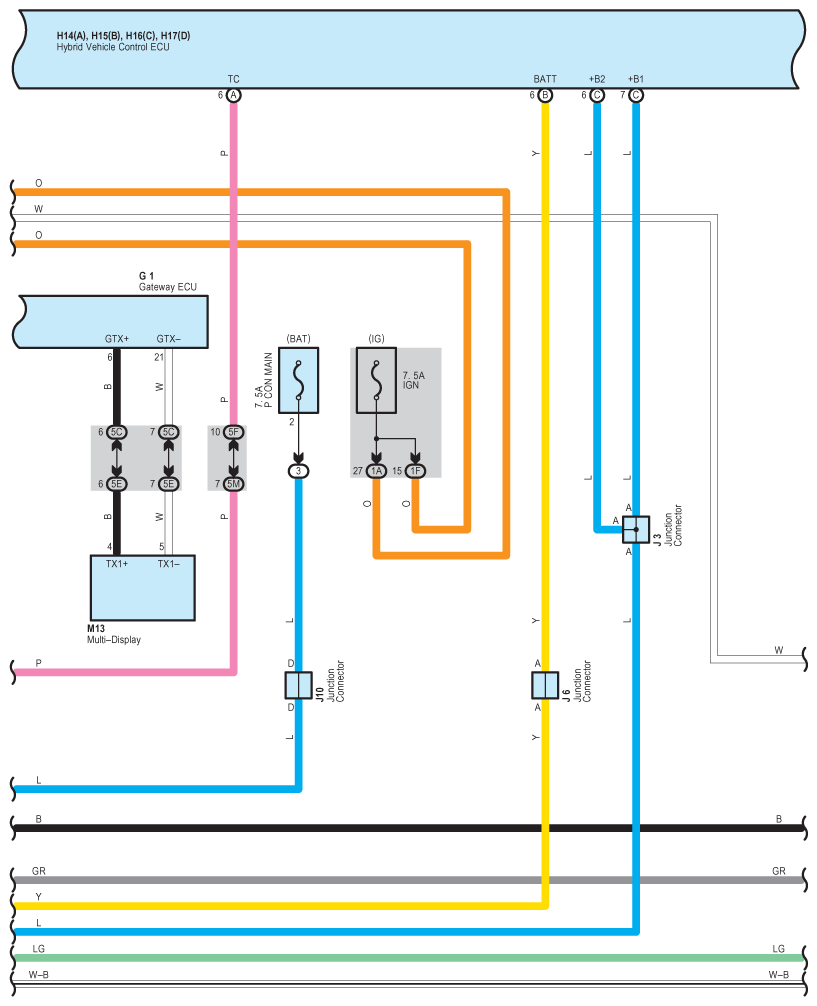

Fig 8: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (8 Of 9)
G07576961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

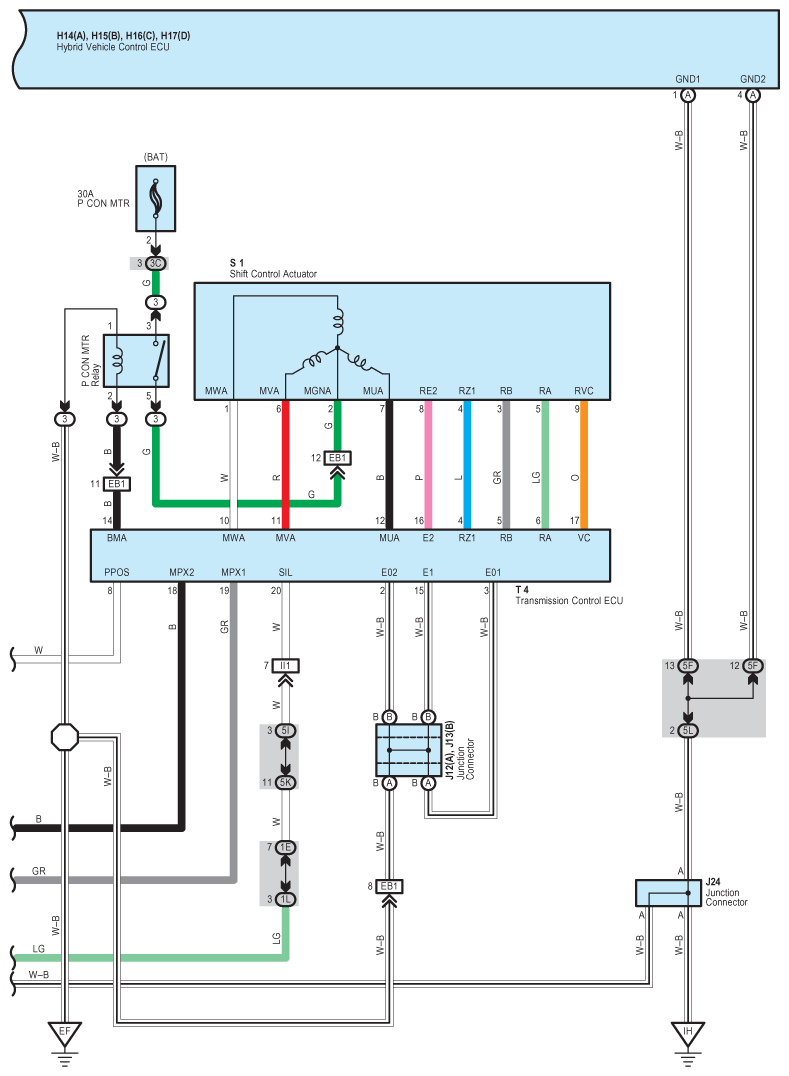

Fig 9: Push Button Start System And Hybrid Vehicle Immobiliser System - Circuit Diagram (9 Of 9)
G07576962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
