Power Window System: Notes

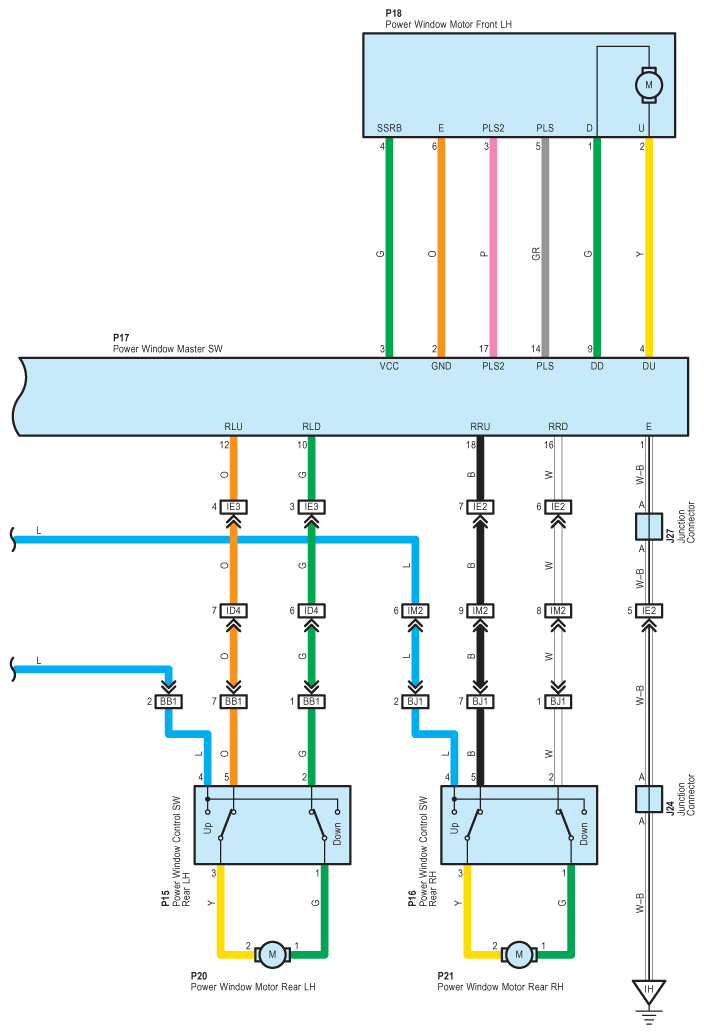

Fig 1: Power Window - Circuit Diagram (1 Of 2)

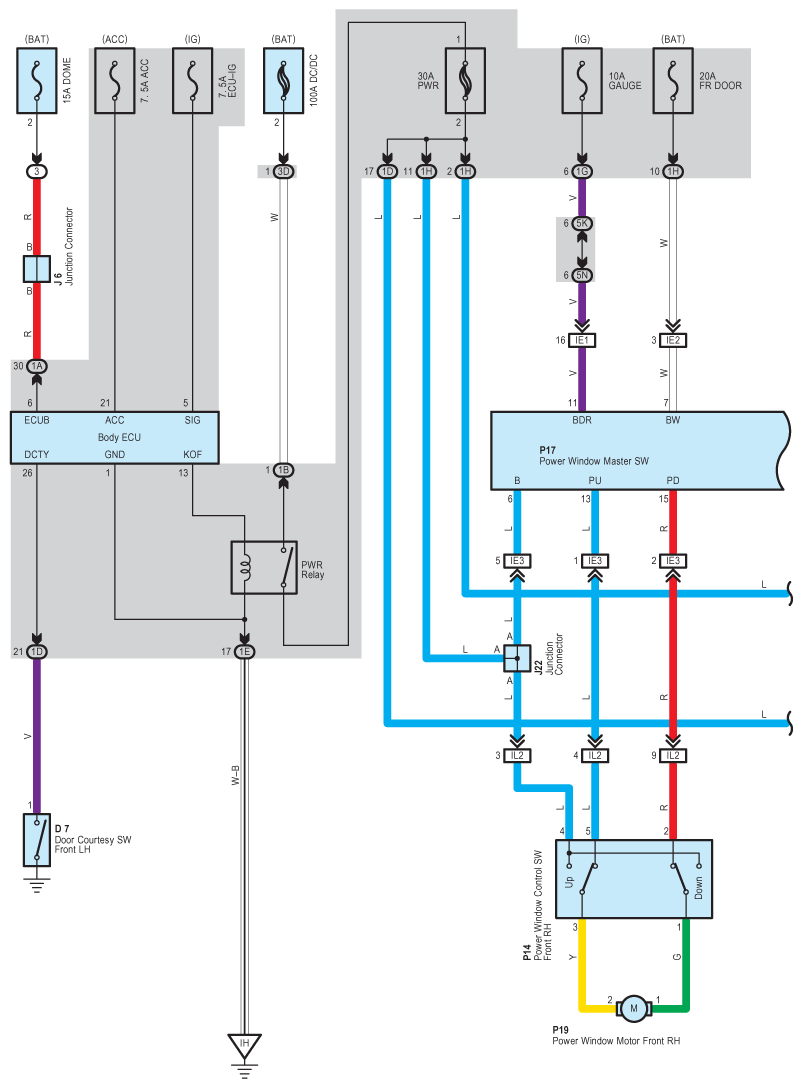

Fig 2: Power Window - Circuit Diagram (2 Of 2)
