Multiplex Communication System - CAN Bus: Notes

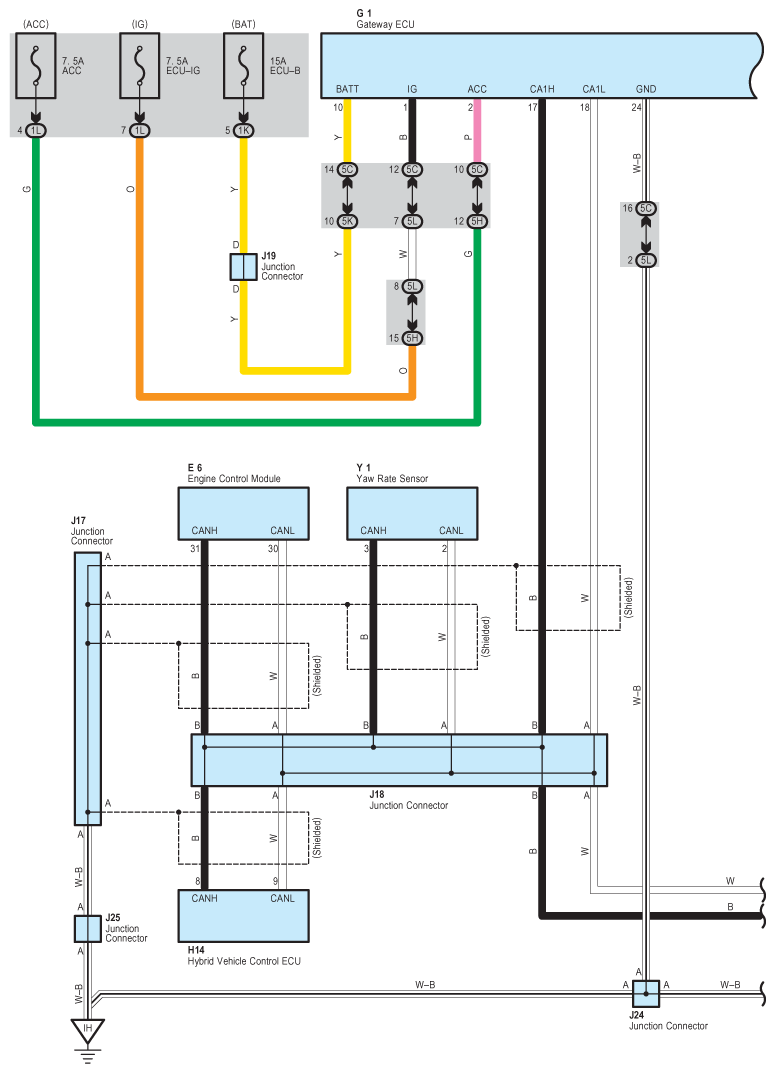

Fig 1: Multiplex Communication System - CAN Bus - Circuit Diagram (1 Of 2)
G07576950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

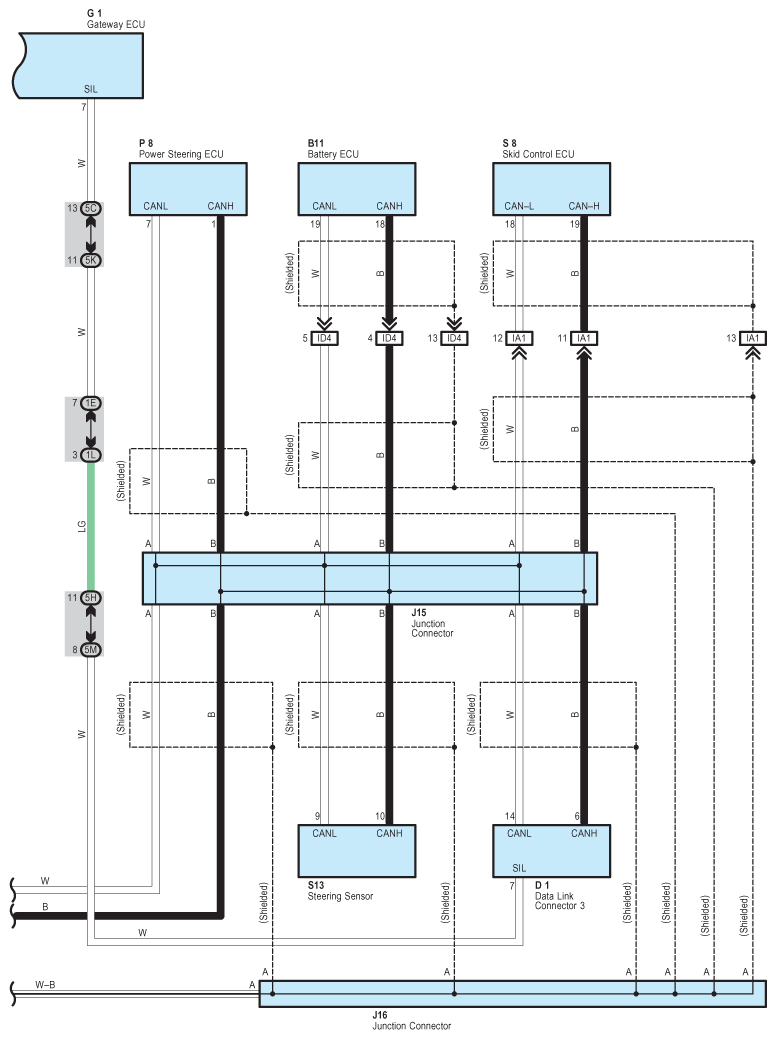

Fig 2: Multiplex Communication System - CAN Bus - Circuit Diagram (2 Of 2)
G07576951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

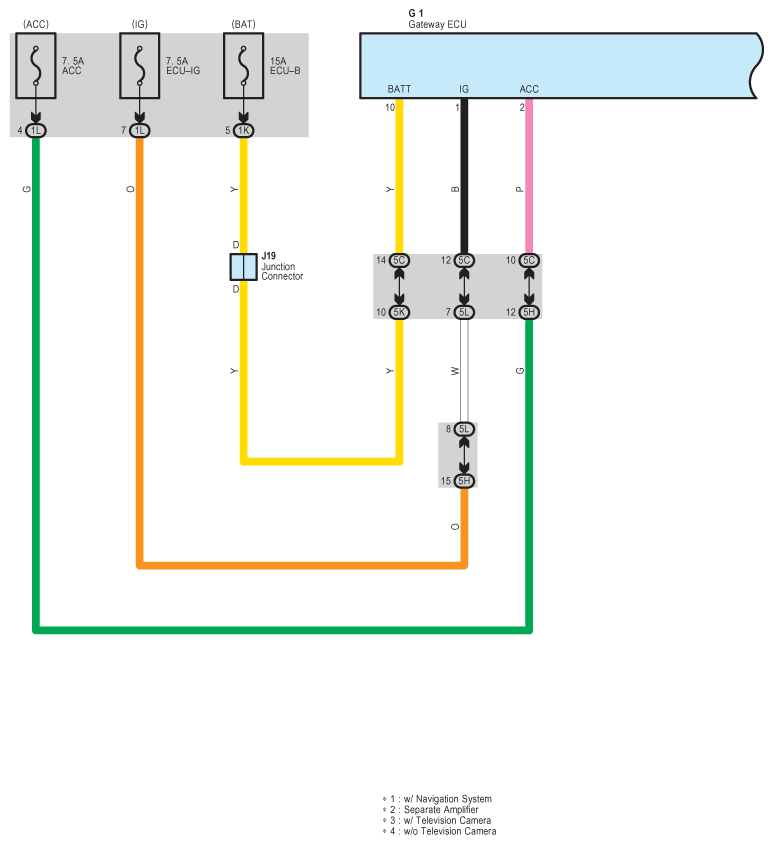

Fig 1: Multiplex Communication System - CAN Bus - Circuit Diagram (1 Of 2)
G07576952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

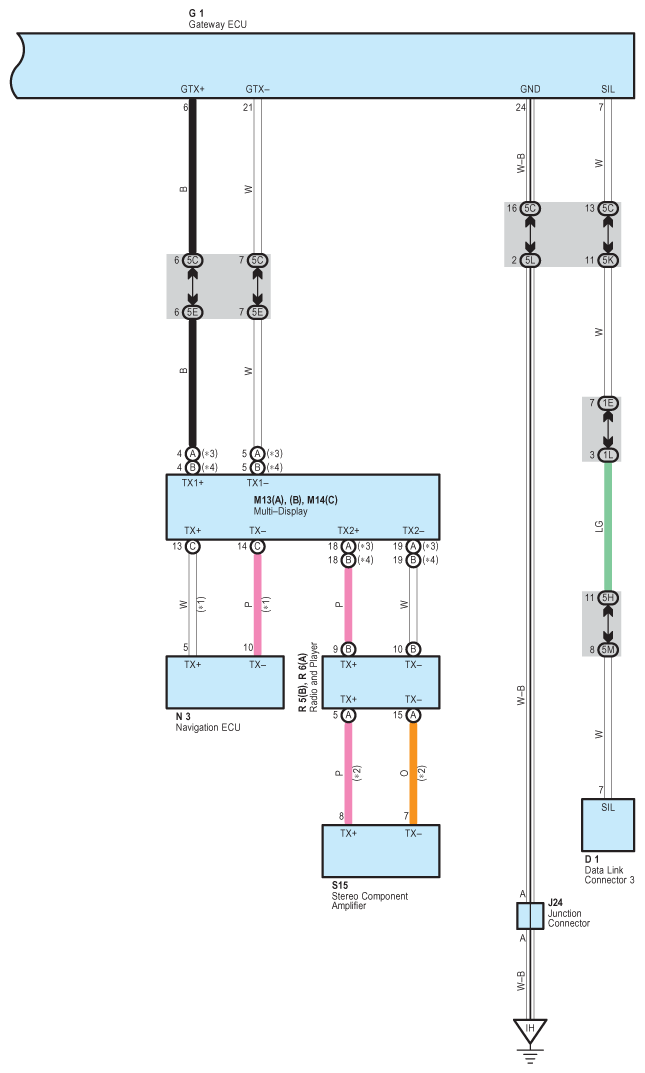

Fig 2: Multiplex Communication System - CAN Bus - Circuit Diagram (2 Of 2)
G07576953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
