Multiplex Communication System - BEAN Bus: Notes

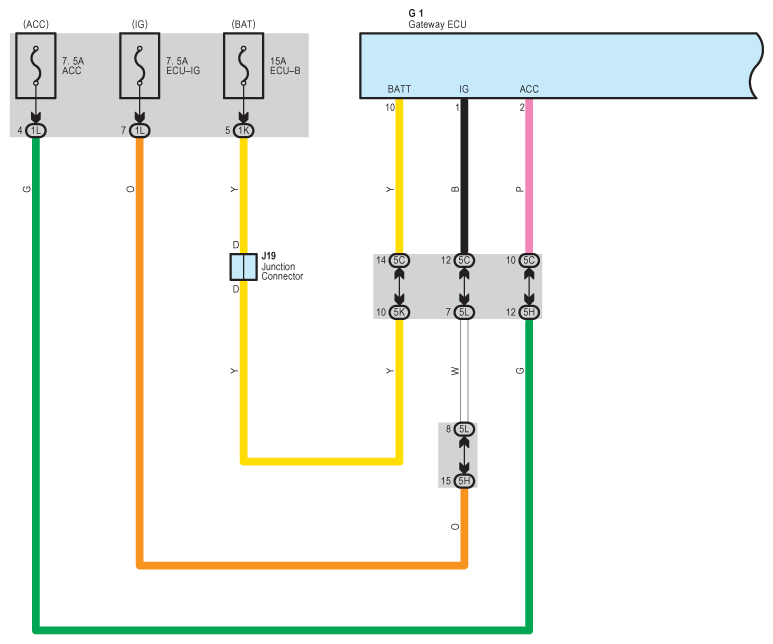

Fig 1: Multiplex Communication System - Bean Bus - Circuit Diagram (1 Of 2)

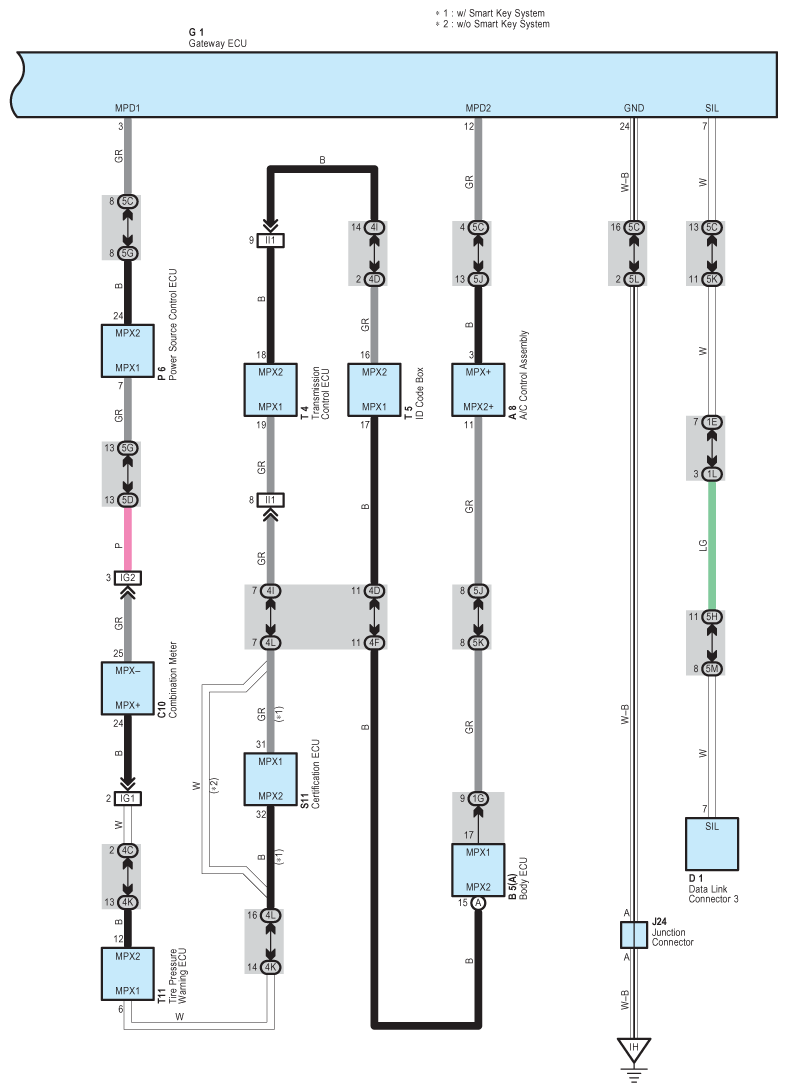

Fig 2: Multiplex Communication System - Bean Bus - Circuit Diagram (2 Of 2)
