Headlight Beam Level Control System: Notes

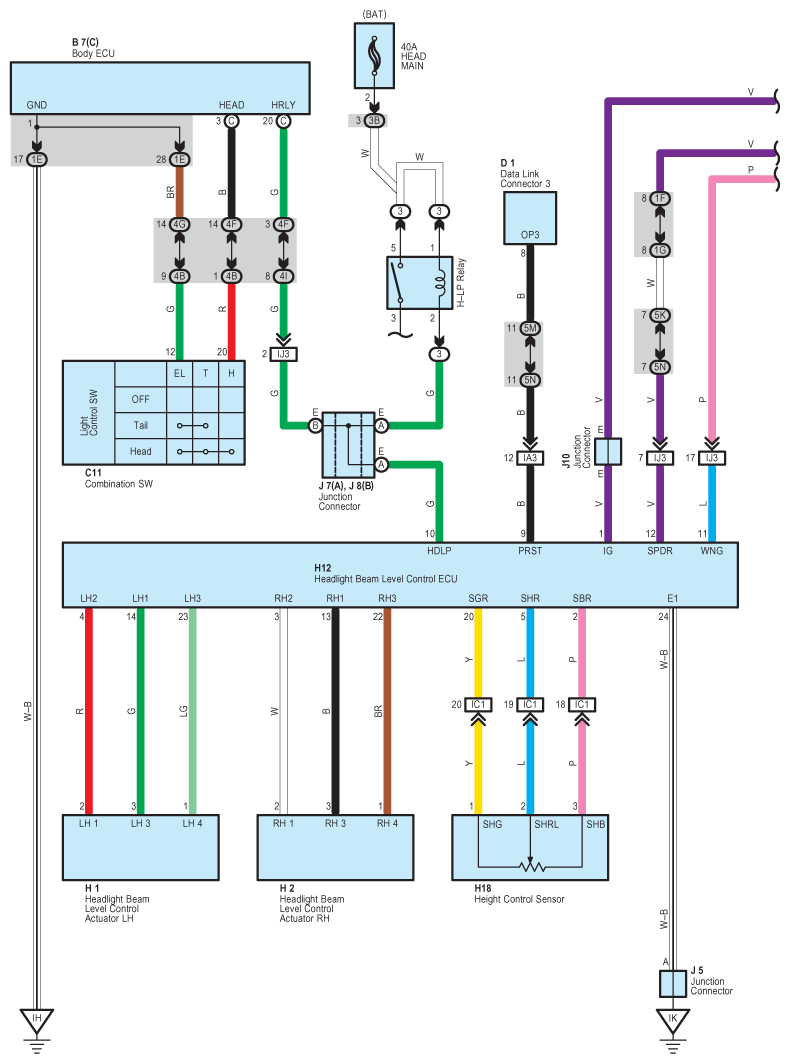

Fig 1: Headlight Beam Level Control - Circuit Diagram (1 Of 2)

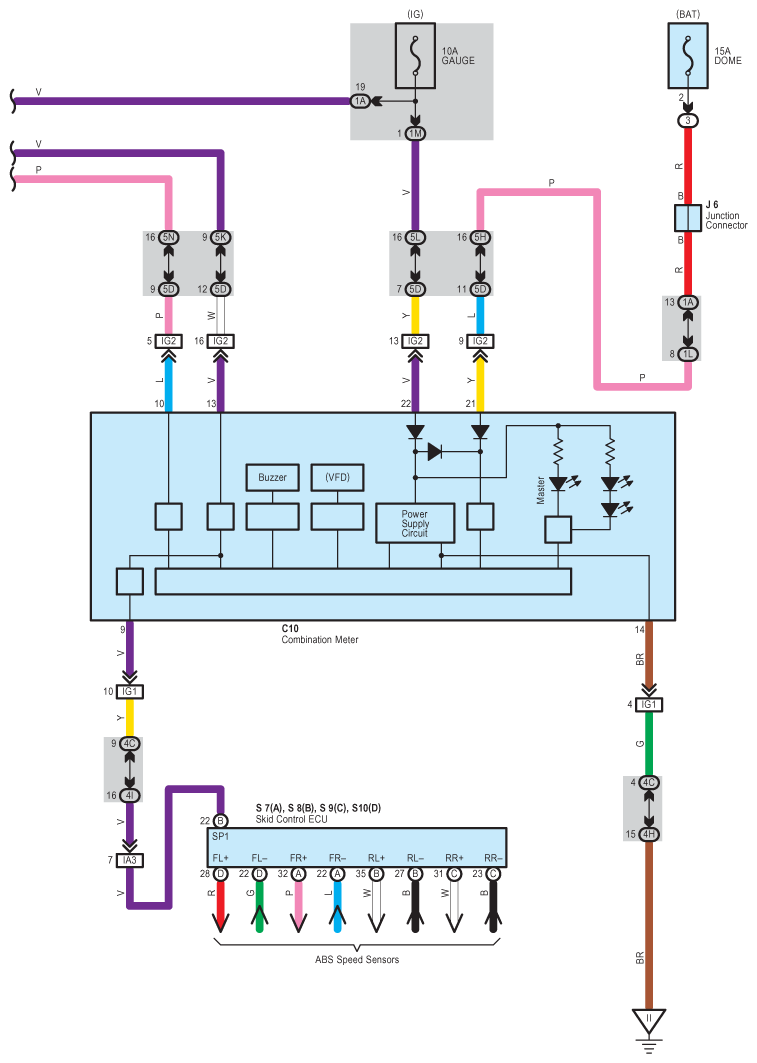

Fig 2: Headlight Beam Level Control - Circuit Diagram (2 Of 2)
