Back-Up Light System: Notes

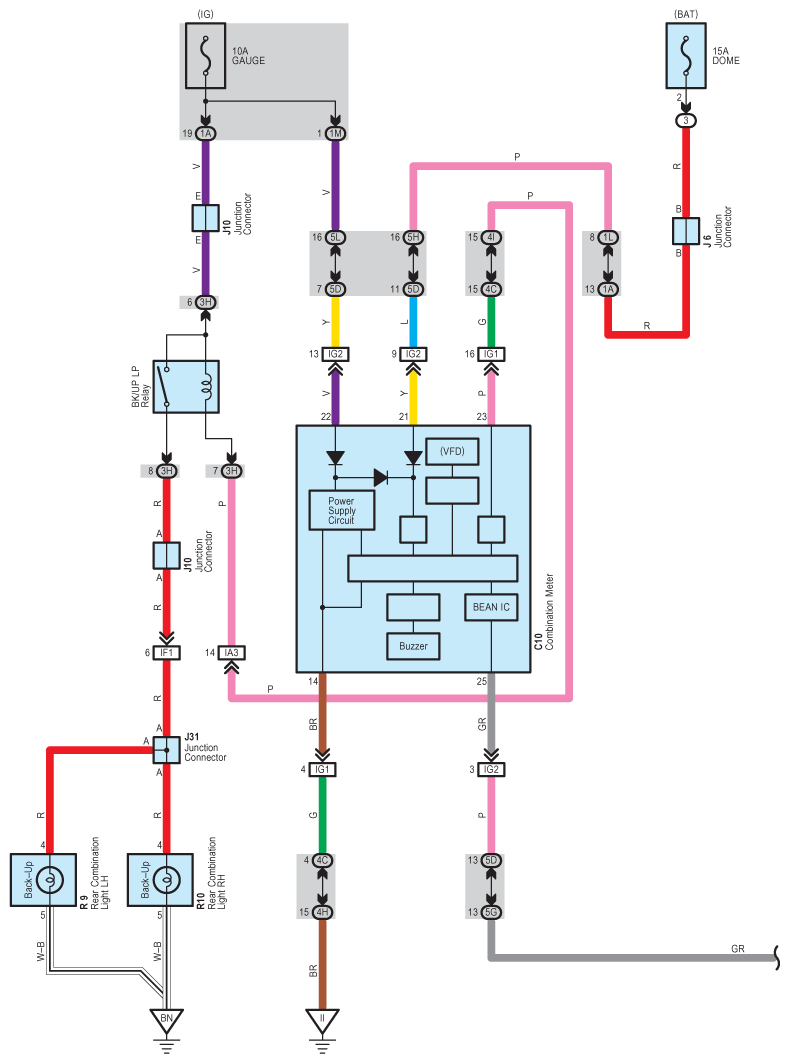

Fig 1: Back-Up Light - Circuit Diagram (1 Of 2)

Fig 2: Back-Up Light - Circuit Diagram (2 Of 2)
