Symptom Related Diagnostic Procedures

1ZZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

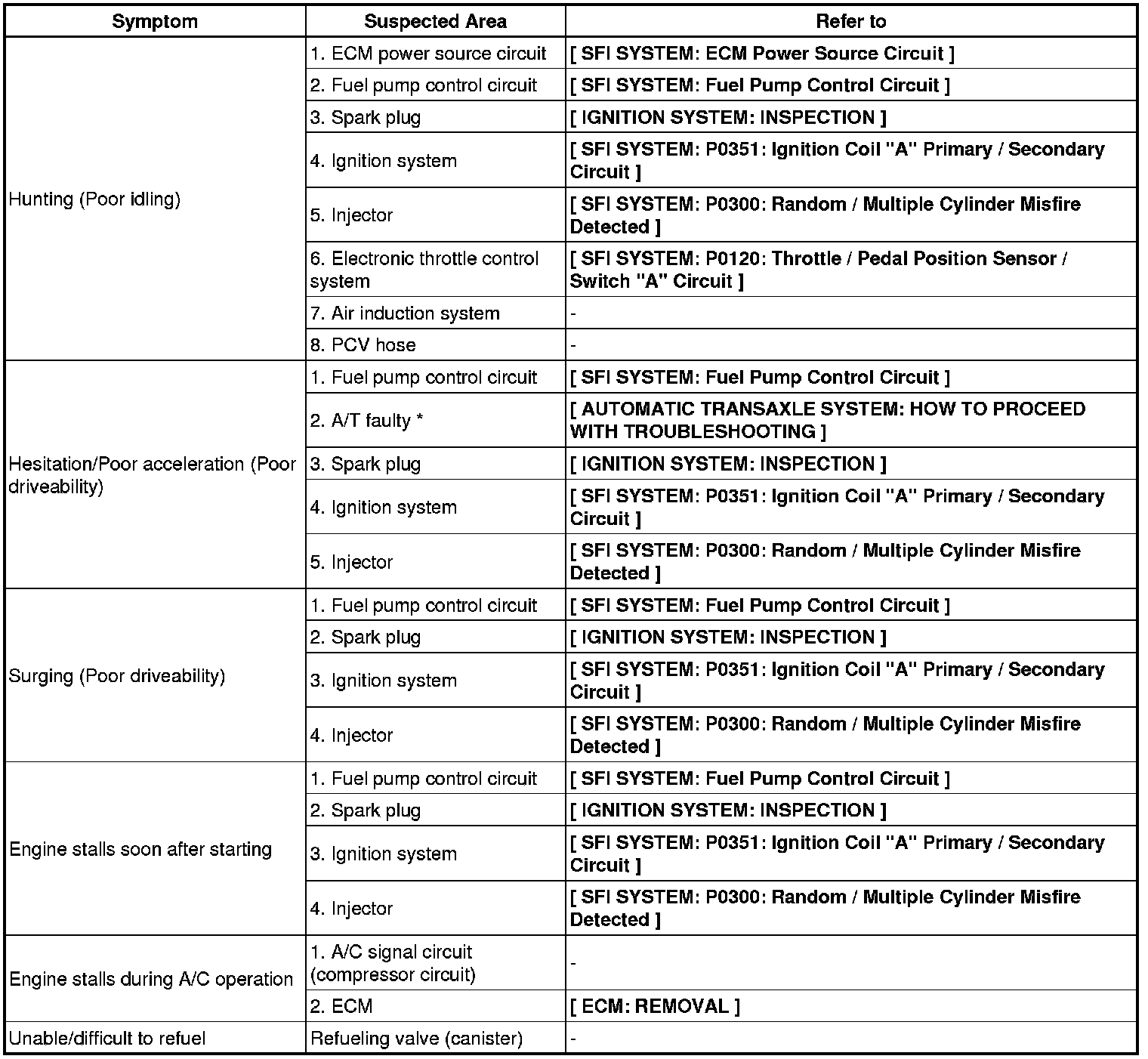

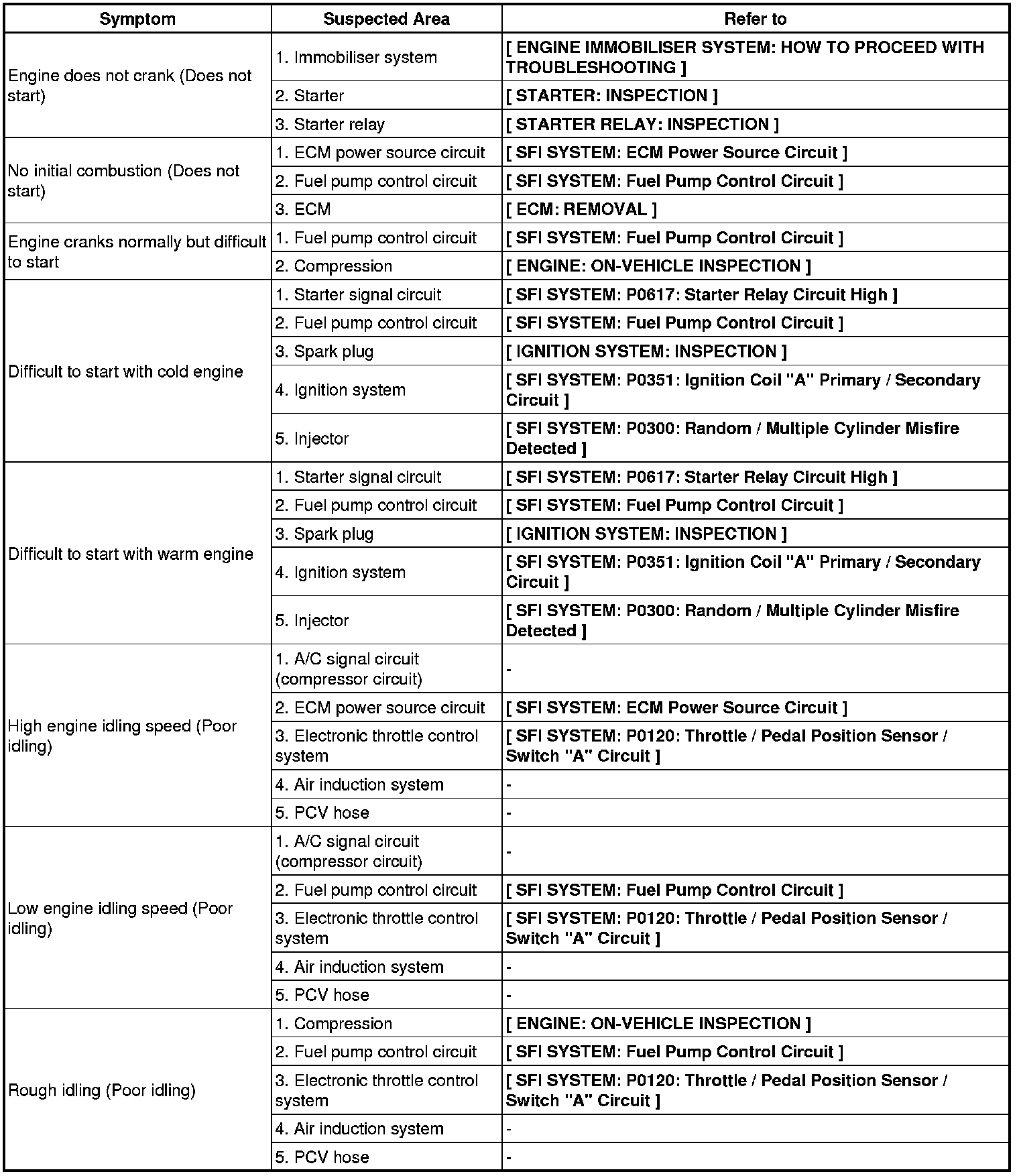

PROBLEM SYMPTOMS TABLE

HINT: When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table below.









*: A/T only
