Steering Angle Sensor Communication Stop Mode

CAN COMMUNICATION SYSTEM: Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

DESCRIPTION

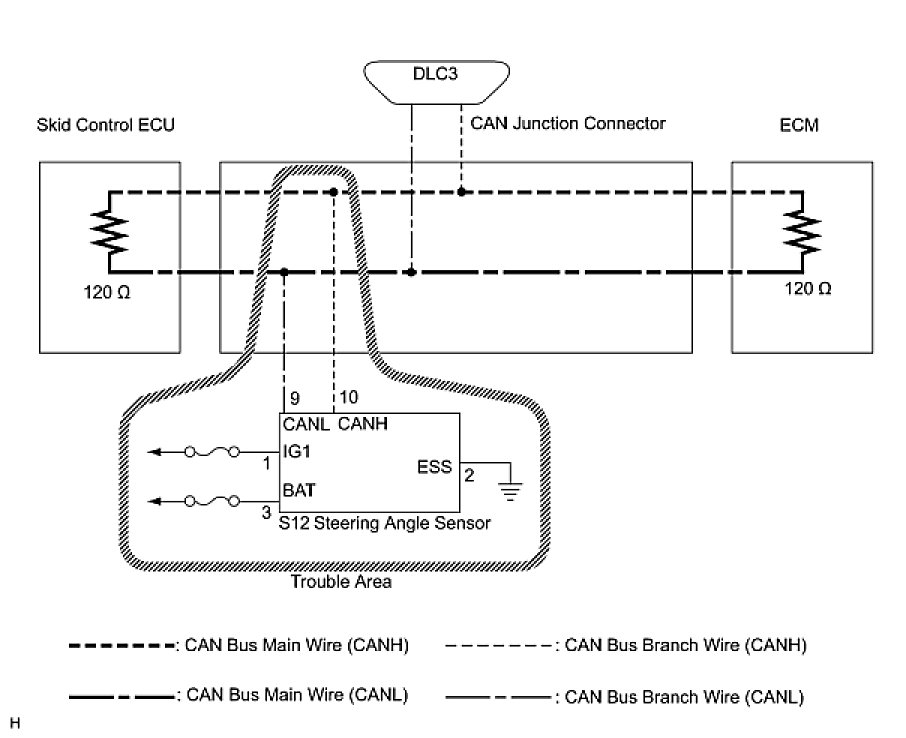

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTE: Turn the ignition switch off before measuring the resistances of CAN bus main wires and CAN bus branch wires.

PROCEDURE

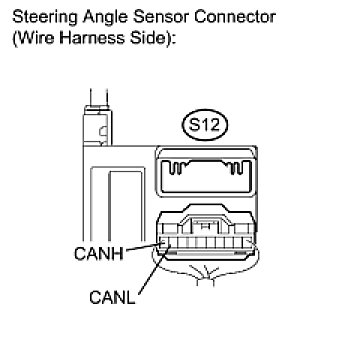

1. CHECK OPEN IN CAN BUS WIRE (STEERING ANGLE SENSOR BRANCH WIRE)
(a) Turn the ignition switch off.
(b) Disconnect the steering angle sensor connector.

NG -- REPAIR OR REPLACE STEERING ANGLE SENSOR BRANCH WIRE OR CONNECTOR
OK -- Continue to next step.

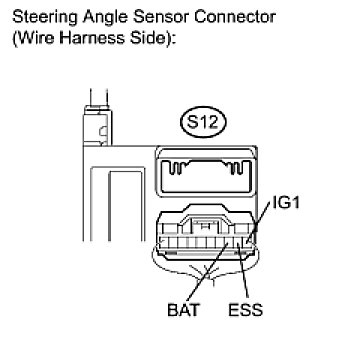

2. CHECK WIRE HARNESS (BAT, IG1, ESS)

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE STEERING ANGLE SENSOR
