How To Determine Bolt Strength

Bolt Type

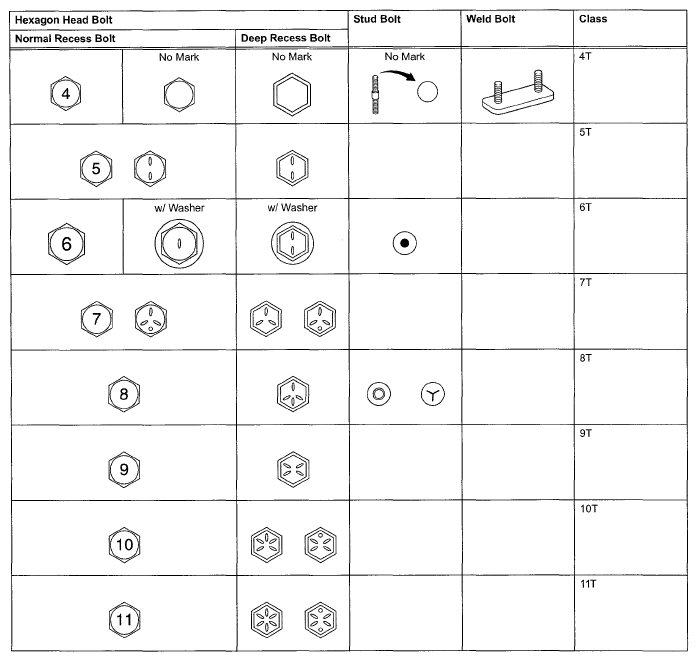

Fig 1: Bolt Strength Specification Chart
G05574780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
