Brake Warning Light Circuit: Wiring Diagram

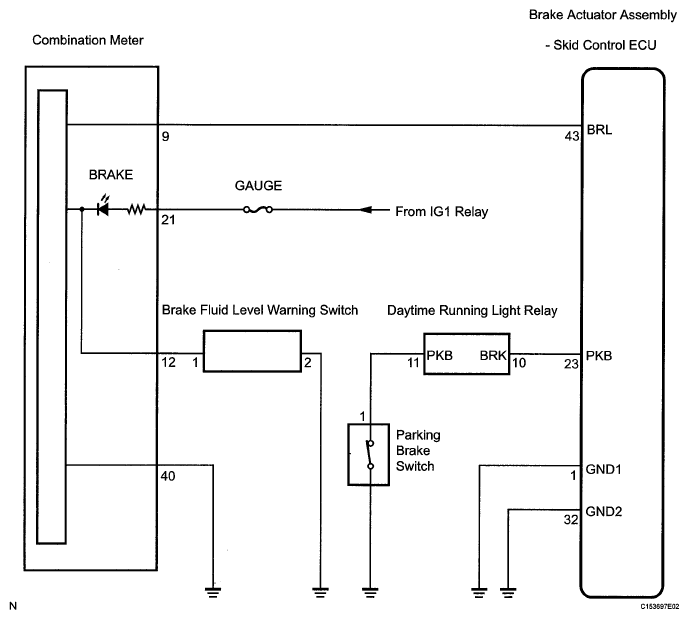

Fig 1: Brake Warning Light - Wiring Diagram
G05575945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
