System Diagram

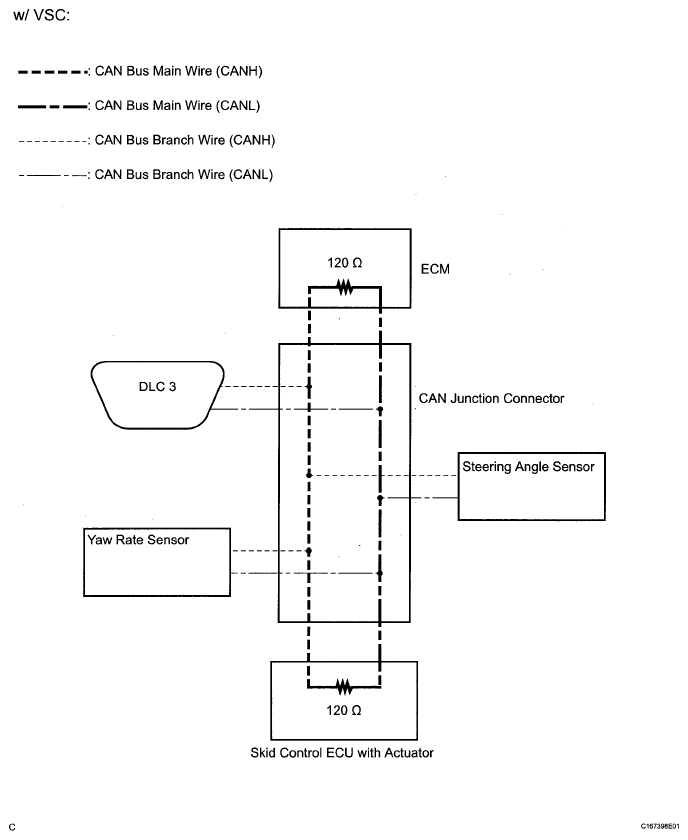

Fig 1: CAN - System Diagram (W/ VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: CAN - System Diagram (W/O VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
