Oil Cooler: Components

Fig 1: Identifying Oil Cooler Replacement Components With Torque Specifications (1 Of 3)
G05629149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

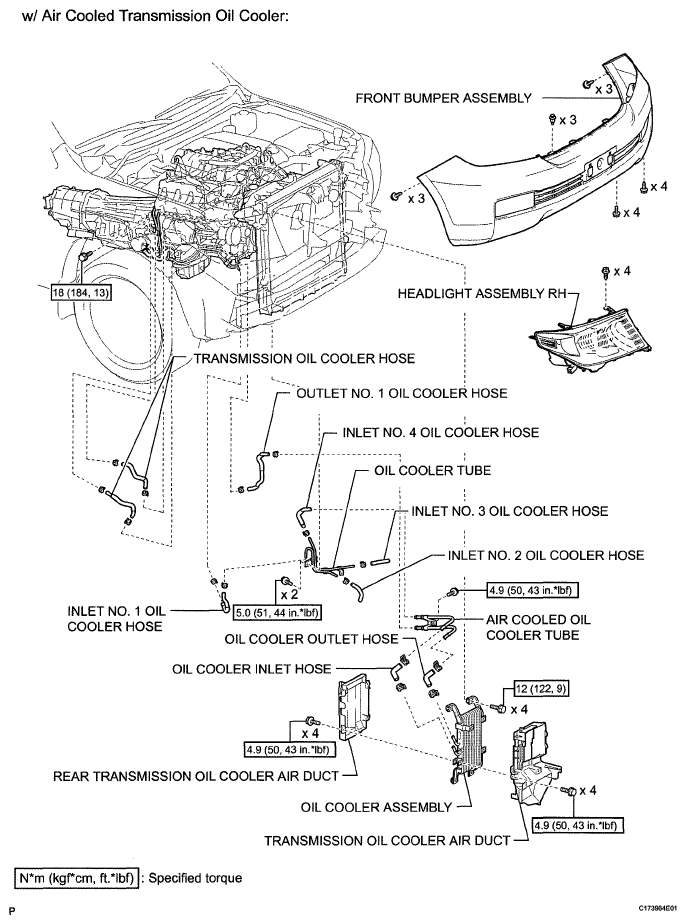

Fig 2: Identifying Oil Cooler Replacement Components With Torque Specifications (2 Of 3)
G05629150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

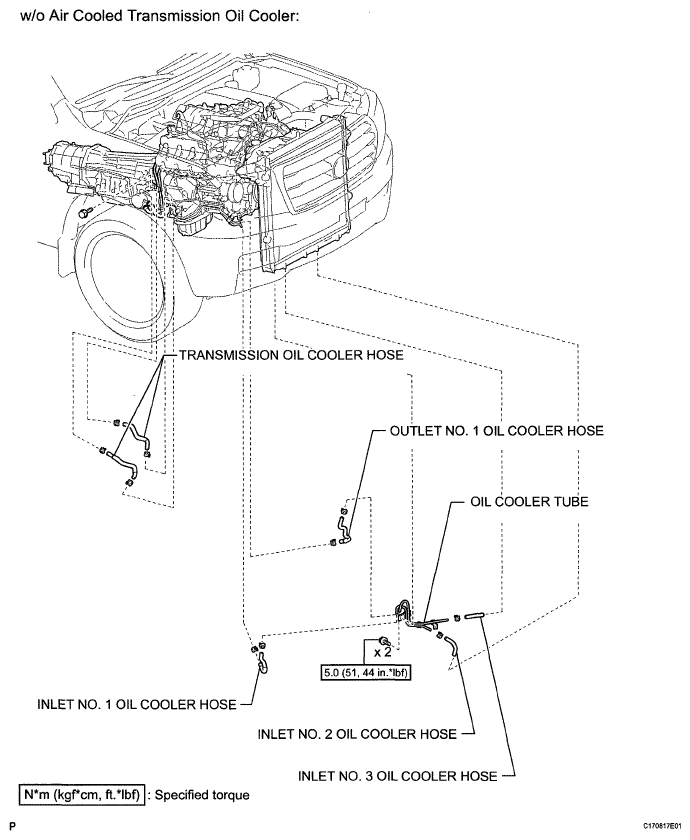

Fig 3: Identifying Oil Cooler Replacement Components With Torque Specifications (3 Of 3)
G05629151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
