System Diagram

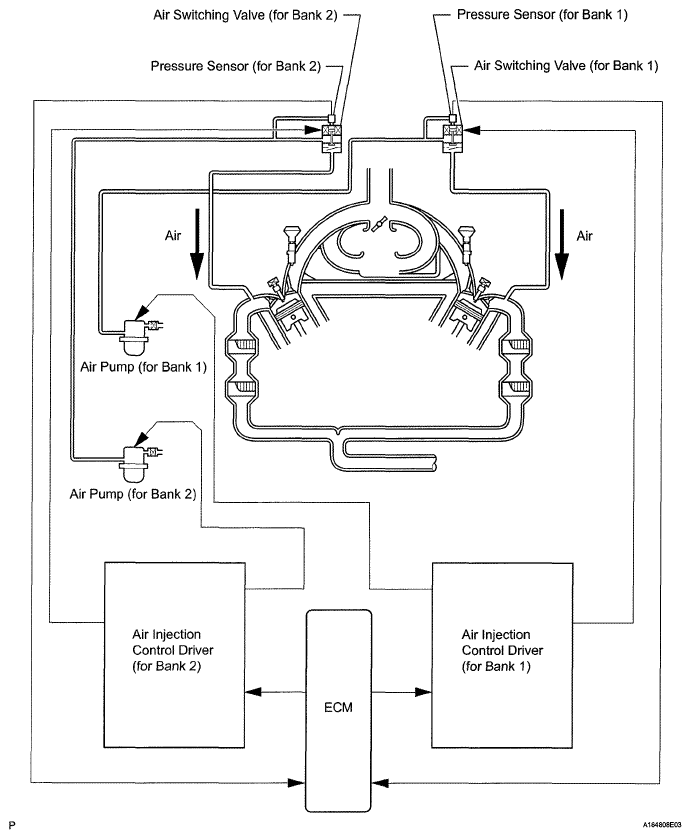

- SECONDARY AIR INJECTION CONTROL SYSTEM DIAGRAM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

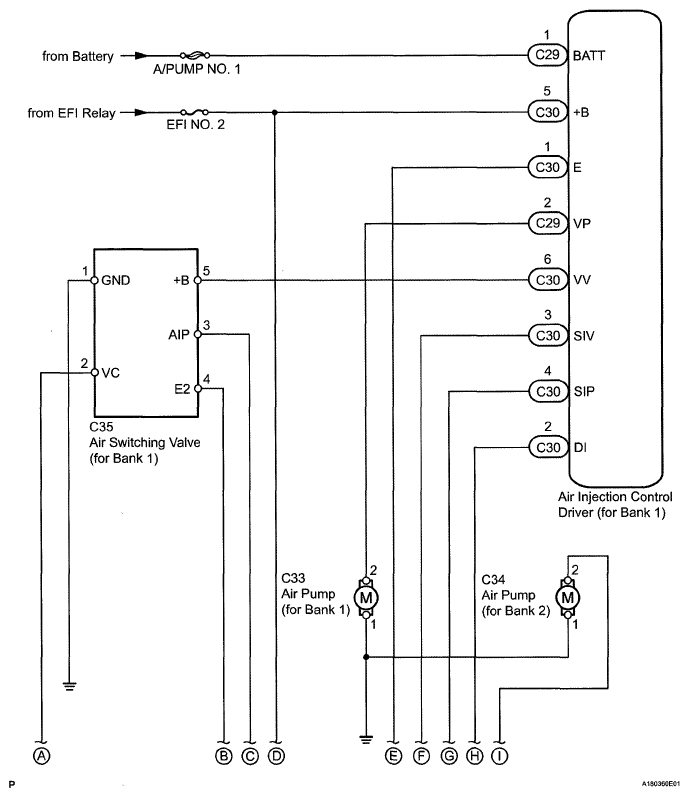

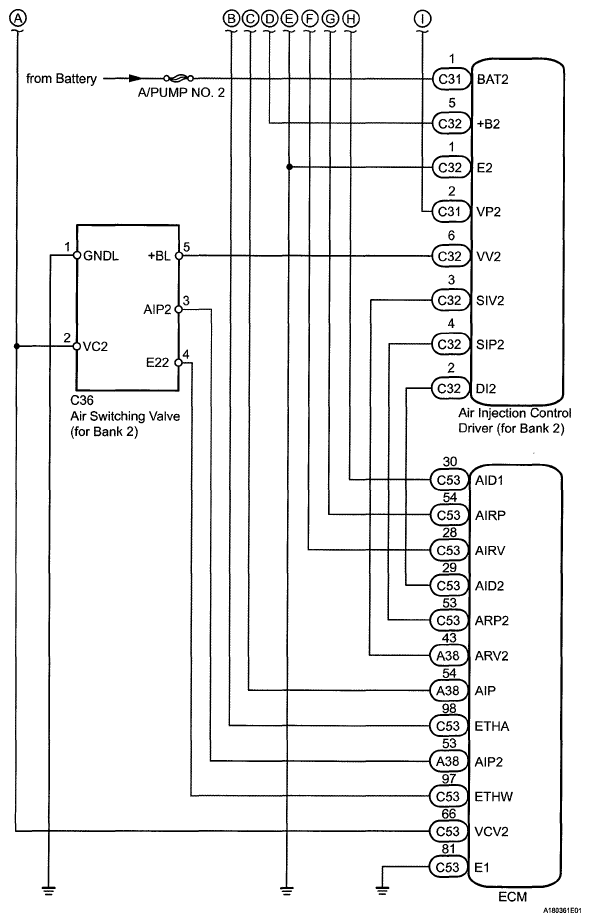

- SECONDARY AIR INJECTION SYSTEM WIRING DIAGRAM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

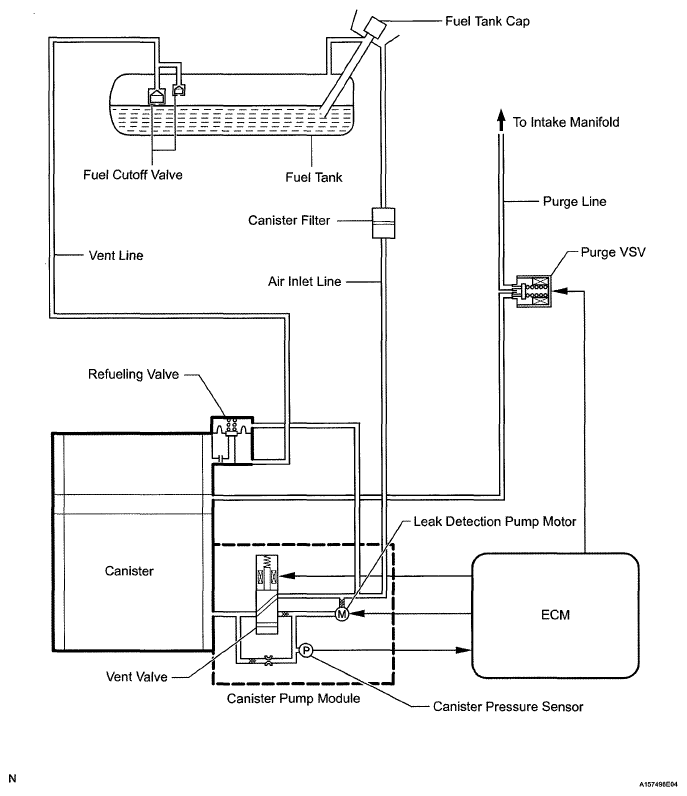

- EVAP CONTROL SYSTEM DIAGRAM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

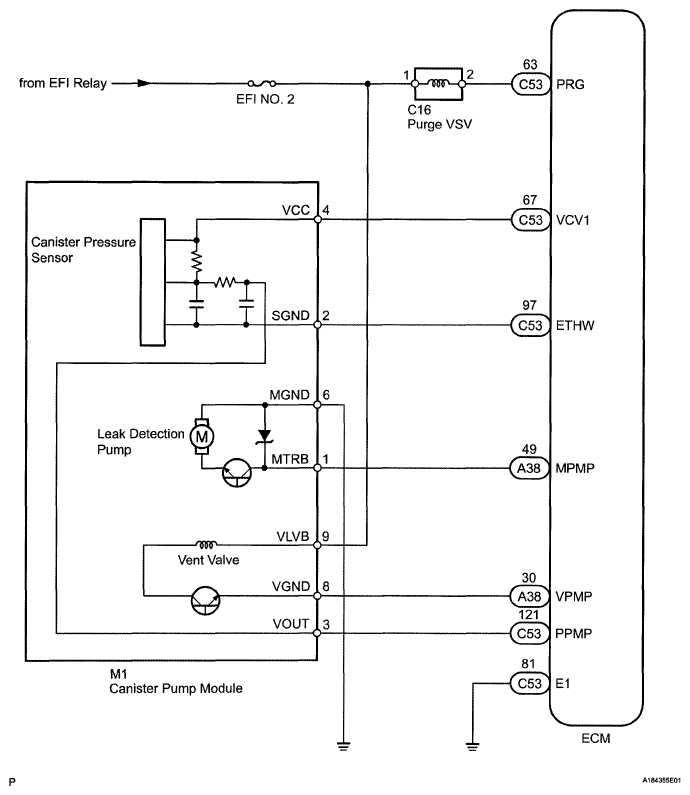

- EVAP SYSTEM WIRING DIAGRAM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
