Power Tilt and Power Telescopic System: Notes

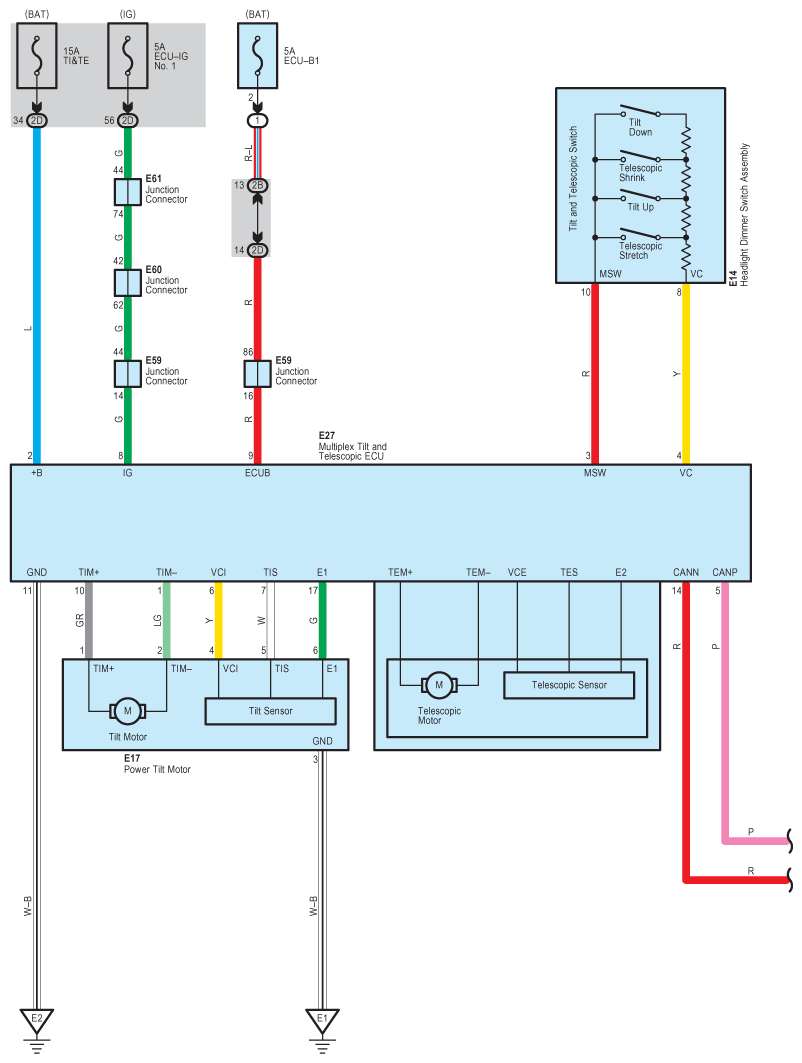

Fig 1: Power Tilt And Power Telescopic - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

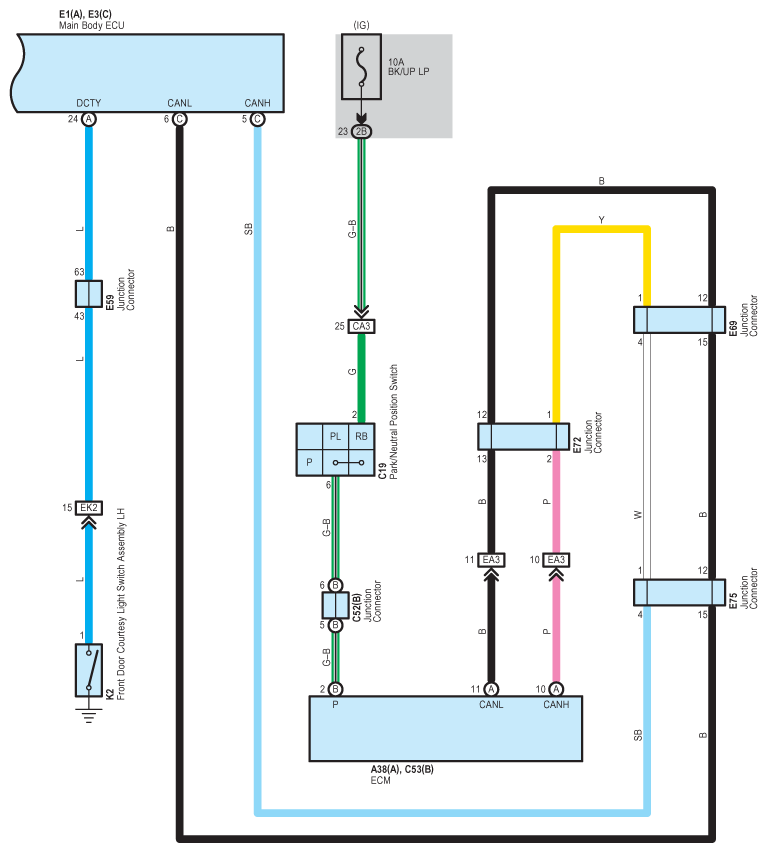

Fig 2: Power Tilt And Power Telescopic - Circuit Diagram (2 Of 3)

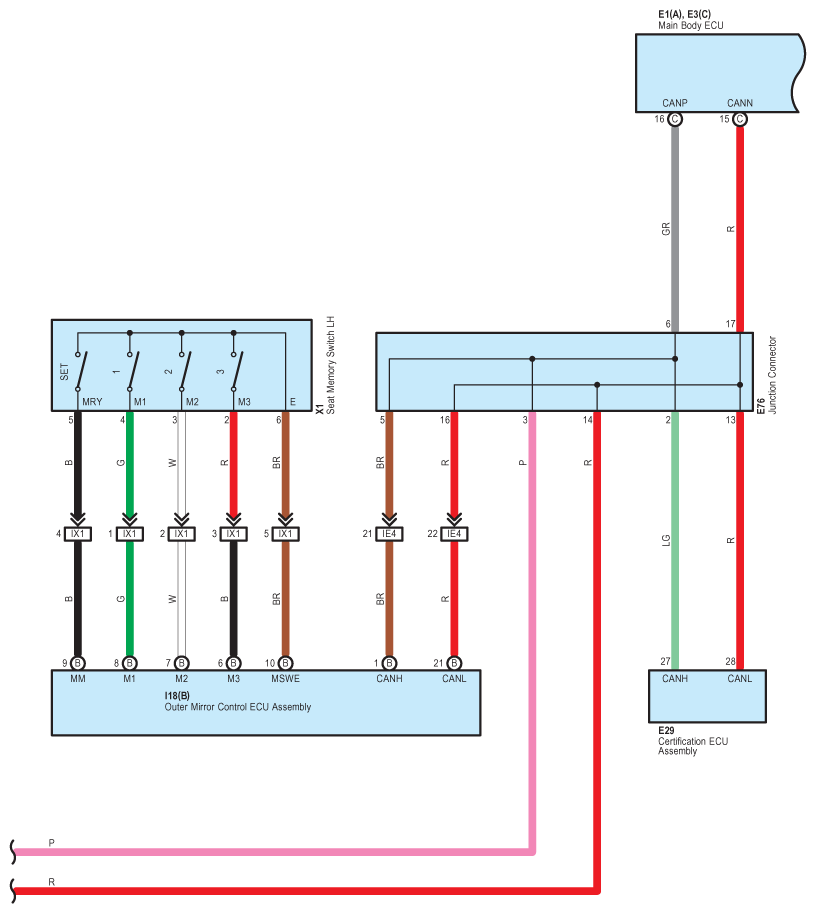

Fig 3: Power Tilt And Power Telescopic - Circuit Diagram (3 Of 3)
