Windshield Glass: Components

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 4)
G05636374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

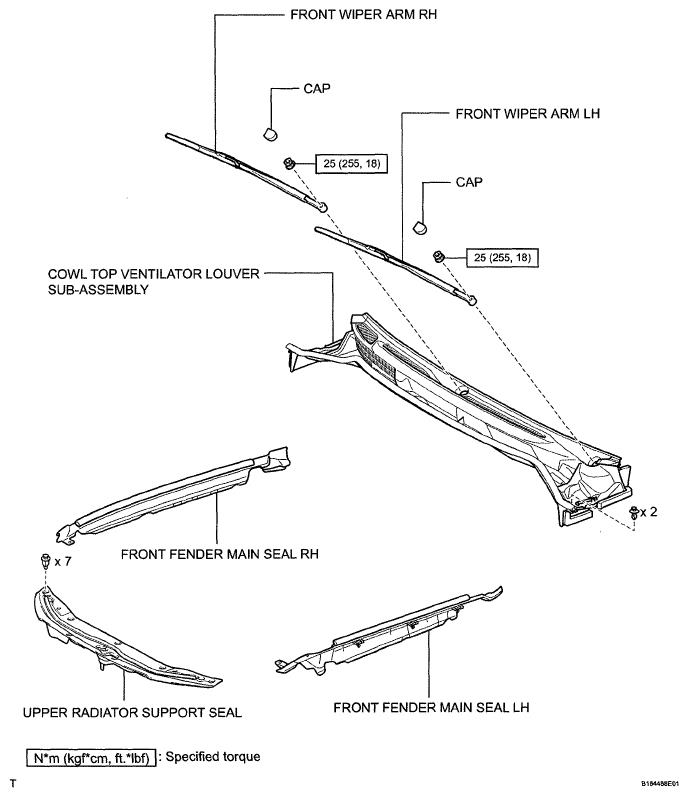

Fig 2: Identifying Windshield Glass Replacement Components (2 Of 4)
G05636375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

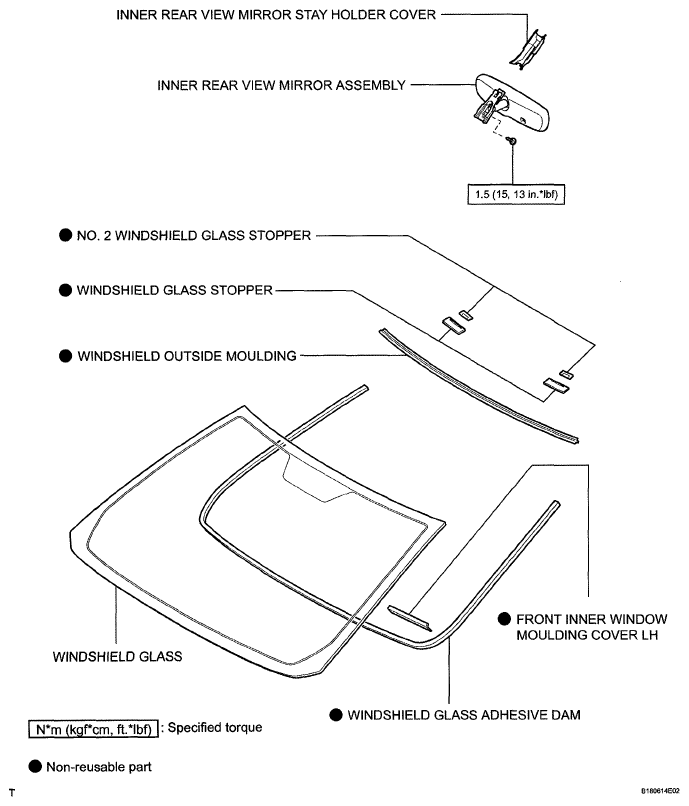

Fig 3: Identifying Windshield Glass Replacement Components (3 Of 4)
G05636376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

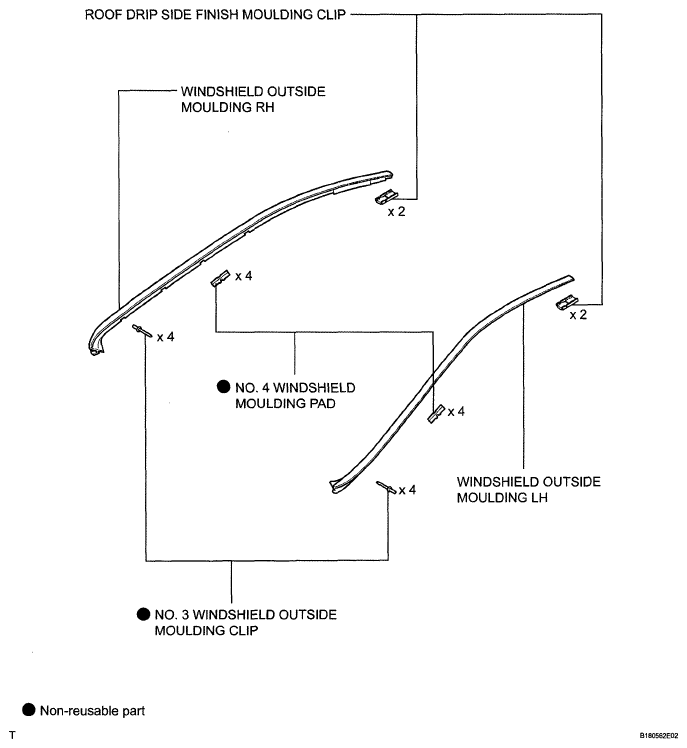

Fig 4: Identifying Windshield Glass Replacement Components (4 Of 4)
G05636377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
