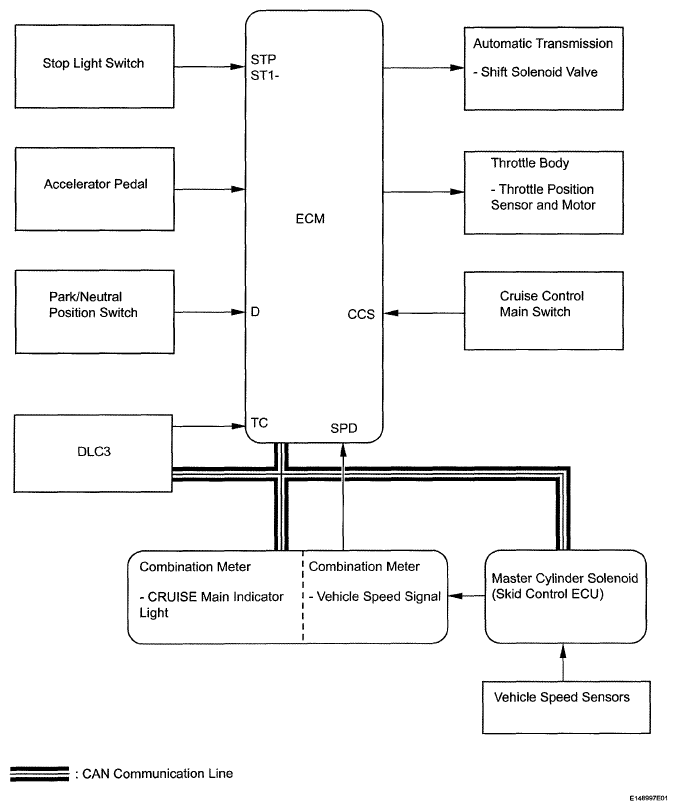

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION LINE REFERENCE
| Transmitter |
Receiver |
Signal |
Communication Line |
| ECM |
Combination Meter |
CRUISE main indicator operation signal |
CAN |
