Integration Relay: Components

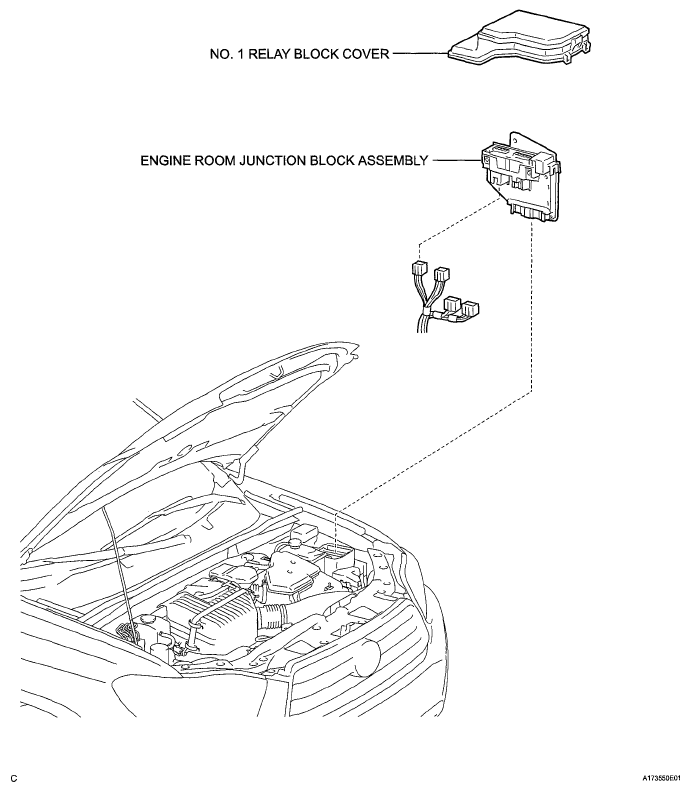

Fig 1: Identifying Integration Relay Components
G05625778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
