DTC P0617 Starter Relay Circuit High: Wiring Diagram

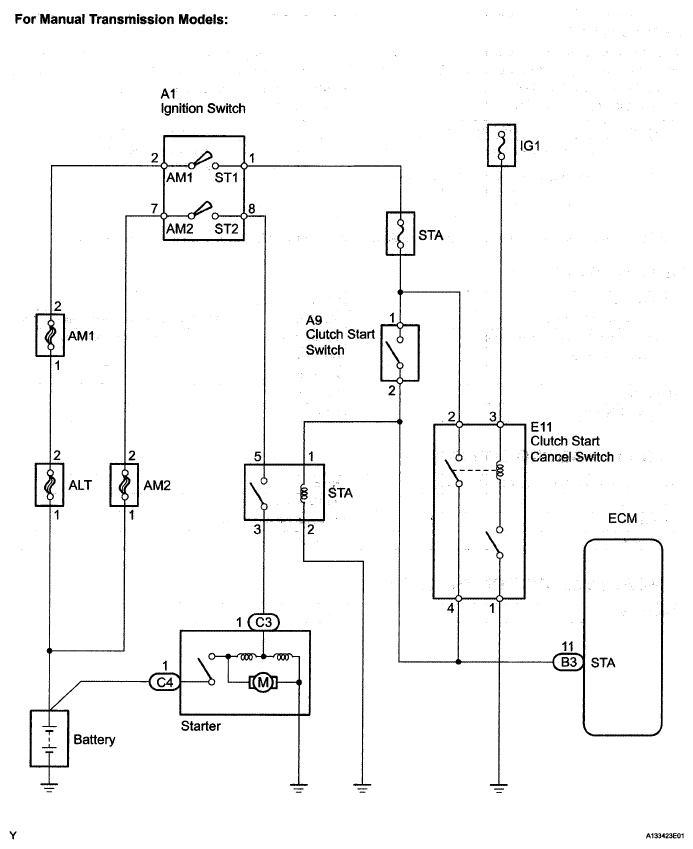

Fig 1: Identifying Starter Relay Circuit - Wiring Diagram (For Manual Transmission Models)
G05108788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

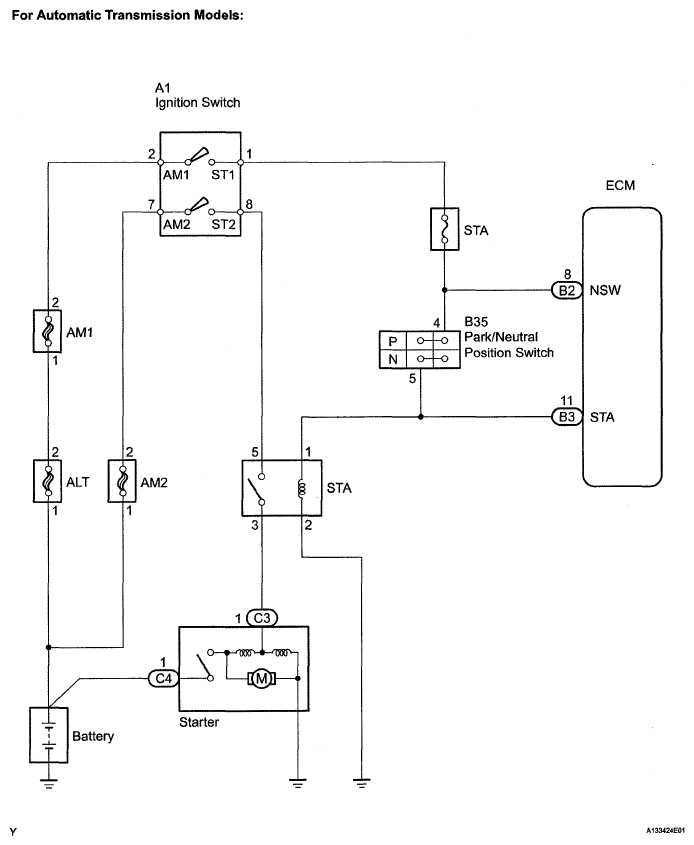

Fig 2: Identifying Starter Relay Circuit - Wiring Diagram (For Automatic Transmission Models)
G05108789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
