DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

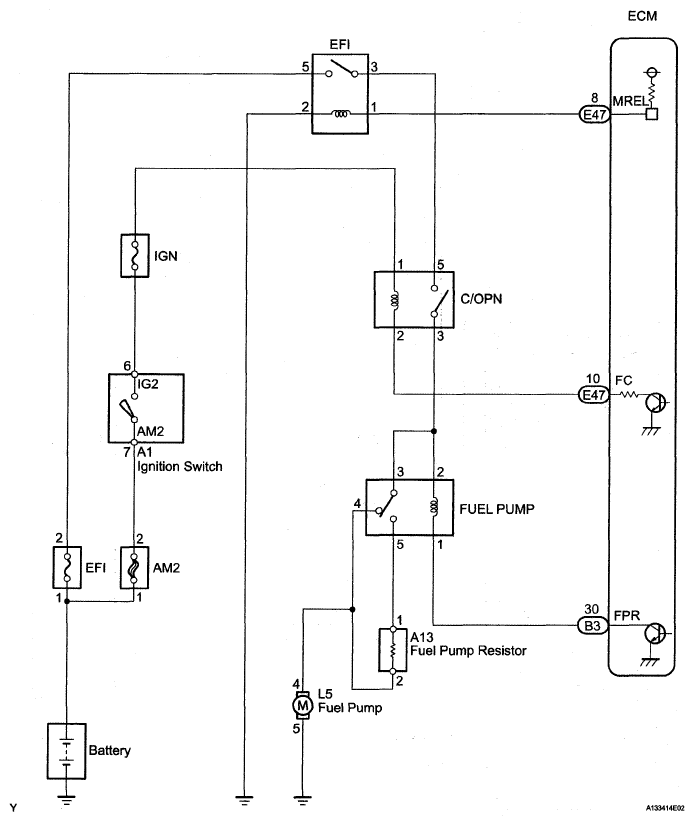

Fig 1: Identifying Fuel Pump Primary Circuit - Wiring Diagram
G05108699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
