DTC P0571/52 Stop Light Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

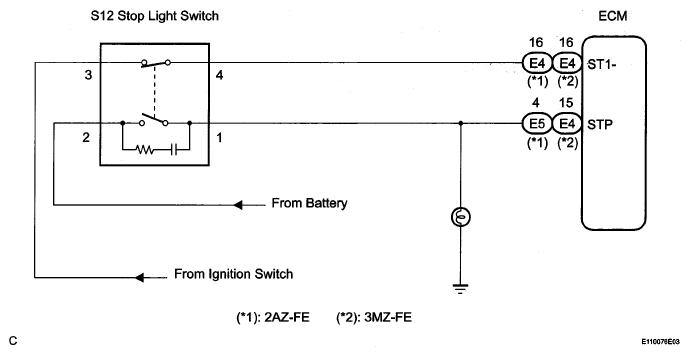

Fig 1: Stop Light Switch - Wiring Diagram
G05131890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
