How To Determine Bolt Strength

Bolt Type

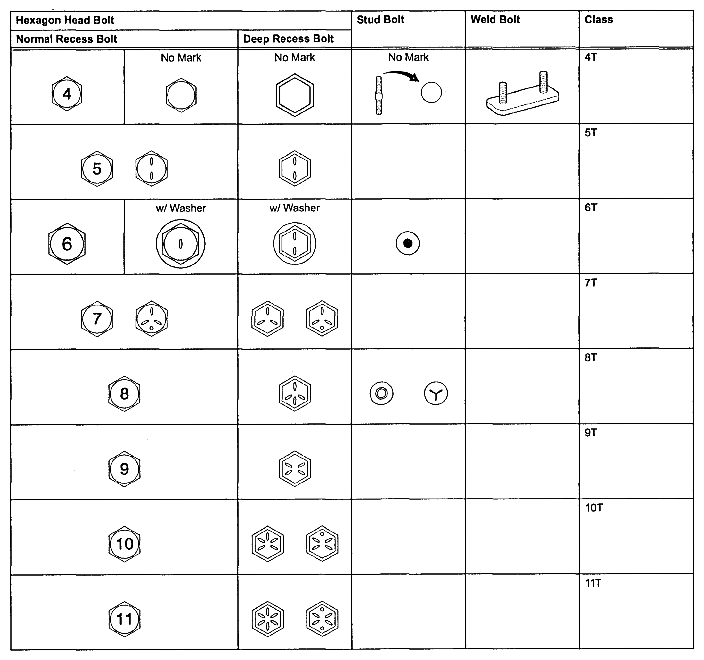

Fig 1: Identifying Standard Bolt Specification Table
G04828001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
