Accelerator Pedal: Components

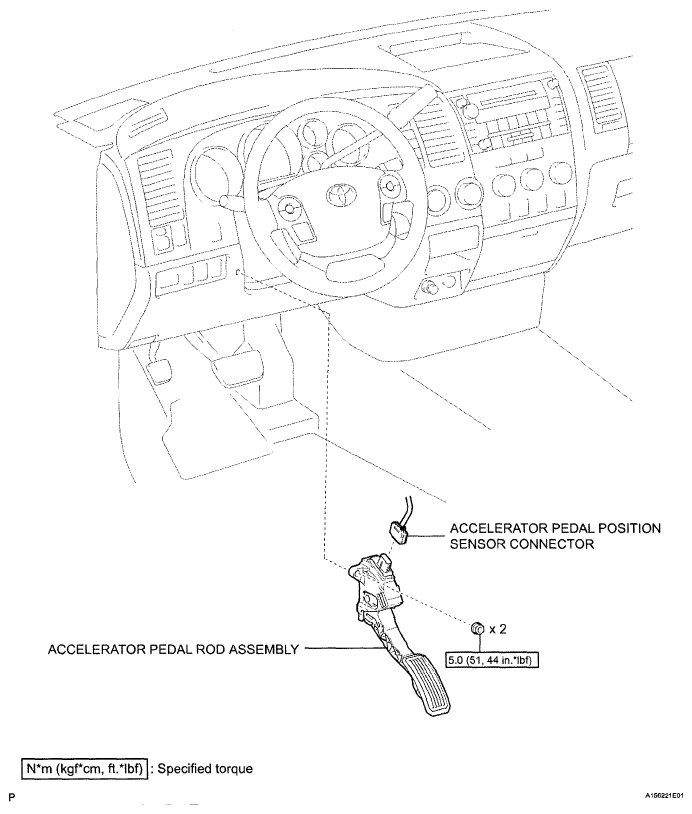

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G05149571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
