Fuel Pump: Components

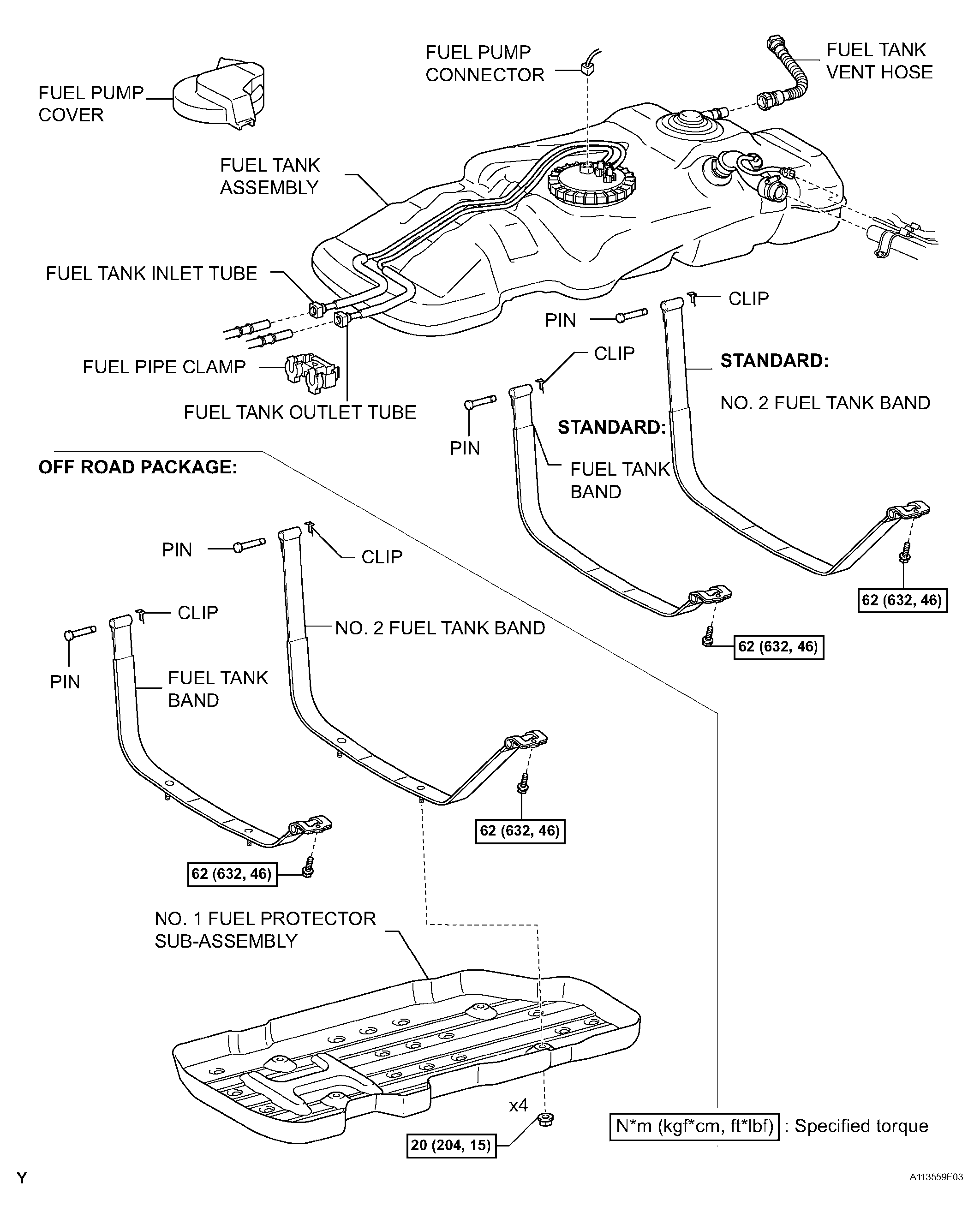

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G04409146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

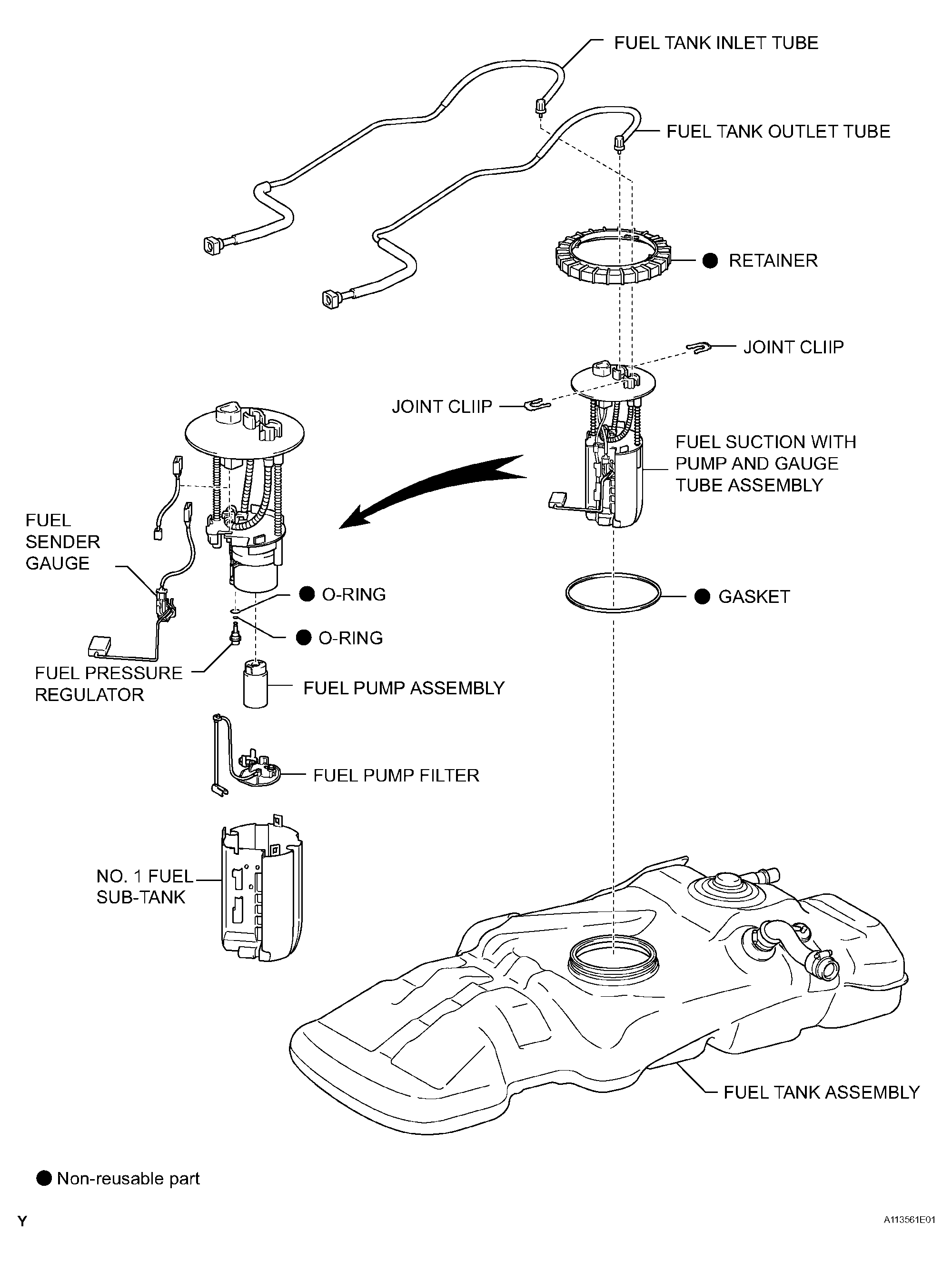

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 2)
G04409147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
