Sienna LE, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Power Slide Door (LH)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Slide Door (LH): Notes

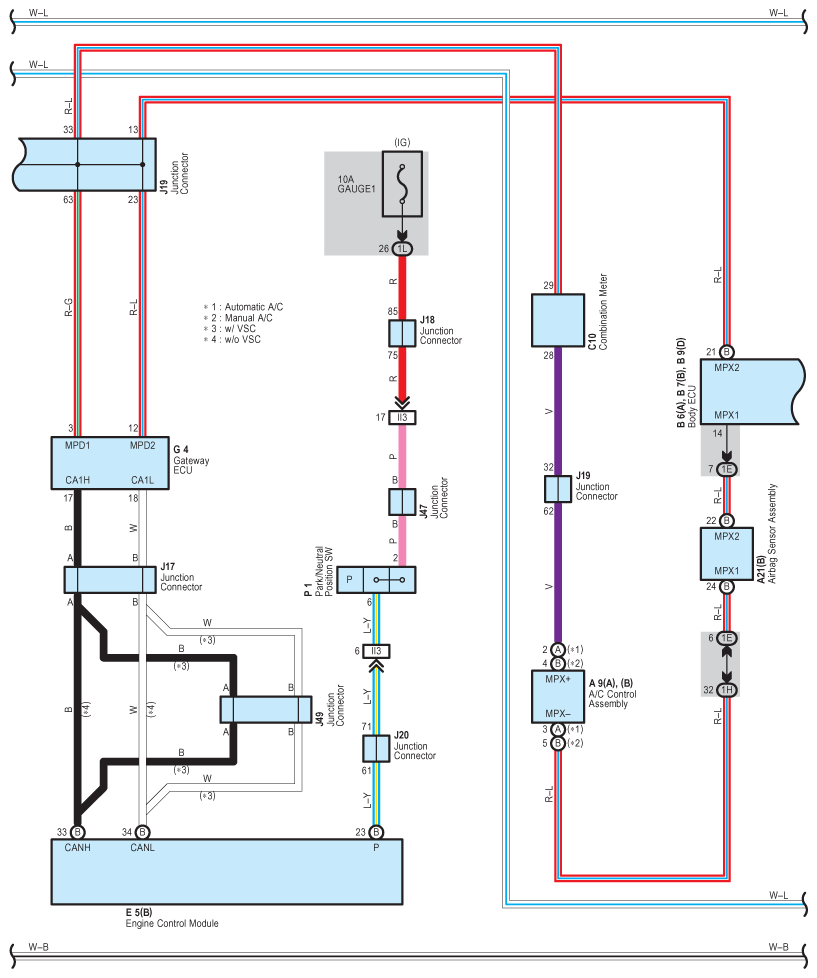

Fig 1: LH Power Slide Door System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

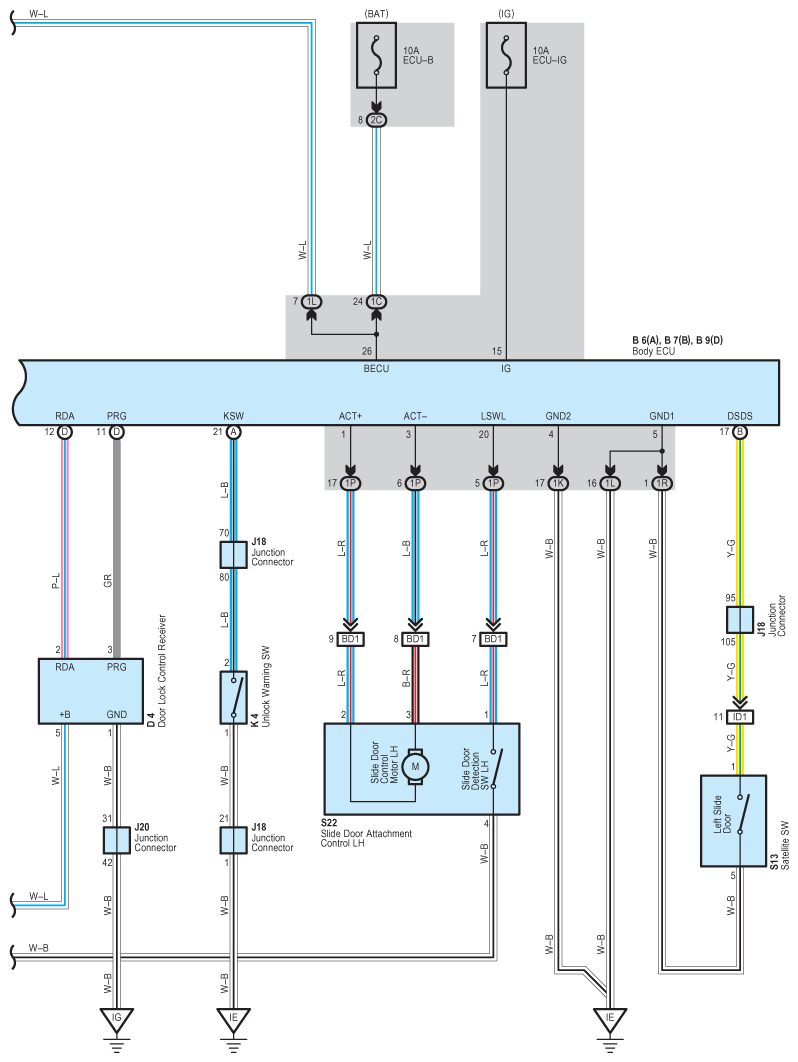

Fig 2: LH Power Slide Door System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

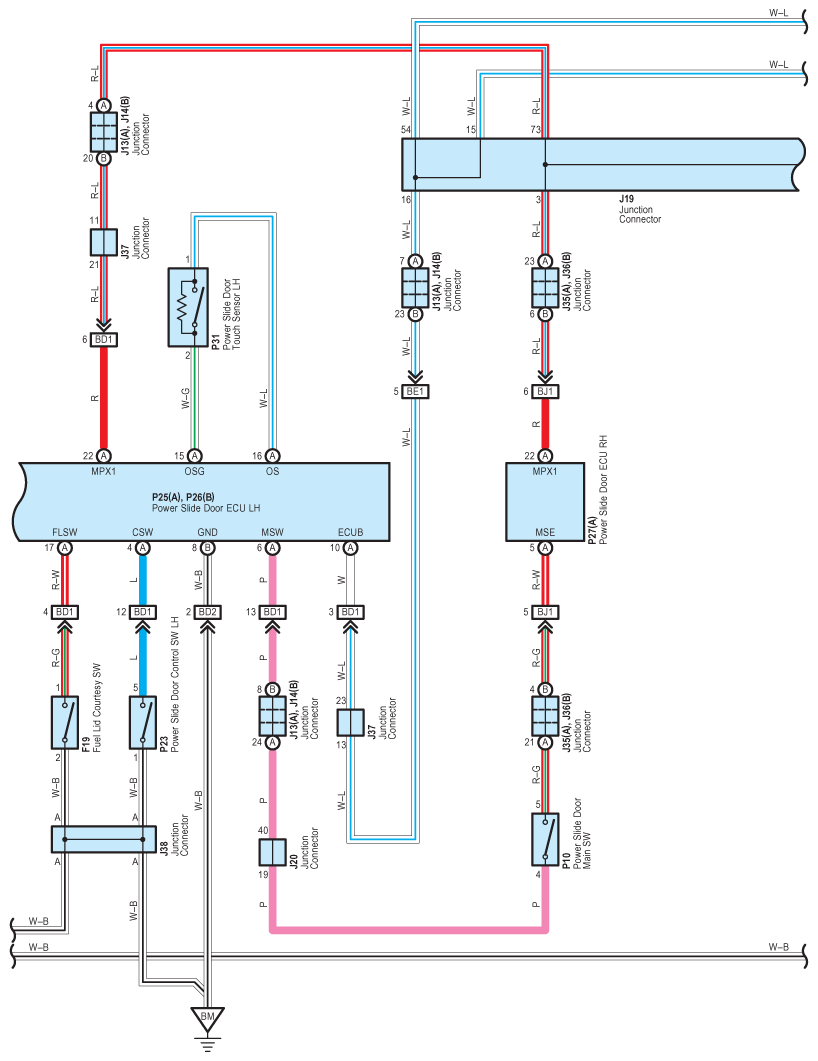

Fig 3: LH Power Slide Door System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

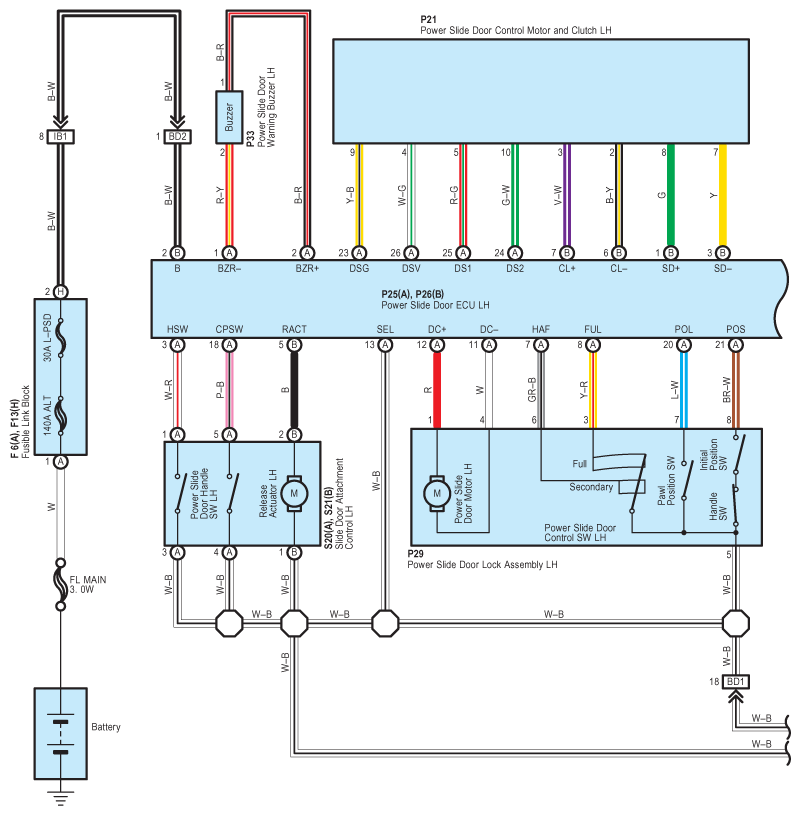

Fig 4: LH Power Slide Door System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
