Rear Seat Outer Belt Assembly: Components

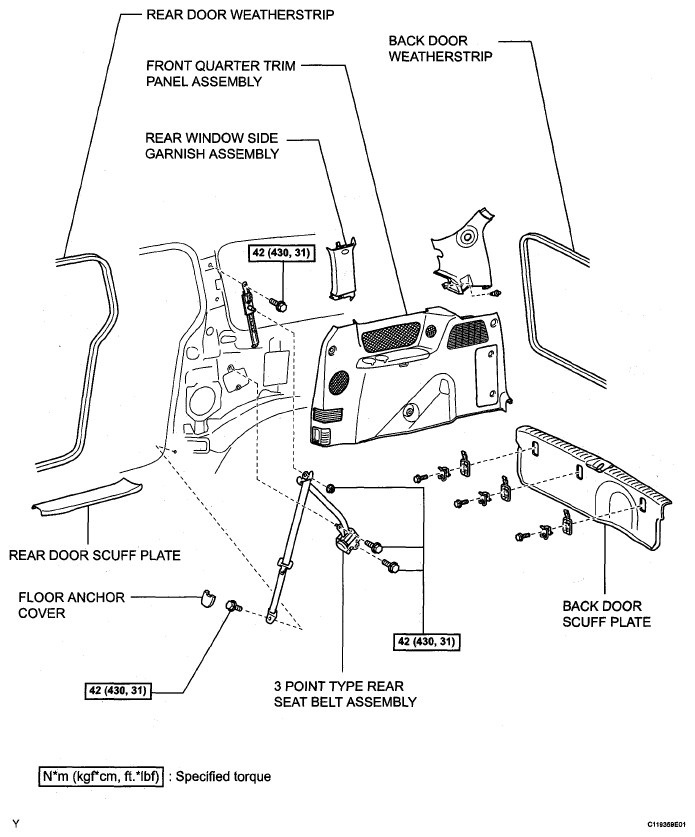

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 3)
G05140517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

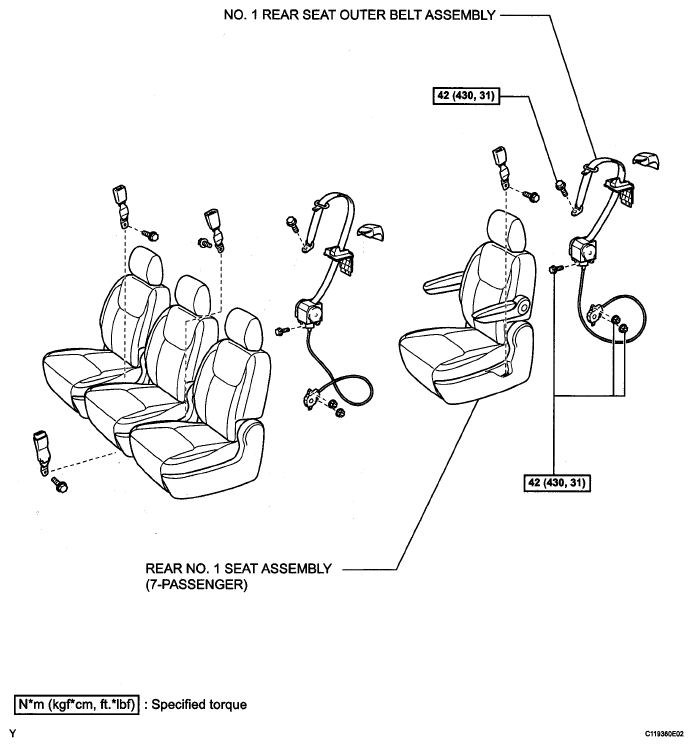

Fig 2: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 3)
G05140518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

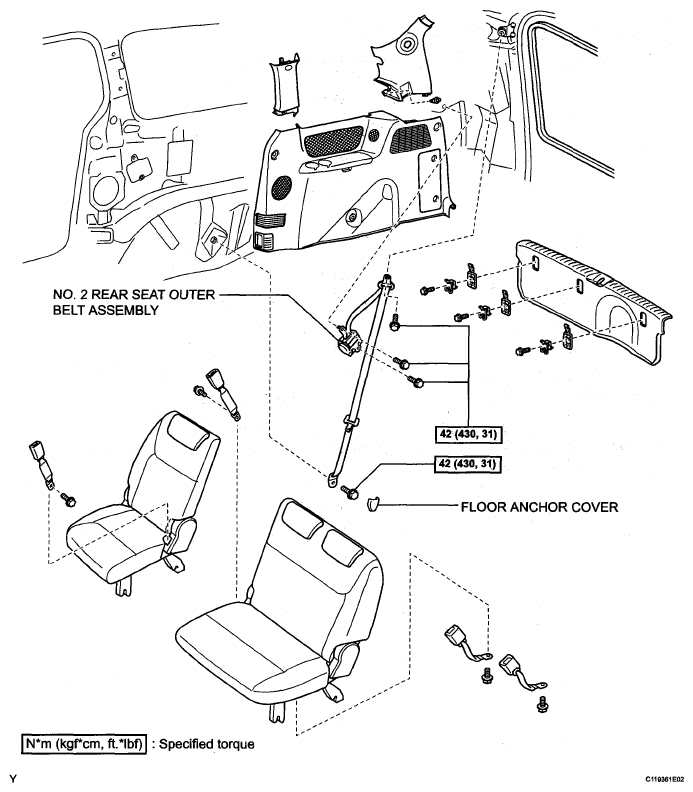

Fig 3: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 Of 3)
G05140519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
