Navigation Antenna: Components

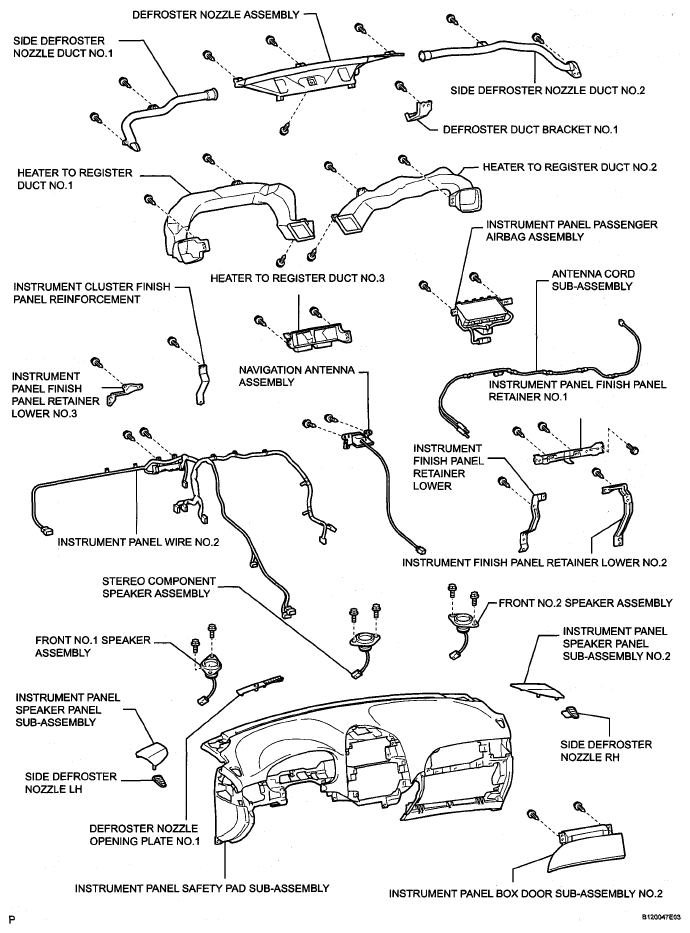

Fig 1: Exploded View Of Navigation Antenna Components With Torque Specifications (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig 2: Exploded View Of Navigation Antenna Components (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
