Multiplex Communication System - BEAN Bus: Notes

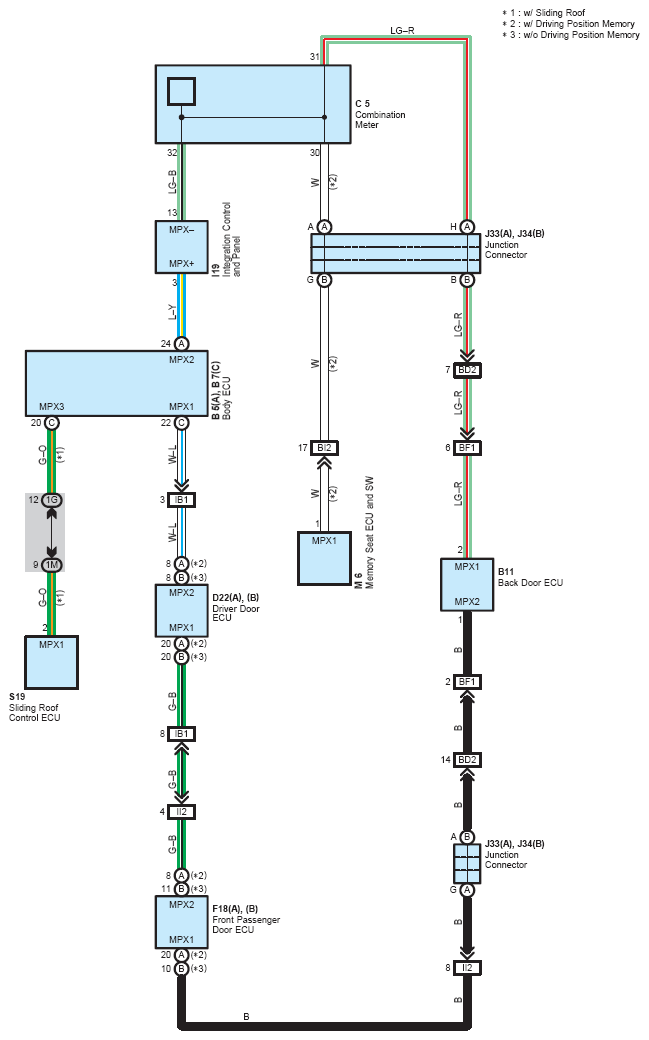

Fig 1: Multiplex Communication System Wiring Diagram (BEAN Bus)
G08861561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
