Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

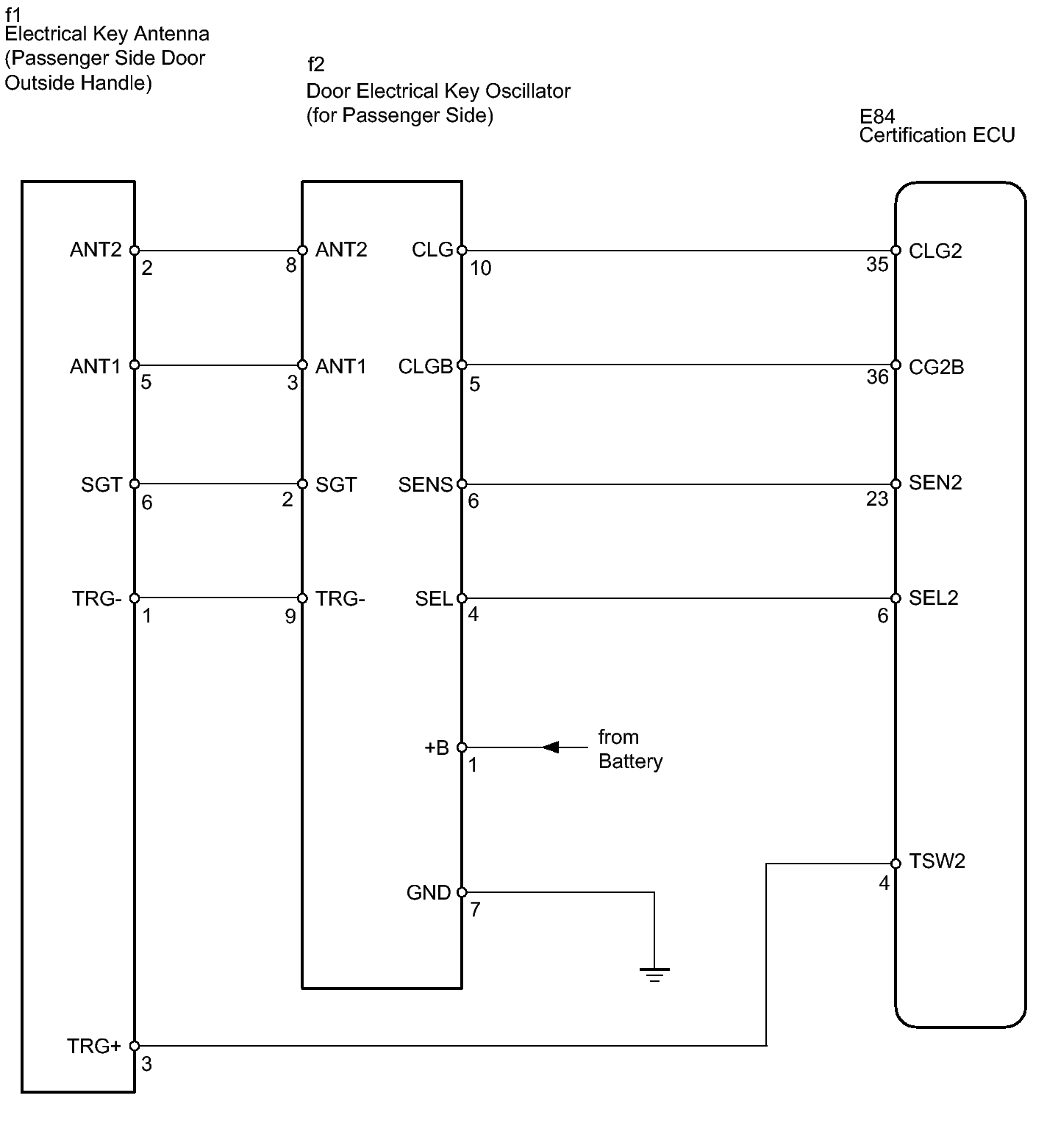

Fig 1: Front Passenger Side Door Entry Lock And Unlock Functions Do Not Operate -- Wiring Diagram
GTY240022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
