System Diagram

WARNING: This page is about a different variant/trim than selected.

The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch.

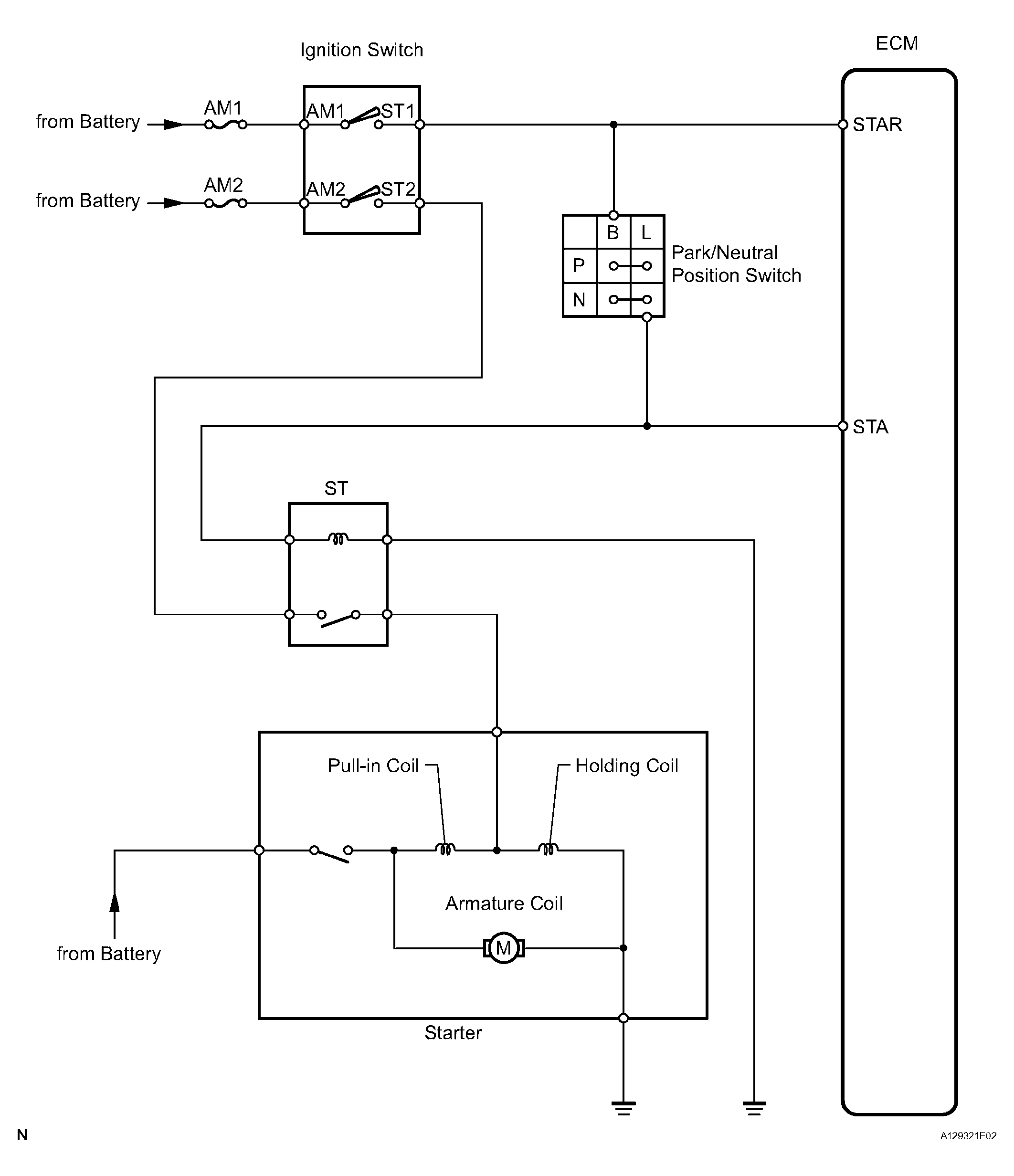

Fig 1: Starting System Diagram
G04486067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
