Ignition Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Install the ignition switch with the 2 screws.

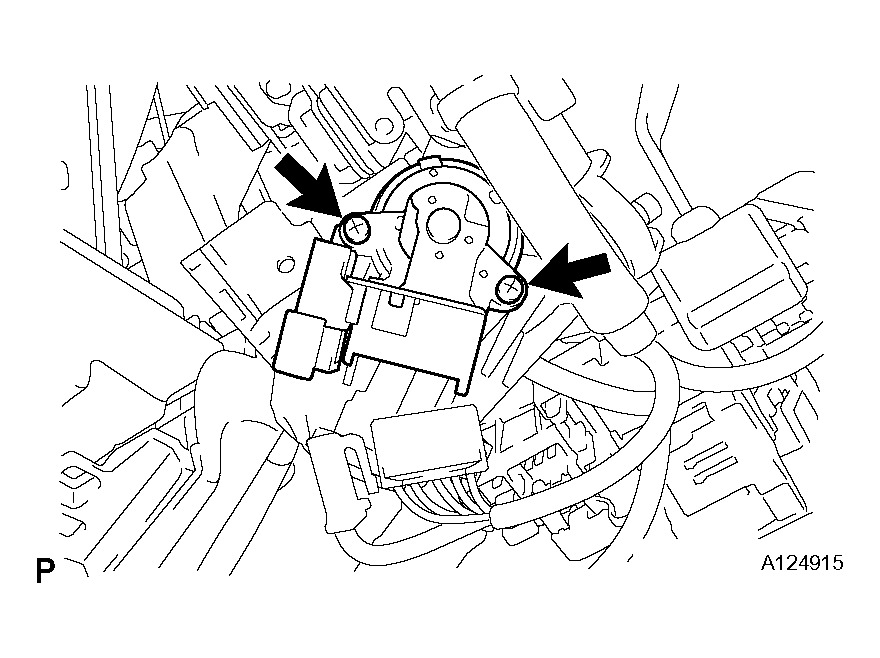

      Fig 1: Installing Ignition Switch Assembly
      G04486115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the ignition key cylinder light connector.
    3. Connect the ignition switch connector.

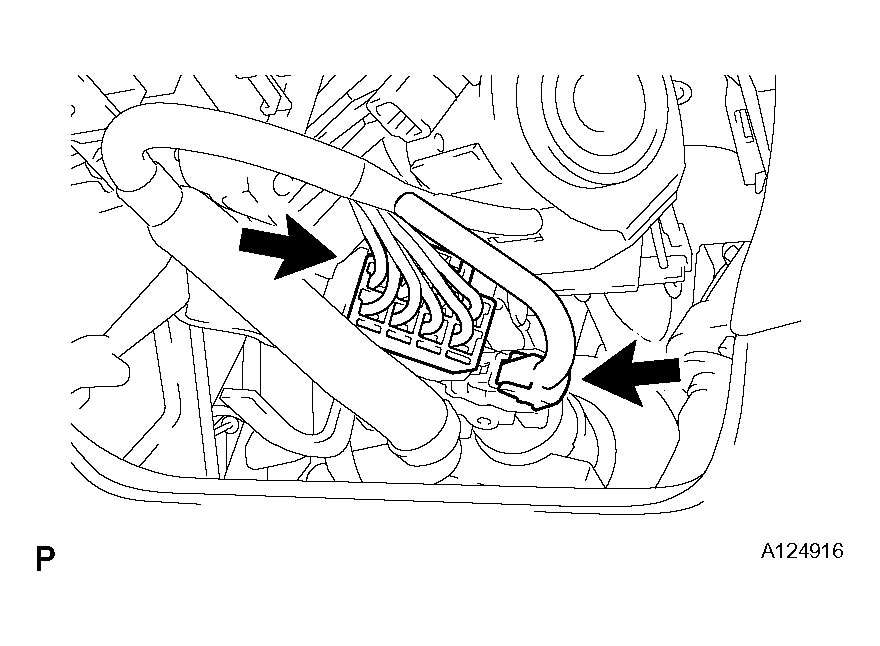

      Fig 2: Installing Ignition Switch Connectors
      G04486116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING COLUMN COVER LOWER
    1. Install the steering column cover lower.
      Fig 3: Installing Lower Steering Column Cover
      G04489731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
