HV Battery: Components

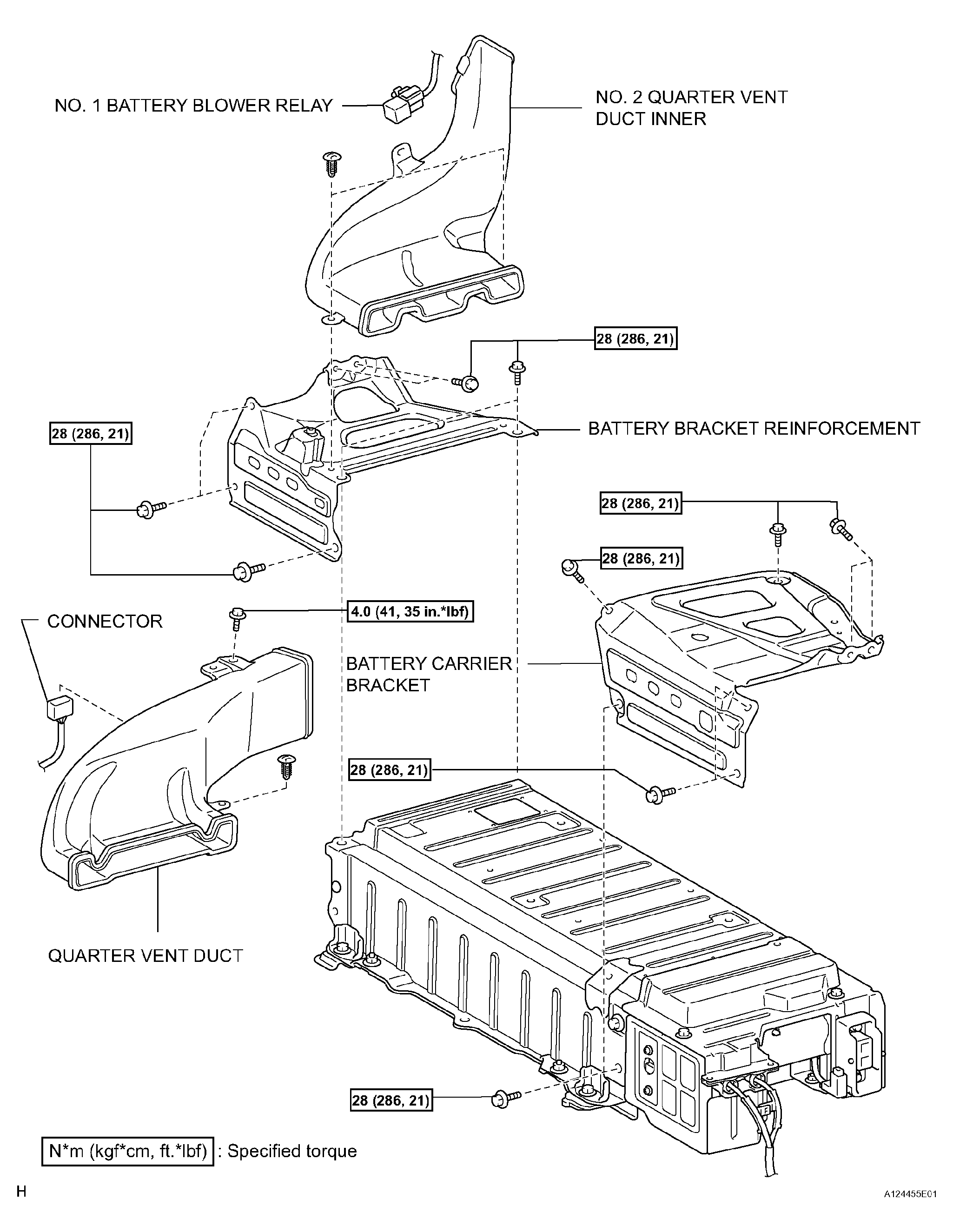

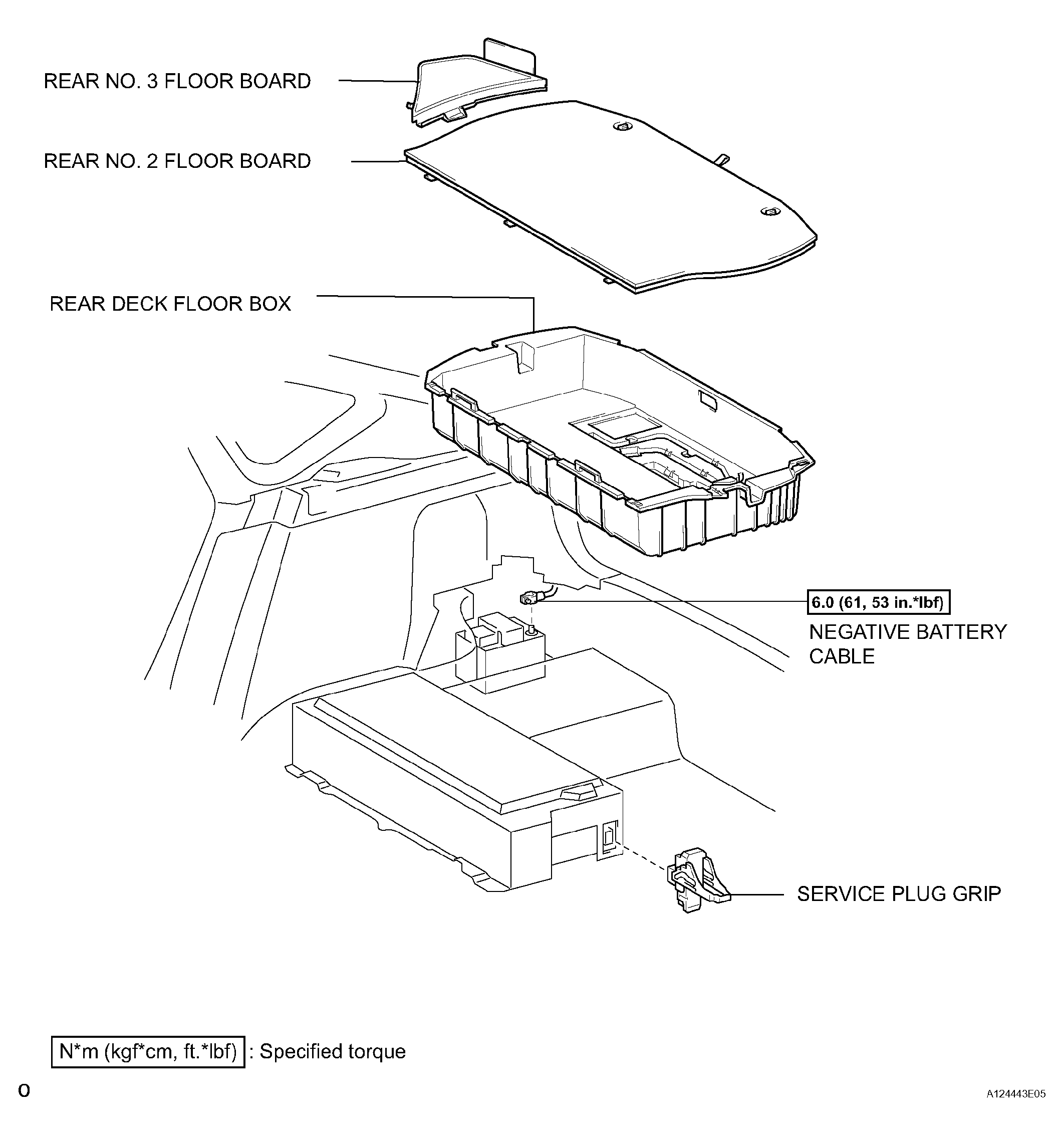

Fig 1: HV Battery Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

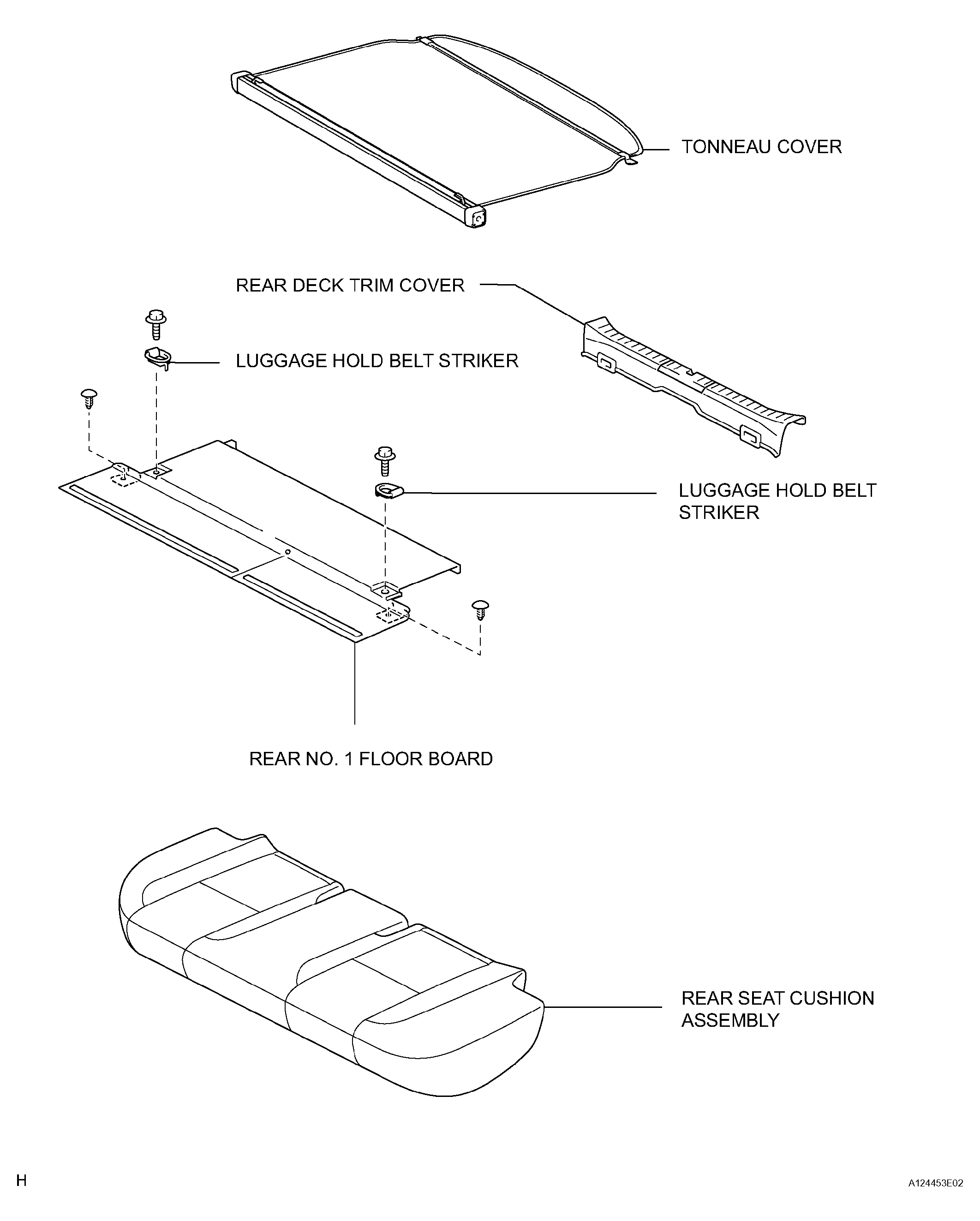

Fig 2: HV Battery Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

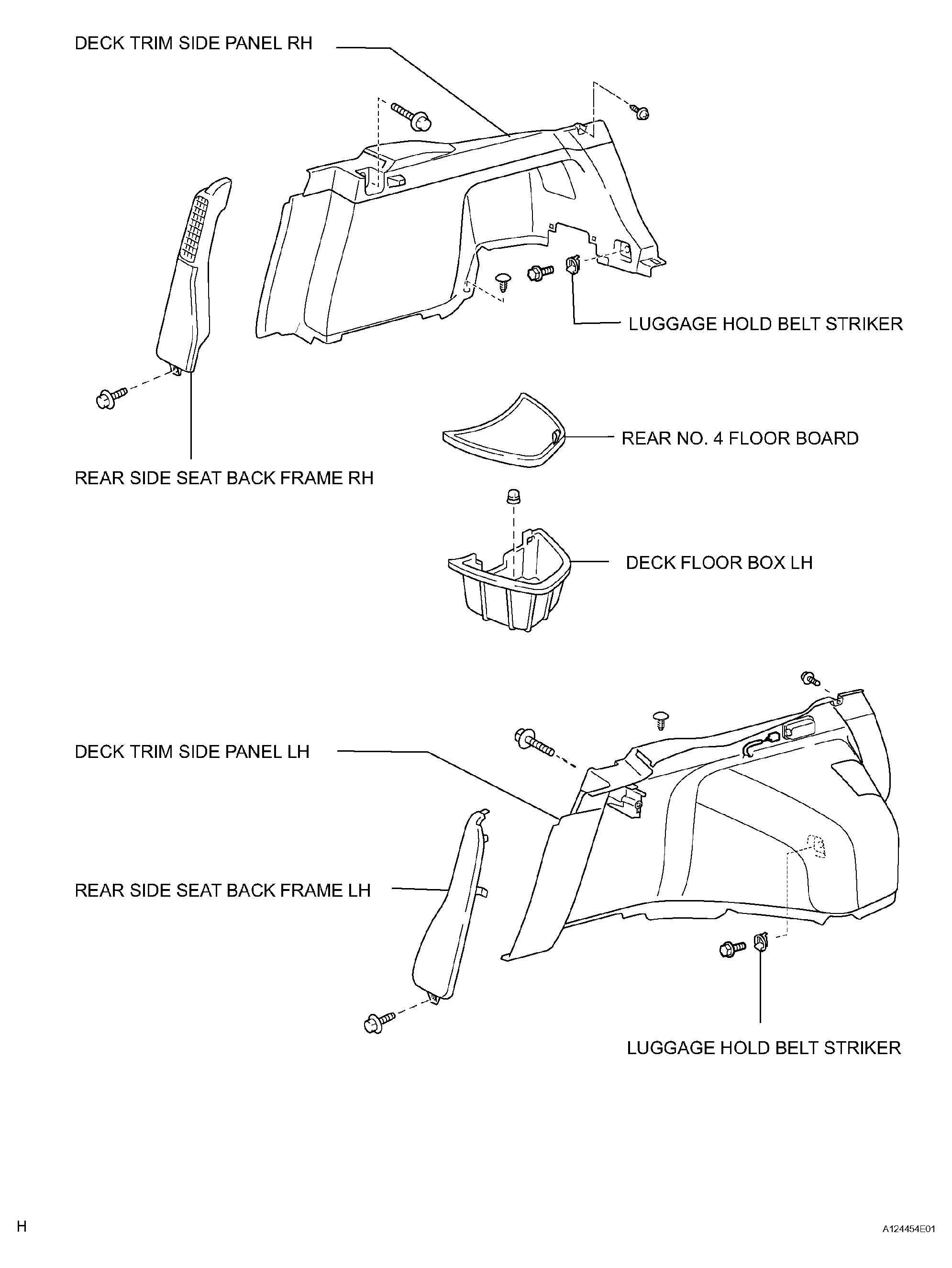

Fig 3: HV Battery Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: HV Battery Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

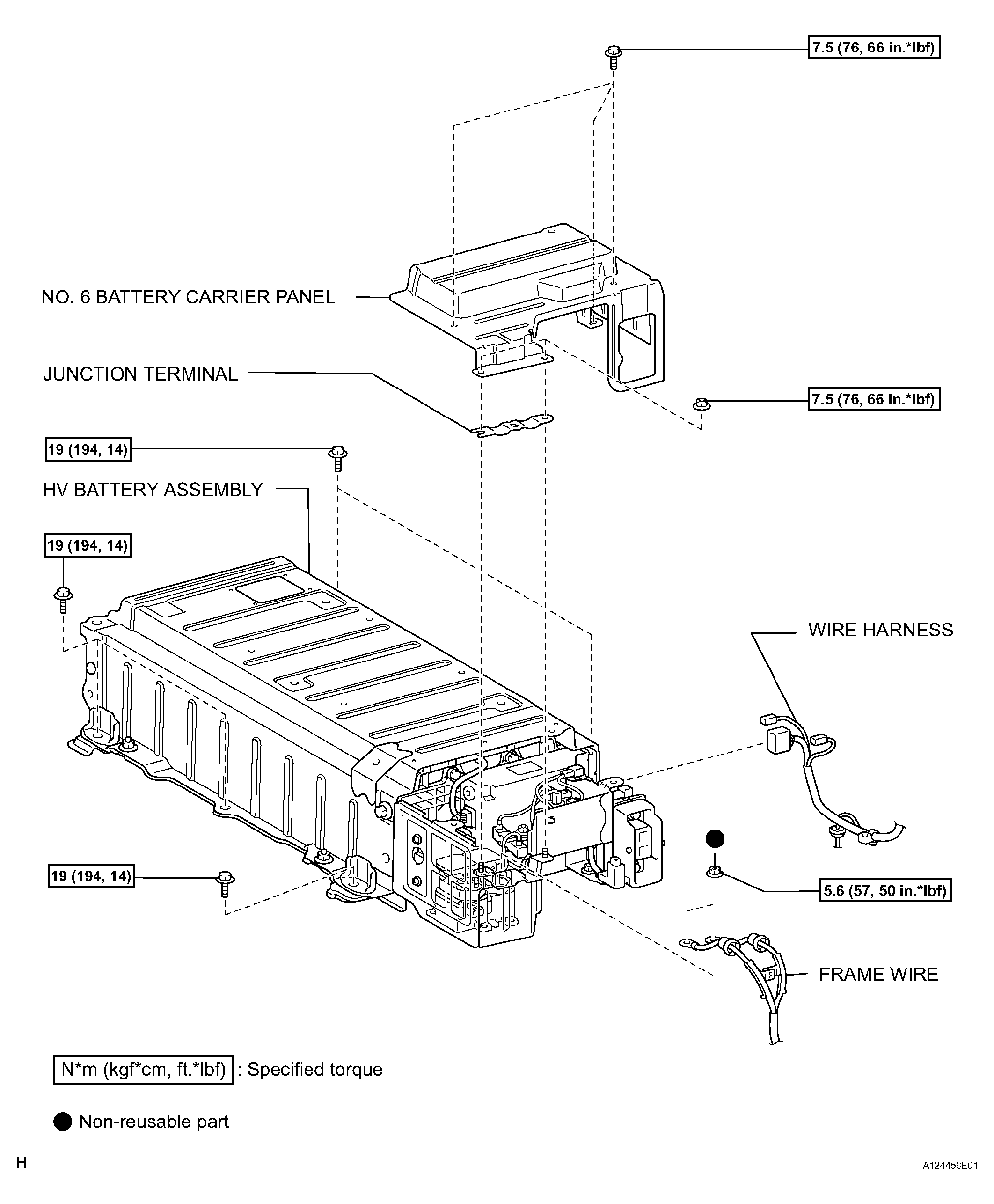

Fig 5: HV Battery Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

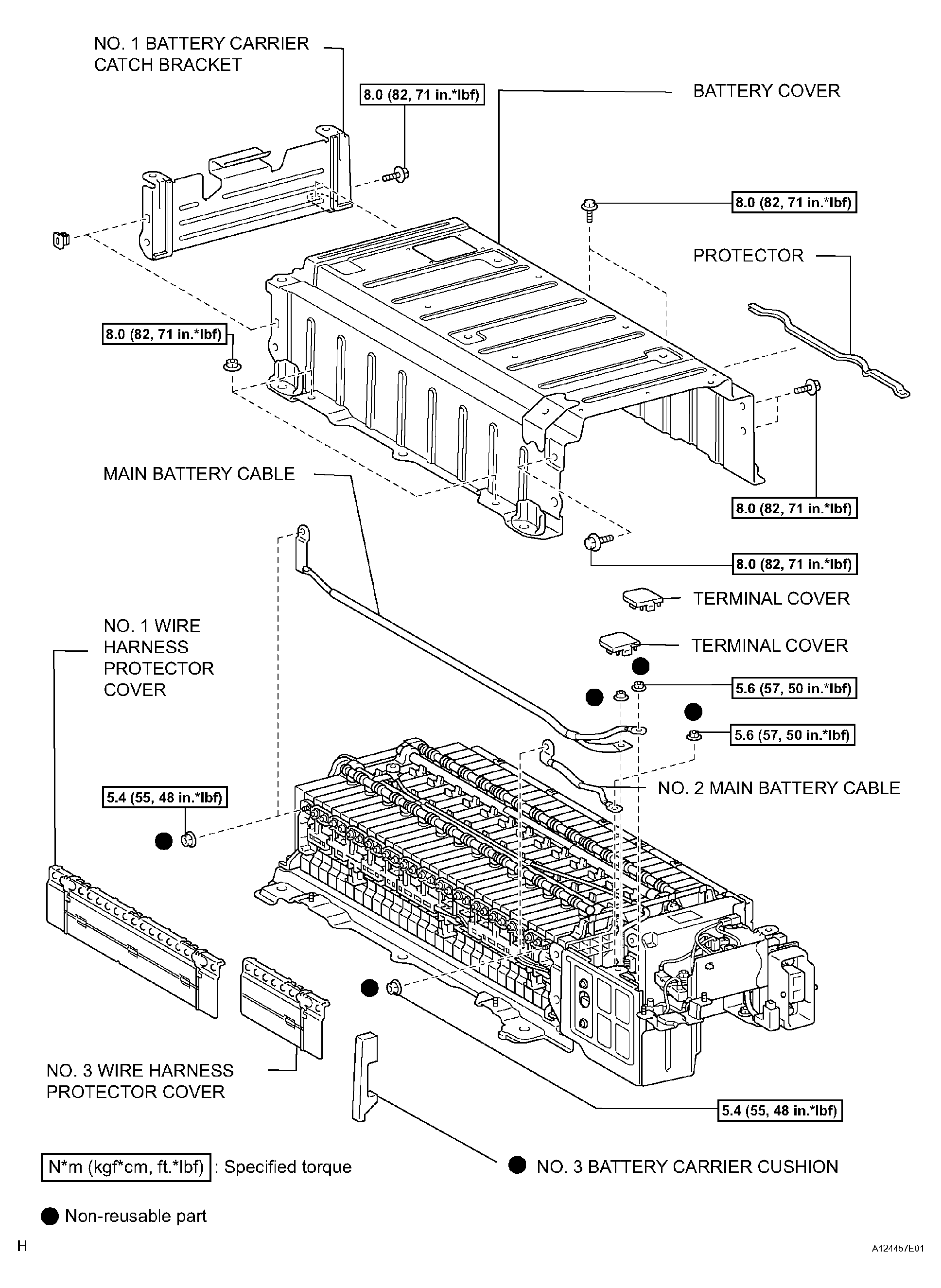

Fig 6: HV Battery Replacement Components With Torque Specifications (6 Of 9)

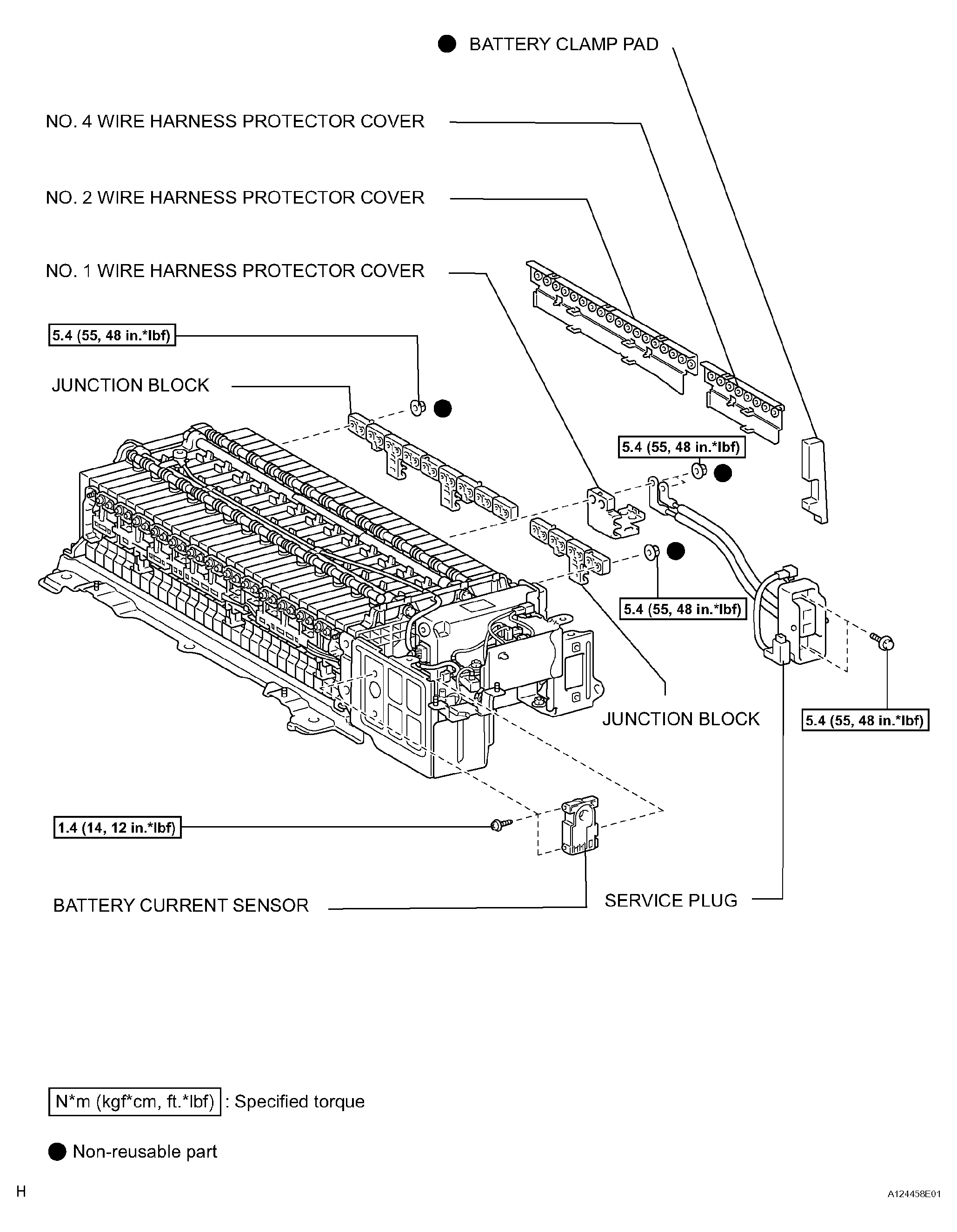

Fig 7: HV Battery Replacement Components With Torque Specifications (7 Of 9)

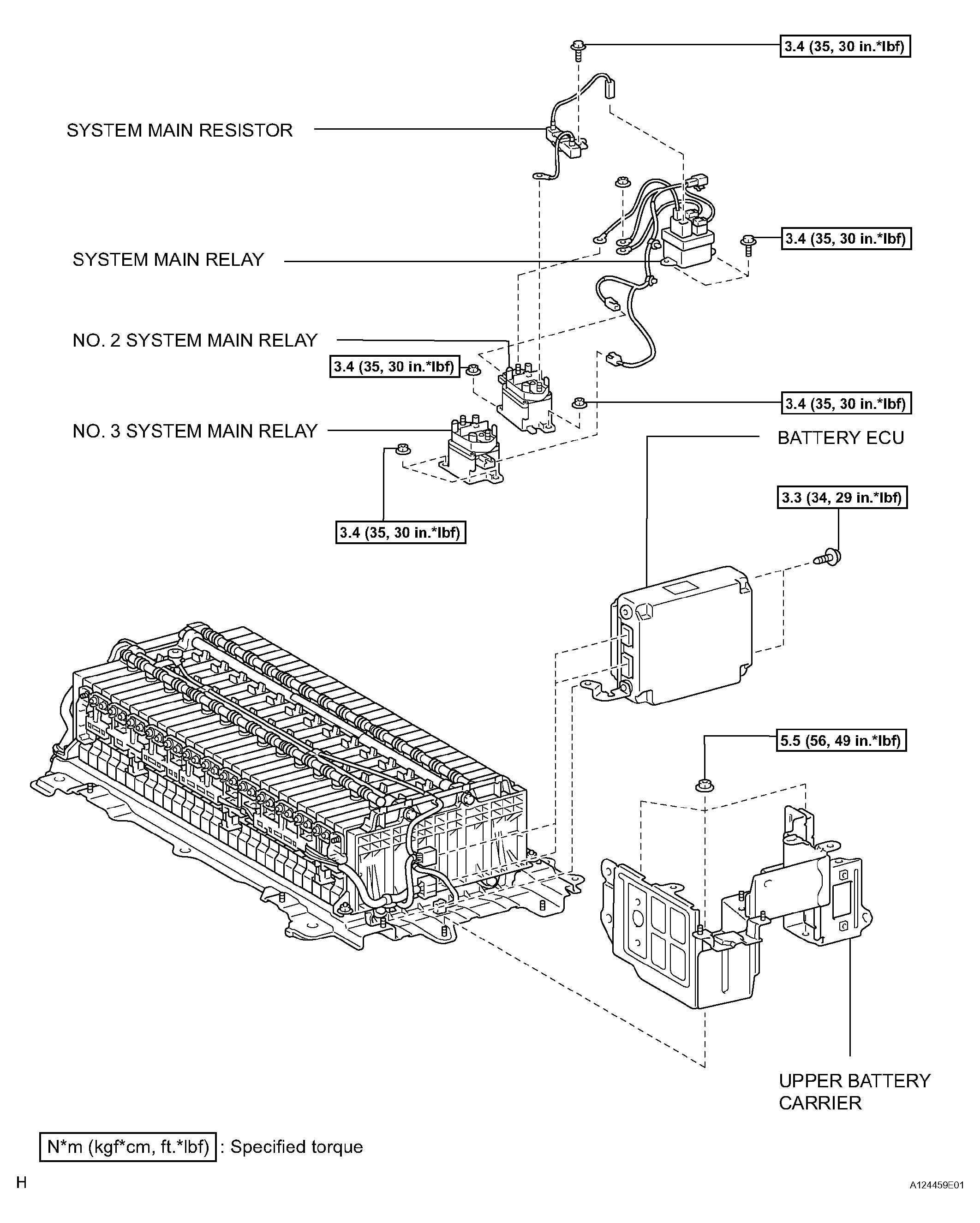

Fig 8: HV Battery Replacement Components With Torque Specifications (8 Of 9)

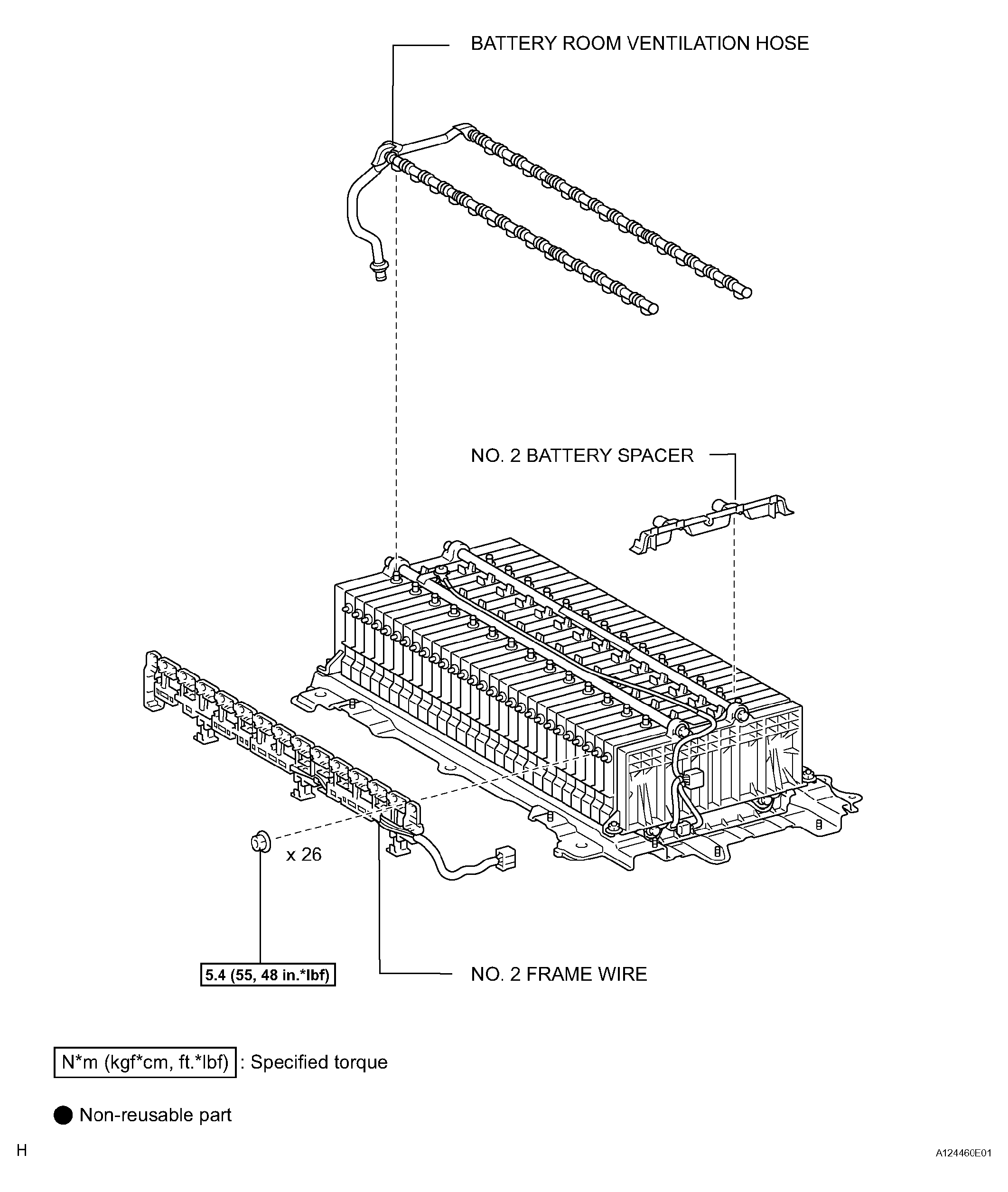

Fig 9: HV Battery Replacement Components With Torque Specifications (9 Of 9)
