Air Conditioning: Condenser: Disassembly

  1. REMOVE COOLER DRYER
    1. Using a 14 mm hexagon wrench, remove the cap from the modulator.

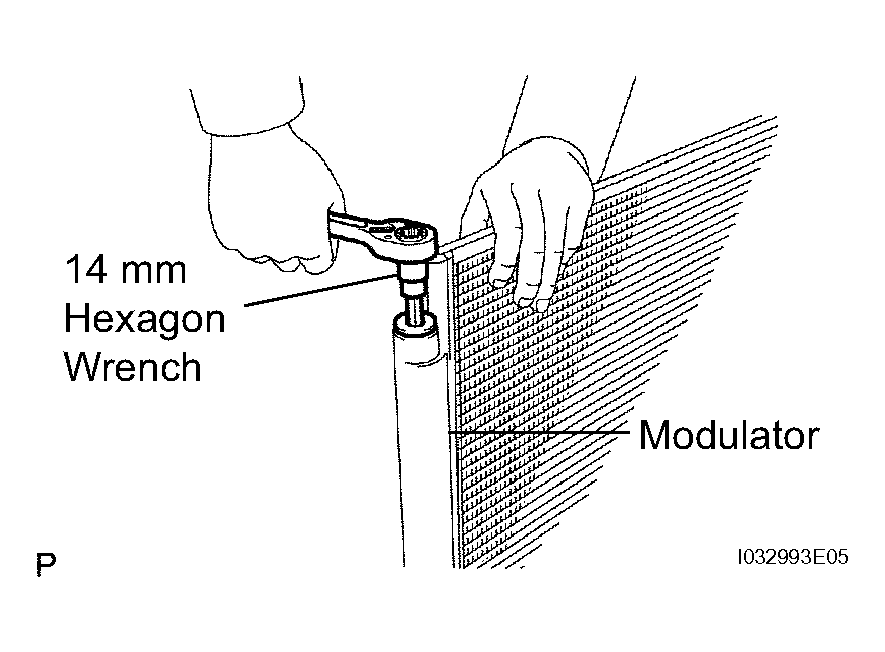

      Fig 1: Removing Cap From Modulator
      G04475223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the cap.
      Fig 2: Removing O-Ring From Cap
      G04475224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using pliers, remove the cooler dryer.

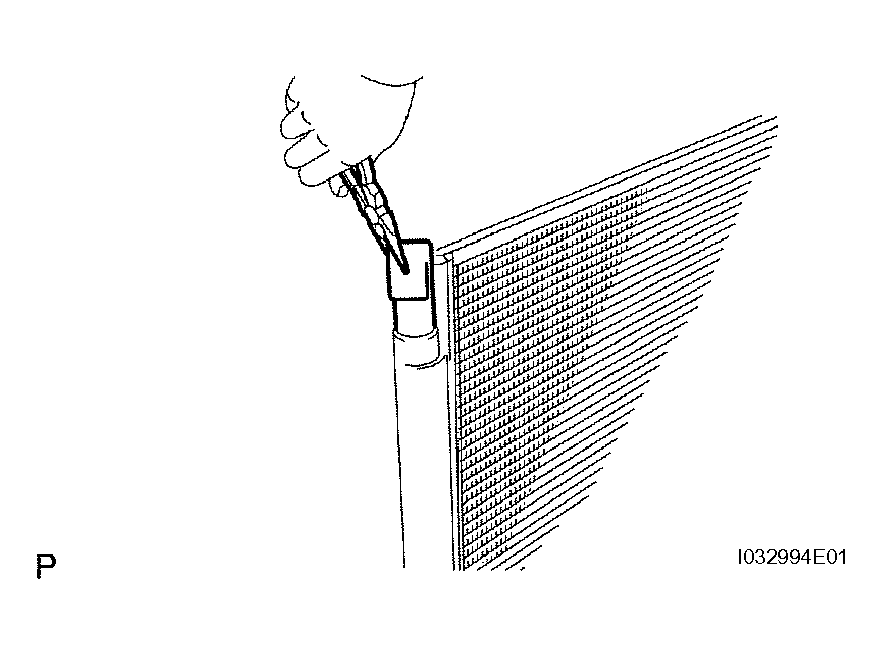

      Fig 3: Removing Cooler Dryer
      G04475225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
