Blower Unit: Reassembly

  1. INSTALL CLEAN AIR FILTER
    1. Install the clean air filter to the air filter cover plate.
    2. Attach the 2 claws to install the air filter cover.

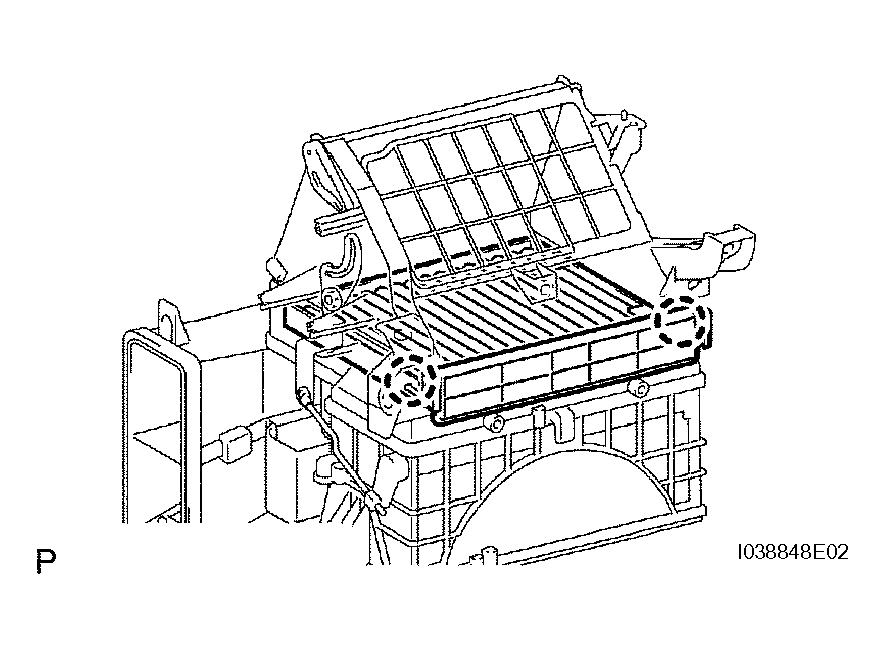

      Fig 1: Installing Clean Air Filter
      G04475197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER WITH FAN MOTOR SUBASSEMBLY
    1. Install the blower with fan motor with the 3 screws.

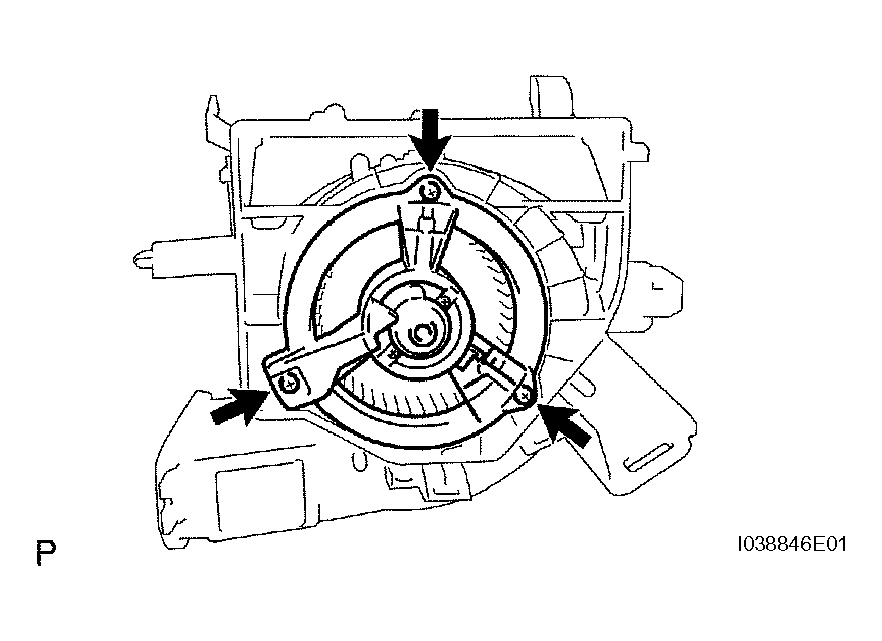

      Fig 2: Installing Blower With Fan Motor
      G04475198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 COOLER WIRING HARNESS SUBASSEMBLY
    1. Install the No. 2 cooler wiring harness to the blower with fan motor.

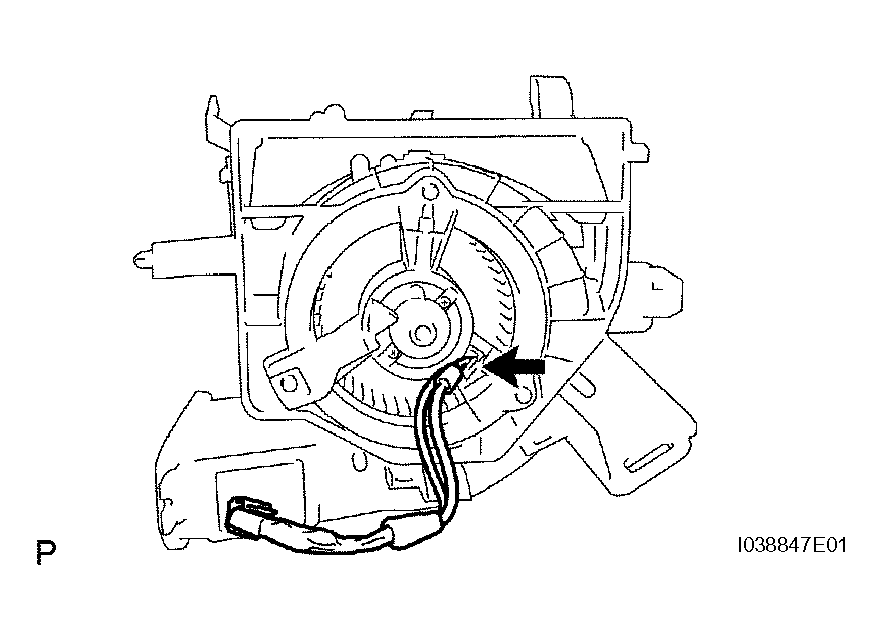

      Fig 3: Installing No 2 Cooler Wiring Harness To Blower With Fan Motor
      G04475199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the blower motor cover with the 5 screws.
      Fig 4: Installing Blower Motor Cover
      G04475200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BLOWER MOTOR CONTROL
    1. Install the blower motor control with the 2 screws.
    2. Connect the connector.
      Fig 5: Installing Blower Motor Control
      G04475201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR INLET SERVO MOTOR
    1. Install the air inlet servo motor with the 3 screws.
      Fig 6: Installing Air Inlet Servo Motor
      G04475202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
