Blower Unit: Installation

INSTALL BLOWER ASSEMBLY
1. Install the blower with the 3 screws.
  HINT:

  Use a repair screw (part No. 90159-70003) if the screw (A) removed before cannot be tightened.

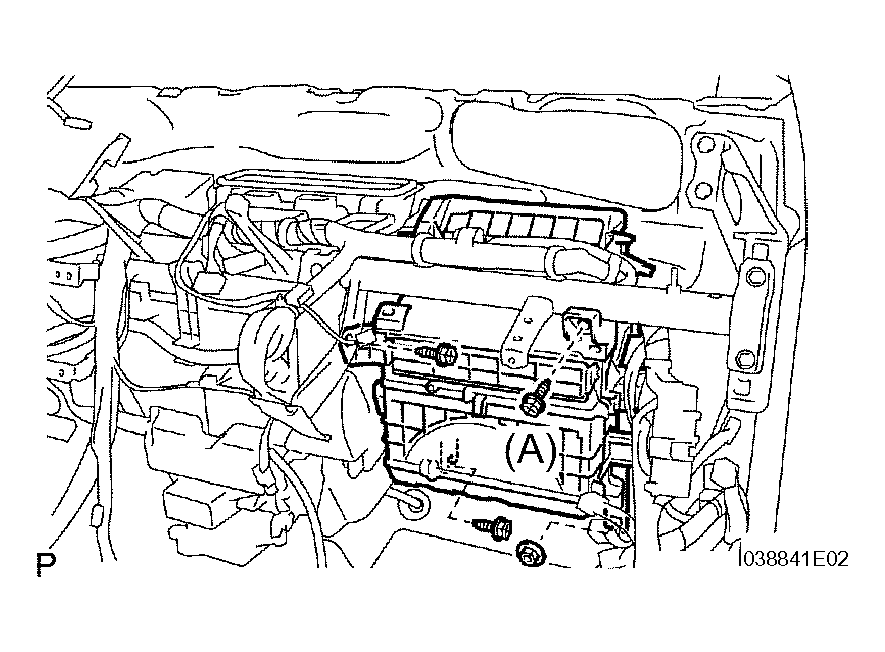

  Fig 1: Installing Blower Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 4 clamps to connect the wire harness.
3. Connect the connectors.
4. Install the 10 connectors of the transponder key ECU.
INSTALL AIR DUCT SUB-ASSEMBLY
1. Install the air duct with the 2 screws.
INSTALL NO. 1 HEATER TO REGISTER DUCT
INSTALL NETWORK GATEWAY ECU
INSTALL ECU
INSTALL TRANSMISSION CONTROL ECU ASSEMBLY
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
HINT:

Refer to the installation procedures for the instrument panel sub-assembly lower (see INSTALLATION ).
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY
HINT:

Refer to the installation procedures for the instrument panel with the passenger airbag assembly (see INSTALLATION ).

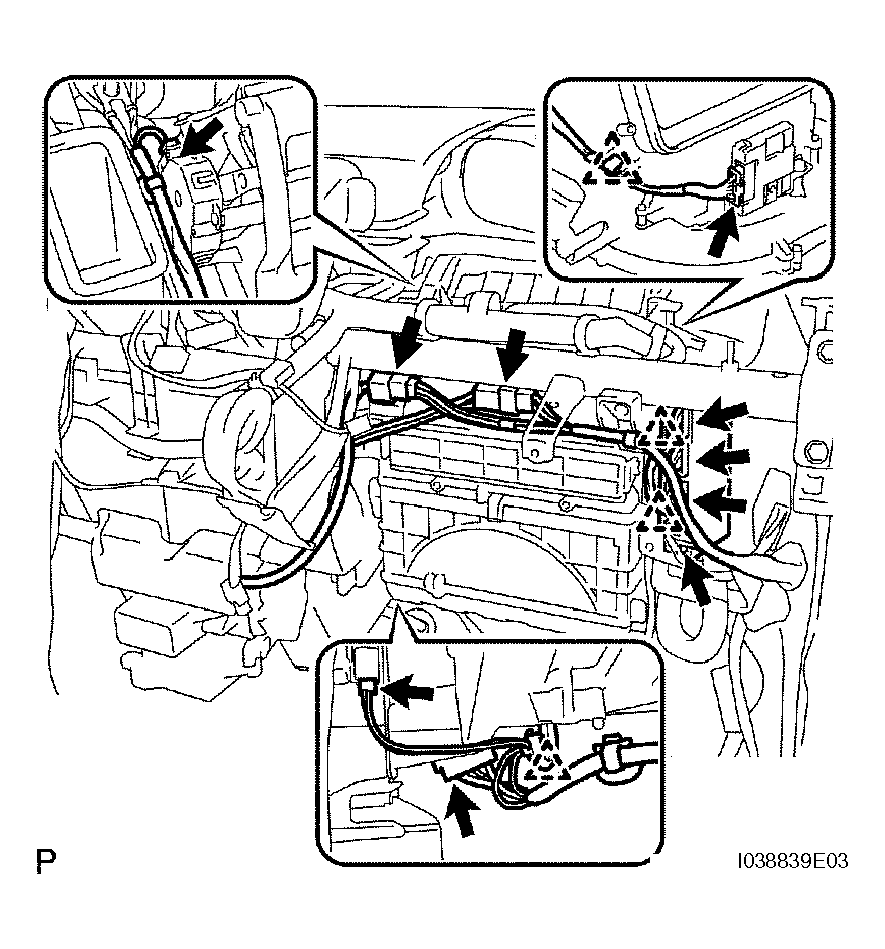

Fig 2: Connecting Connectors And Wire Harness
