Inspection Procedure

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG) and press the intelligent tester main switch ON.
3. Read the DATA LIST according to the displays on the tester.

   Power source control ECU

   ITEM NORMAL CONDITION CHART



   Item	Measurement Item / Range (Display)	Normal Condition	Diagnostic Note
   ST SW1	Start Switch 1 / ON or OFF	ON: Power switch ON (IG) OFF: Power switch OFF	-
   ST SW2	Start Switch 2 / ON or OFF	ON: Power switch ON (IG) OFF: Power switch OFF	-

   OK : ON (power switches 1 and 2 are ON (IG)) appears on the screen

OK : REPLACE POWER SOURCE CONTROL ECU

NG : GO TO NEXT STEP

1. Disconnect the P11 power switch connector.
2. Disconnect the P6 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE TESTER CONNECTION SPECIFICATION



   Tester Connection	Specified Condition
   P11-5 (SS1) - P6-14 (SSW1)	Below 1 Ω
   P11-7 (SS2) - P6-37 (SSW2)	Below 1 Ω
   P11-6 - Body ground	Below 1 Ω
   P11-5 (SS2) or P6-14 (SSW1) - Body ground	10 kΩ or higher
   P11-7 (SS2) or P6-37 (SSW2) - Body ground	10 kΩ or higher

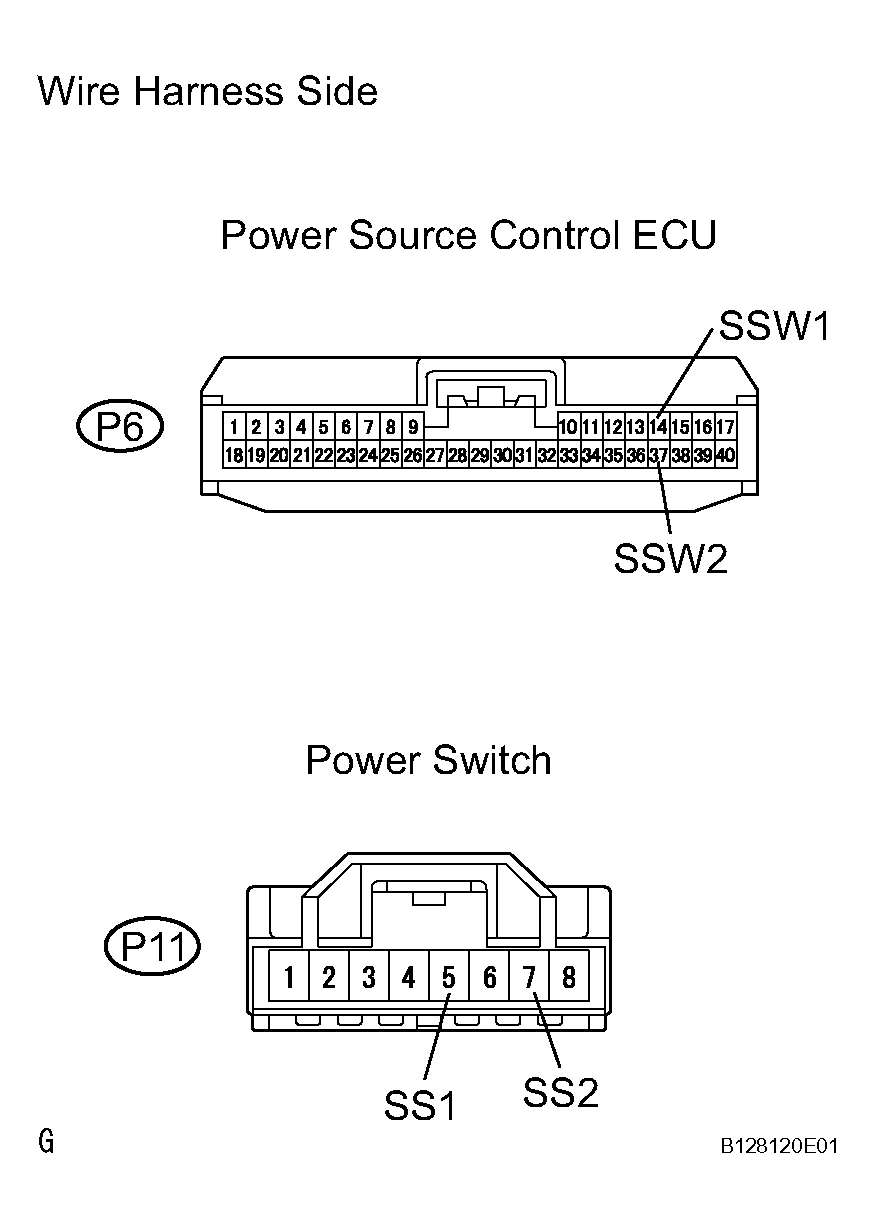

   Fig 1: Identifying Power Switch Control ECU & Power Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : GO TO NEXT STEP

1. Remove the power switch.
2. Measure the resistance of the switch.

   Standard resistance

   RESISTANCE TESTER CONNECTION SPECIFICATION



   Tester Connection	Switch Condition	Specified Condition
   7 (SS2) - 6 (GND)	Pushed	Below 1 Ω
   5 (SS1) - 6 (GND)	Pushed	Below 1 Ω
   7 (SS2) - 6 (GND)	Released	10 kΩ or higher
   5 (SS1) - 6 (GND)	Released	10 kΩ or higher

   Fig 2: Identifying Power Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE POWER SWITCH

OK : REPLACE POWER SOURCE CONTROL ECU
