Turn Signal And Hazard Warning Light: Notes

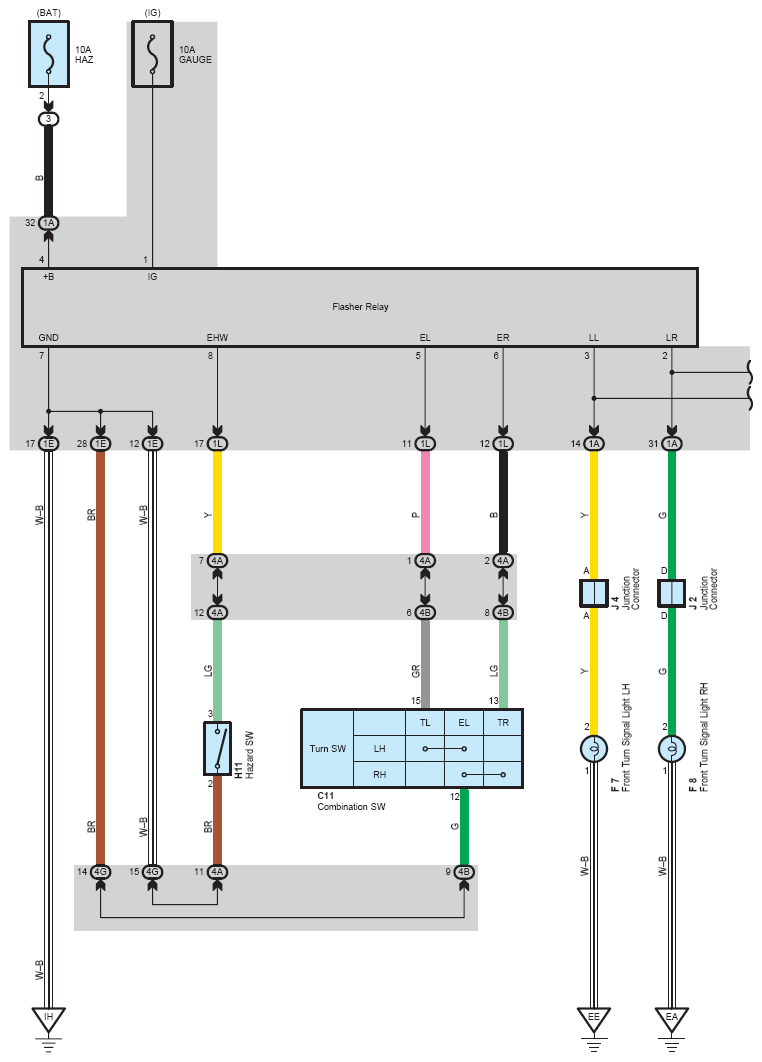

Fig 1: Turn signal and hazard warning light system wiring diagram (1 of 2)
G08866057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

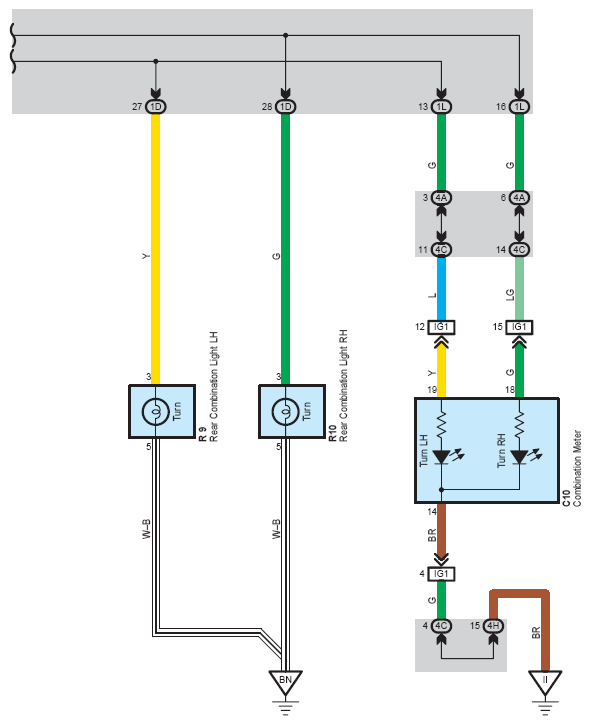

Fig 2: Turn signal and hazard warning light system wiring diagram (2 of 2)
G08866058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
